Toyota Corona YT140 RADIATOR GRILLE

YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998

Engine 2YPU

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8201-8508)

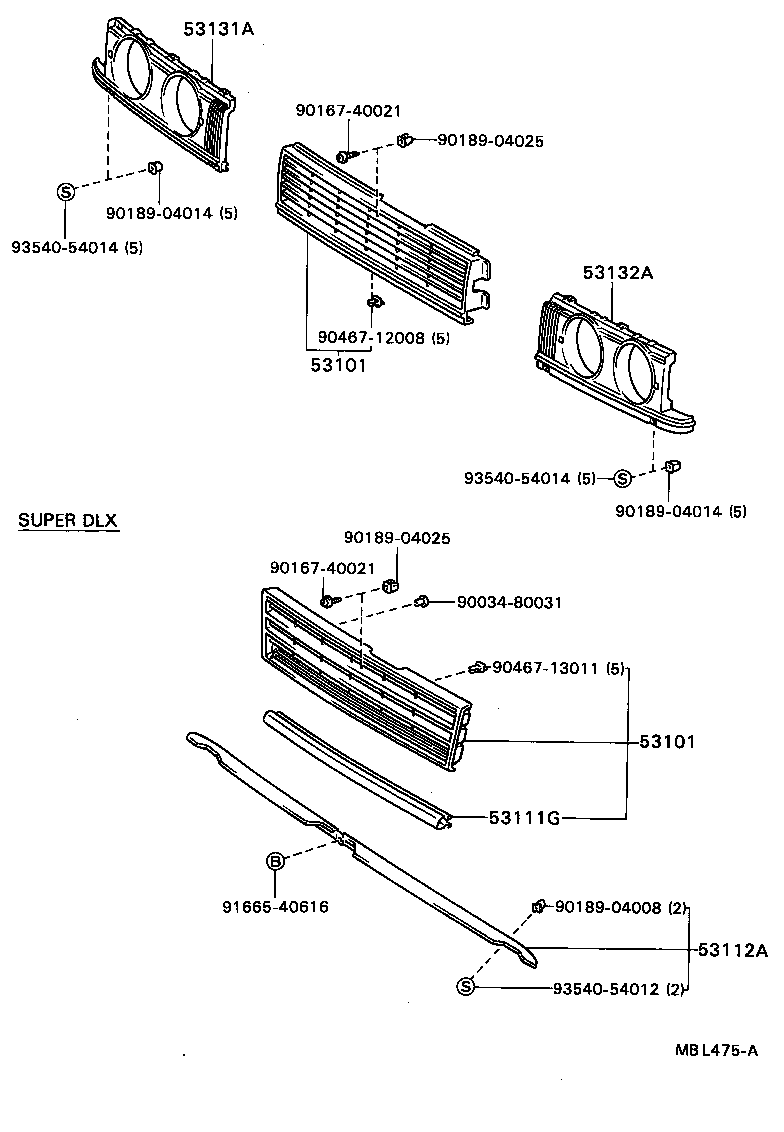

Click highlighted areas on diagram

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-20120	YT140..(3FC,5F)..DLX	09/1982 - 08/1985	1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-14120	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53122-20090	YT140..(3FC,5F)..DLX	09/1982 - 08/1985	1
53131A - DOOR, HEADLAMP, RH
53130-20010	CT141,YT140	12/1986 - 04/1998	1
53131-29325	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53131-29405	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53131-20260	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53131A - DOOR, HEADLAMP, RH
53130-20010	CT141,YT140	12/1986 - 04/1998	1
53131-29325	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53131-29405	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53131-20260	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53132A - DOOR, HEADLAMP, LH
53132-29385	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53132-29305	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53132-20230	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53140-20010	CT141,YT140	12/1986 - 04/1998	1
53132A - DOOR, HEADLAMP, LH
53132-29385	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53132-29305	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53132-20230	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53140-20010	CT141,YT140	12/1986 - 04/1998	1
Common parts
90164-40056
90167-40012
90189-04014
90189-04025
90189-04073
90430-10005
90467-12008
90467-13005
90467-13011
93530-74020

(8508-8612) ; (8612-8712)AT140,CT147,KT147,ST140

Click highlighted areas on diagram

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53131A - DOOR, HEADLAMP, RH
53130-20010	CT141,YT140	12/1986 - 04/1998	1
53131-29325	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53131-29405	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53131-20260	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53132A - DOOR, HEADLAMP, LH
53132-29385	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53132-29305	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53132-20230	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53140-20010	CT141,YT140	12/1986 - 04/1998	1
Common parts
90164-40056
90167-40012
90189-04025
90189-04073
90430-10005
90467-13011
93530-74020

(8612- )CT141,YT140

Click highlighted areas on diagram

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53101 - GRILLE SUB-ASSY, RADIATOR
53111-29155	YT140..(3FC,5F)..DLX W/MOULDING	09/1982 - 08/1985	1
53111-20390	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53111-20480	CT141,YT140	12/1986 - 04/1998	1
53111-20400	YT140..(3FC,5F)..DLX W/MOULDING	08/1985 - 12/1986	1
53111-29165	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 08/1985	1
53111-20490	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-14120	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53122-20090	YT140..(3FC,5F)..DLX	09/1982 - 08/1985	1
53112A - GRILLE, RADIATOR, LOWER
53112-14040	YT140..(3FC,5F)..DLX SUPER DLX	12/1986 - 04/1998	1
53131A - DOOR, HEADLAMP, RH
53130-20010	CT141,YT140	12/1986 - 04/1998	1
53131-29325	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53131-29405	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53131-20260	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53132A - DOOR, HEADLAMP, LH
53132-29385	CT14#,KT147,YT140..DLX,STD	04/1985 - 08/1985	1
53132-29305	CT14#,KT147,TT147,YT140..DLX,STD	01/1982 - 04/1985	1
53132-20230	CT14#,KT147,YT140..DLX,STD	08/1985 - 12/1986	1
53140-20010	CT141,YT140	12/1986 - 04/1998	1
Common parts
90034-80031
90167-40021
90189-04008
90189-04014
90189-04025
90467-12008
90467-13011
91665-40616
93540-54012
93540-54014
