YT140-TEHDP (1982)
Toyota Corona
Production
Sep 1982
-
Apr 1998
Engine
2YPU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8612)SED ; (8612-8712)AT140,ST140

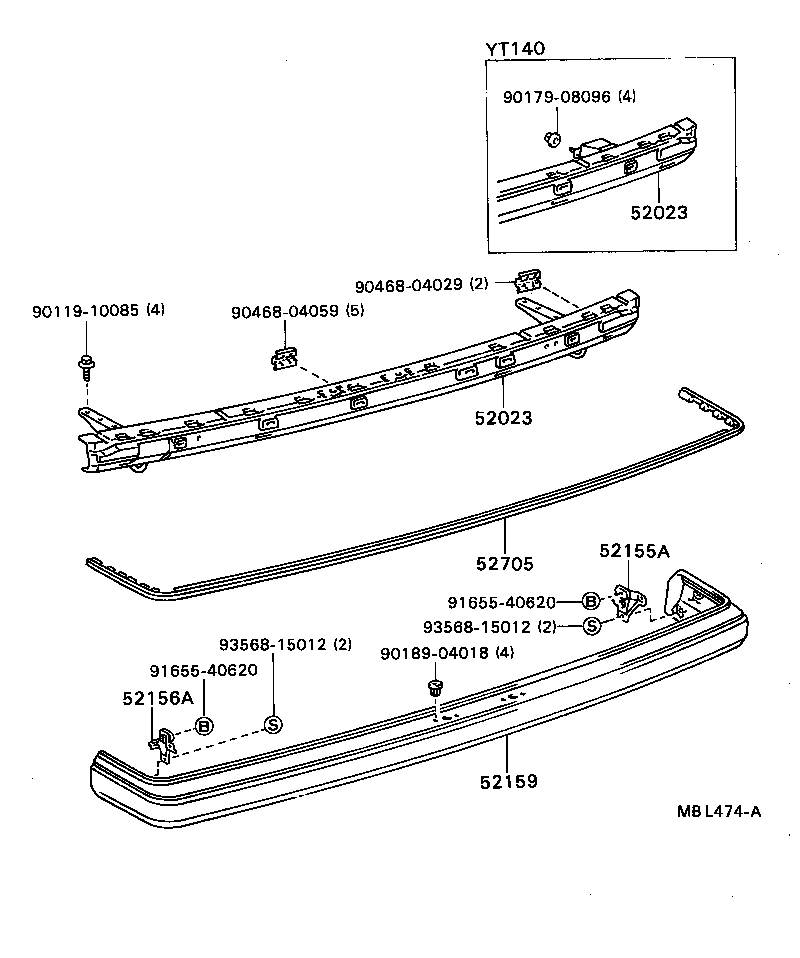

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20080 |
YT140 |
1 | ||
| 52023-20240 |
YT140 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20080 |
YT140 |
1 | ||
| 52023-20240 |
YT140 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29105 |
AT140,CT140,YT140..DLX,STD |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29105 |
AT140,CT140,YT140..DLX,STD |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29225 |
AT140,CT140,YT140..DLX,STD |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29225 |
AT140,CT140,YT140..DLX,STD |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-14081 |
CT141,YT140 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-14081 |
CT141,YT140 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-14110 |
CT141,YT140 |
1 | ||
| 52159-20090 |
YT140;AT140,CT140..STD |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52751-14040 |
YT140..(3FC,5F)..DLX SUPER DLX |
1 | ||
| 52751-14030 |
YT140..DLX |
1 | ||
| 52723 - MOULDING, REAR BUMPER EXTENSION, RH | ||||
| 52752-20021 |
YT140;AT140,CT140..STD |
1 | ||
| 52724 - MOULDING, REAR BUMPER EXTENSION, LH | ||||
| 52753-20021 |
YT140;AT140,CT140..STD |
1 | ||
| Common parts | ||||
| 90119-10085 | ||||
| 90179-06081 | ||||
| 90179-06115 | ||||
| 90179-08096 | ||||
| 90468-04029 | ||||
| 93568-15012 | ||||
(8201-8508)SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20080 |
YT140 |
1 | ||
| 52023-20240 |
YT140 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-14081 |
CT141,YT140 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-14081 |
CT141,YT140 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-14110 |
CT141,YT140 |
1 | ||
| 52159-20090 |
YT140;AT140,CT140..STD |
1 | ||
| Common parts | ||||
| 90119-06056 | ||||
| 90119-10085 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04030 | ||||
| 91655-40620 | ||||
(8612- )CT141,YT140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20080 |
YT140 |
1 | ||
| 52023-20240 |
YT140 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-20080 |
YT140 |
1 | ||
| 52023-20240 |
YT140 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-14081 |
CT141,YT140 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-14081 |
CT141,YT140 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-14110 |
CT141,YT140 |
1 | ||
| 52159-20090 |
YT140;AT140,CT140..STD |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52751-14040 |
YT140..(3FC,5F)..DLX SUPER DLX |
1 | ||
| 52751-14030 |
YT140..DLX |
1 | ||
| Common parts | ||||
| 90119-10085 | ||||
| 90179-08096 | ||||
| 90189-04018 | ||||
| 90468-04029 | ||||
| 90468-04059 | ||||
| 91655-40620 | ||||
| 93568-15012 | ||||
