YT140-TEHDP (1982)
Toyota Corona

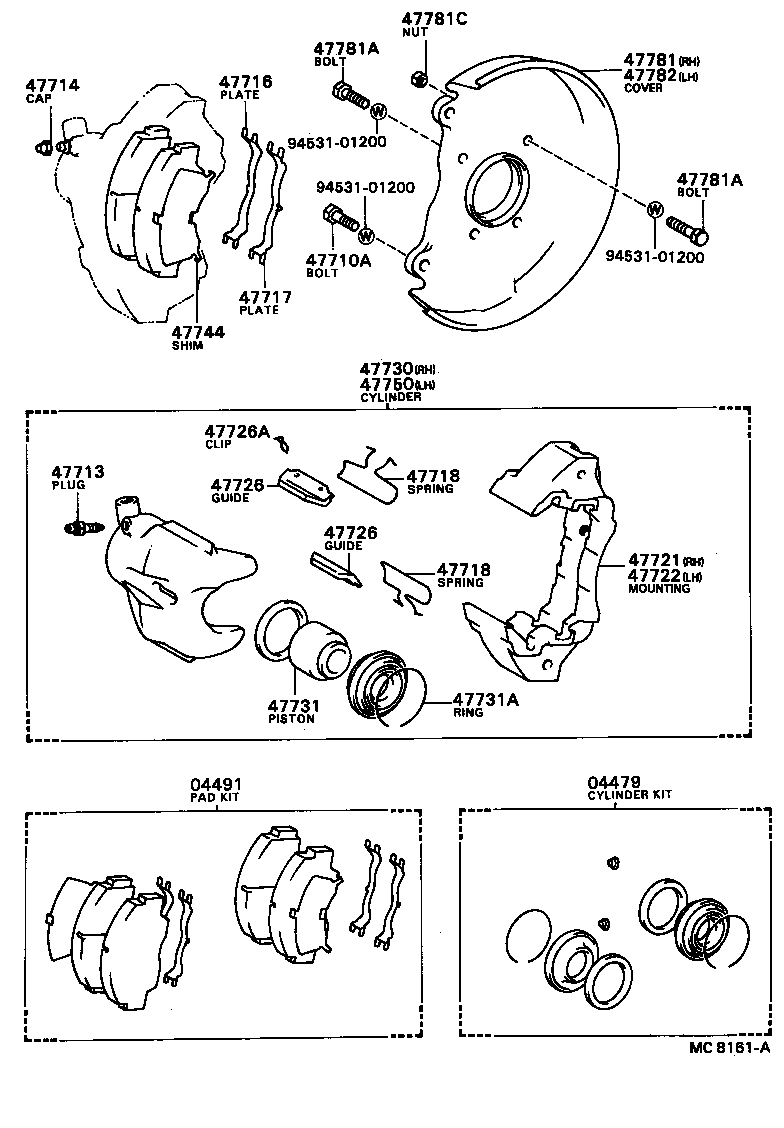

ILLUST NO. 1 OF 2(8201-8712)CT140,141,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14020 |
CT140,141,YT140..DLX,STD |
1 | ||
| 04479-20100 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20160 |
CT140,141,YT140..DLX,STD |
1 | ||
| 04491-20300 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12071 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20040 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47716-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-20010 |
CT141,YT140 VENTILATED DISC |
8 | ||
| 47717-20020 |
CT140,141,YT140 |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20020 |
CT140,141,YT140 |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20020 |
CT140,141,YT140 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20060 |
CT140,141,YT140 |
1 | ||
| 47721-20150 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20070 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47722-20060 |
CT140,141,YT140 |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20020 |
CT140,141,YT140 |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20020 |
CT140,141,YT140 |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
CT140,141,YT140 |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20140 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47730-20250 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14020 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47731-20120 |
CT141,YT140 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-62001 |
CT140,141,YT140..DLX,STD |
2 | ||
| 90522-60004 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20030 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47744-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20130 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47750-20240 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-20020 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-12066 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-12066 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94115-71200 |
CT140,141,YT140 |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-20020 |
CT140,141,YT140..DLX,STD |
1 | ||
| Common parts | ||||
| 94531-01200 | ||||

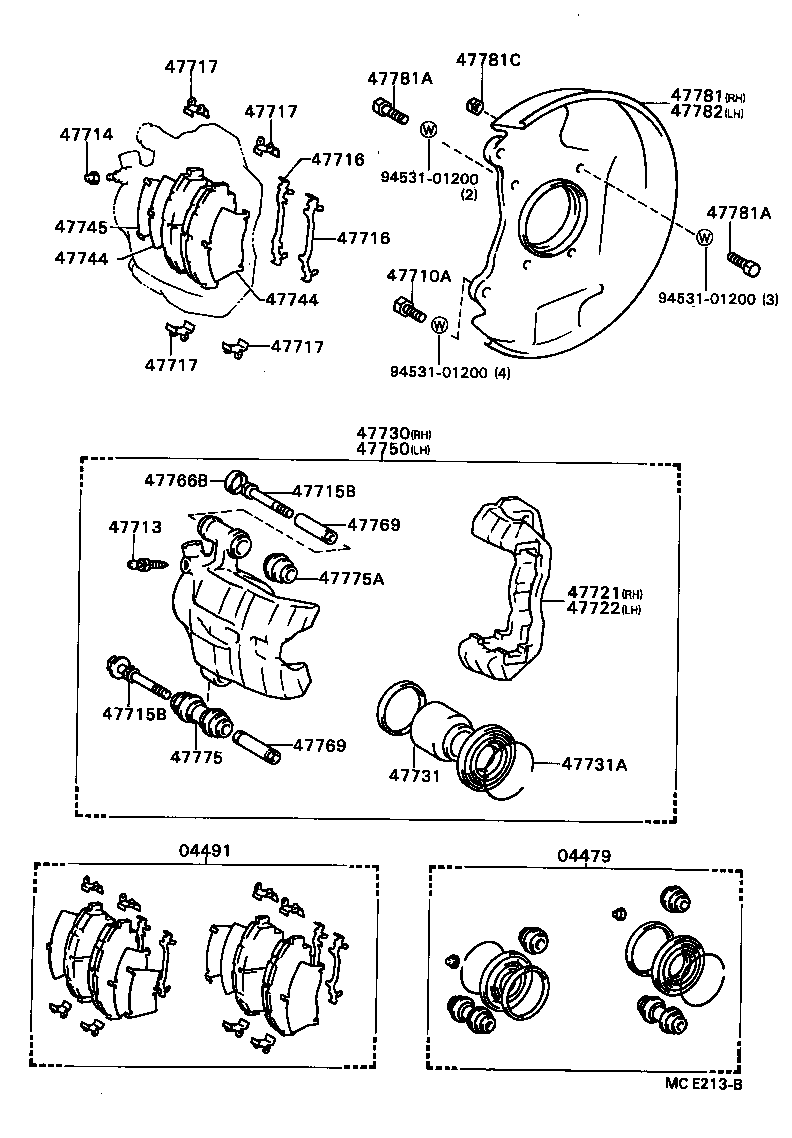

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14020 |
CT140,141,YT140..DLX,STD |
1 | ||
| 04479-20100 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20160 |
CT140,141,YT140..DLX,STD |
1 | ||
| 04491-20300 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12071 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90119-10457 |
CT141,YT140 VENTILATED DISC,LWR |
2 | ||
| 90105-10141 |
CT141,YT140 VENTILATED DISC,UPR |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90119-10457 |
CT141,YT140 VENTILATED DISC,LWR |
2 | ||
| 90105-10141 |
CT141,YT140 VENTILATED DISC,UPR |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20040 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47716-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20040 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47716-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-20010 |
CT141,YT140 VENTILATED DISC |
8 | ||
| 47717-20020 |
CT140,141,YT140 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-20010 |
CT141,YT140 VENTILATED DISC |
8 | ||
| 47717-20020 |
CT140,141,YT140 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-20010 |
CT141,YT140 VENTILATED DISC |
8 | ||
| 47717-20020 |
CT140,141,YT140 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-20010 |
CT141,YT140 VENTILATED DISC |
8 | ||
| 47717-20020 |
CT140,141,YT140 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20060 |
CT140,141,YT140 |
1 | ||
| 47721-20150 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20070 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47722-20060 |
CT140,141,YT140 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20140 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47730-20250 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14020 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47731-20120 |
CT141,YT140 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-62001 |
CT140,141,YT140..DLX,STD |
2 | ||
| 90522-60004 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20030 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47744-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20030 |
CT140,141,YT140..DLX,STD |
2 | ||
| 47744-20070 |
CT141,YT140 VENTILATED DISC |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-20030 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20130 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47750-20240 |
CT141,YT140 VENTILATED DISC |
1 | ||
| 47766B - CAP, CYLINDER SLIDE PIN | ||||
| 47766-14010 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47779-14020 |
CT141,YT140 VENTILATED DISC,UPR |
2 | ||
| 47769-20020 |
CT141,YT140 VENTILATED DISC,LWR |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47779-14020 |
CT141,YT140 VENTILATED DISC,UPR |
2 | ||
| 47769-20020 |
CT141,YT140 VENTILATED DISC,LWR |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20040 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47775A - BOOT, PIN | ||||
| 47776-20010 |
CT141,YT140 VENTILATED DISC |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-20020 |
CT140,141,YT140..DLX,STD |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-12066 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-12066 |
CT140,141,YT140..DLX,STD |
8 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94115-71200 |
CT140,141,YT140 |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-20020 |
CT140,141,YT140..DLX,STD |
1 | ||
| Common parts | ||||
| 94531-01200 | ||||
