YT140-TEHDP (1982)
Toyota Corona
ILLUST NO. 2 OF 3(8201-8612)CT14#..DLX,EXS,GX ; (8201-8612)KT147,TT147,YT140 ; (8612-8712)CT147,KT14
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-35061 |
CT147,KT147,YT140 |
1 | ||
| 45240-22090 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45240-20100 |
CT141,YT140 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CT14#,KT147,TT147,YT140 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CT14#,KT147,TT147,YT140 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
CT14#,KT147,TT147,YT140 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22040 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45242-20060 |
CT141,YT140 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45243-22040 |
CT141,YT140 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22071 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45301-20250 |
CT141,YT140 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-34001 |
CT141,YT140 |
1 | ||
| 90310-28027 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-20290 |
CT141,YT140 |
1 | ||
| 45310-14130 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45331-20091 |
CT141,YT140 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45332-20080 |
CT141,YT140 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
CT147,KT147,TT147,YT140 厚さ=2.00,T=2.00 |
1 | ||
| 45352-14020 |
CT147,KT147,TT147,YT140 厚さ=2.04,T=2.04 |
1 | ||
| 45352-14030 |
CT147,KT147,TT147,YT140 厚さ=2.08,T=2.08 |
1 | ||
| 45352-14060 |
CT147,KT147,TT147,YT140 厚さ=2.20,T=2.20 |
1 | ||
| 45352-14040 |
CT147,KT147,TT147,YT140 厚さ=2.12,T=2.12 |
1 | ||
| 45352-14050 |
CT147,KT147,TT147,YT140 厚さ=2.16,T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19225 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90105-12103 | ||||
| 90201-12452 | ||||
| 90461-08183 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

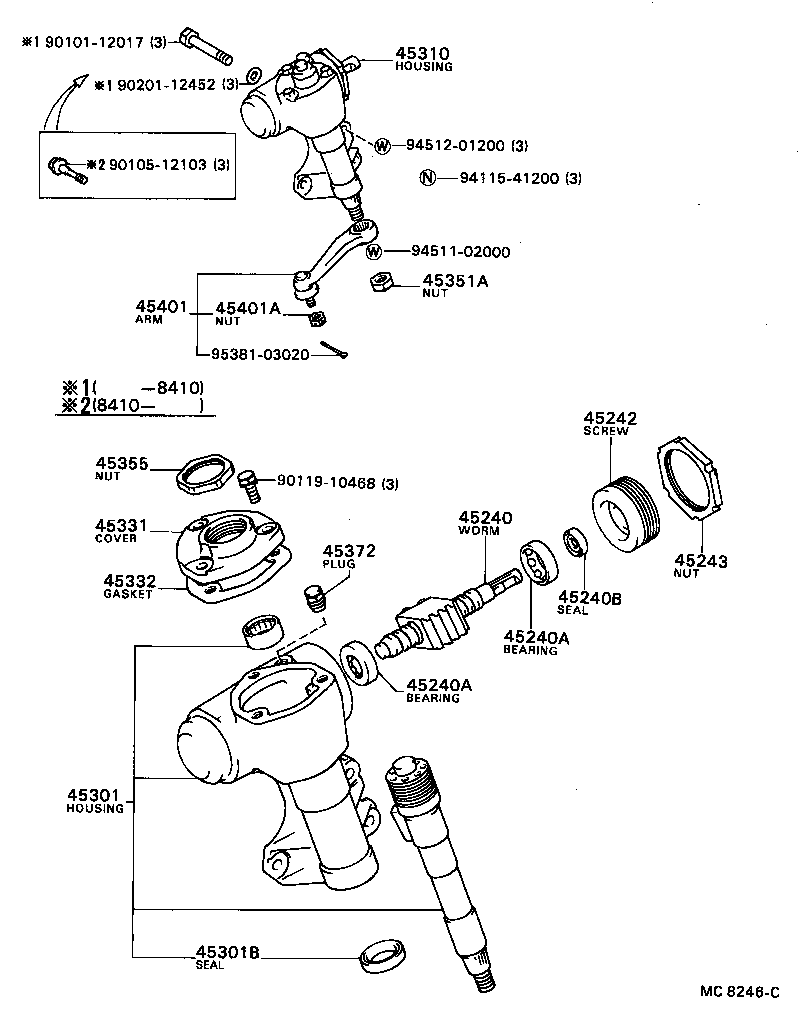

ILLUST NO. 2 OF 3(8201-8612)CT140 ; (8612- )CT141,YT140
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-35061 |
CT147,KT147,YT140 |
1 | ||
| 45240-22090 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45240-20100 |
CT141,YT140 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CT14#,KT147,TT147,YT140 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CT14#,KT147,TT147,YT140 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
CT14#,KT147,TT147,YT140 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22040 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45242-20060 |
CT141,YT140 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45243-22040 |
CT141,YT140 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22071 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45301-20250 |
CT141,YT140 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-34001 |
CT141,YT140 |
1 | ||
| 90310-28027 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-20290 |
CT141,YT140 |
1 | ||
| 45310-14130 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45331-20091 |
CT141,YT140 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
CT147,KT147,TT147,YT140 |
1 | ||
| 45332-20080 |
CT141,YT140 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45355 - NUT, SECTOR SHAFT ADJUSTING SCREW LOCK | ||||
| 45355-20020 |
CT141,YT140 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19225 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
CT140,141,KT147,TT147,YT140 |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90105-12103 | ||||
| 90119-10468 | ||||
| 90201-12452 | ||||
| 94115-41200 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

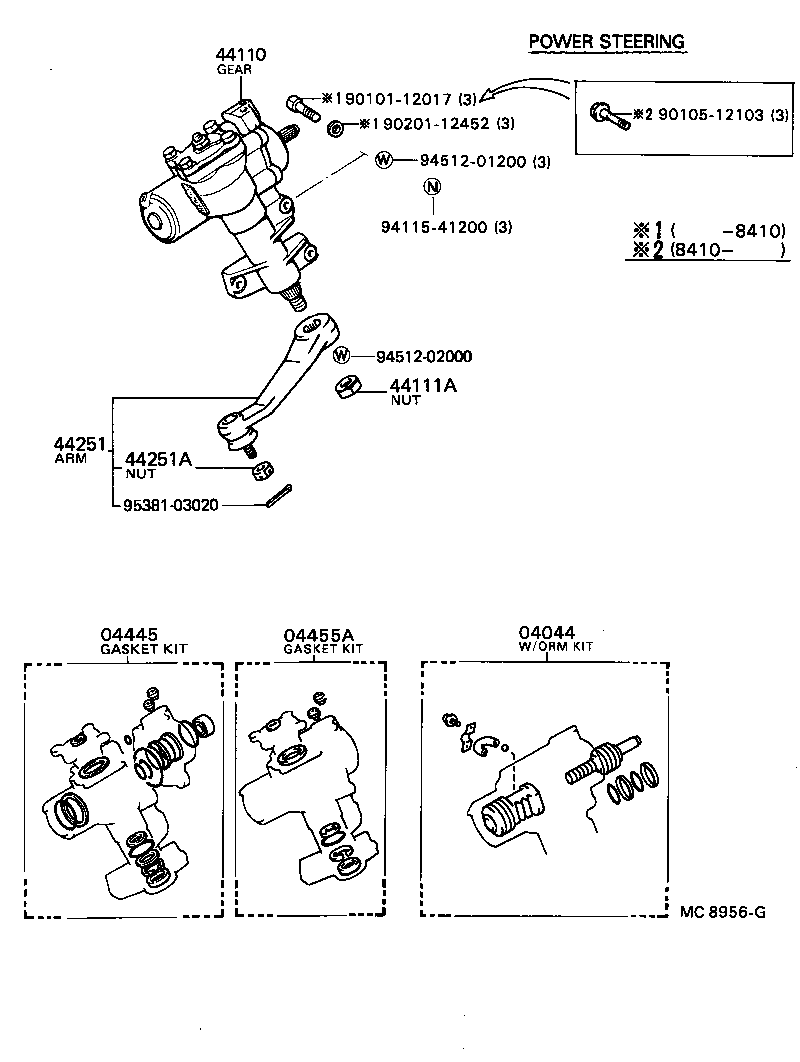

ILLUST NO. 2 OF 3(8209-8612)YT140..3FC,5F ; (8612- )ST140,YT140
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-12020 |
YT140 |
1 | ||
| 04044-12020 |
YT140..3FC,5F |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-22050 |
YT140 |
1 | ||
| 04445-22050 |
YT140..3FC,5F |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-22010 |
YT140..3FC,5F |
1 | ||
| 04455-22010 |
YT140 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-14101 |
YT140..3FC,5F |
1 | ||
| 44110-14101 |
YT140 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
YT140..3FC,5F |
1 | ||
| 90170-20147 |
YT140 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-29185 |
YT140 |
1 | ||
| 45401-29185 |
YT140..3FC,5F |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
YT140 |
1 | ||
| 90171-12028 |
YT140..3FC,5F |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90105-12103 | ||||
| 90201-12452 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03020 | ||||
ILLUST NO. 3 OF 3(8209- )ST140,YT140
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
YT140..3FC,5F |
1 | ||
| 90201-30003 |
YT140 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
YT140 |
2 | ||
| 90301-44001 |
YT140..3FC,5F |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
YT140 |
2 | ||
| 90301-44001 |
YT140..3FC,5F |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
YT140..3FC,5F |
1 | ||
| 90374-30003 |
YT140 |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
YT140..3FC,5F |
2 | ||
| 90562-47002 |
YT140 |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
YT140..3FC,5F |
2 | ||
| 90562-47002 |
YT140 |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-22040 |
YT140..3FC,5F |
1 | ||
| 44105-22040 |
YT140 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
YT140..3FC,5F |
1 | ||
| 90301-32002 |
YT140 |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
YT140..3FC,5F |
1 | ||
| 90562-30002 |
YT140 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
YT140..3FC,5F |
2 | ||
| 90410-06006 |
YT140 |
2 | ||
| 90410-06006 |
YT140..3FC,5F |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
YT140..3FC,5F |
2 | ||
| 90410-06006 |
YT140 |
2 | ||
| 90410-06006 |
YT140..3FC,5F |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
YT140..3FC,5F |
2 | ||
| 90410-06006 |
YT140 |
2 | ||
| 90410-06006 |
YT140..3FC,5F |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-22030 |
YT140..3FC,5F |
1 | ||
| 44107-22030 |
YT140 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
YT140..3FC,5F |
2 | ||
| 90364-30002 |
YT140 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
YT140..3FC,5F |
2 | ||
| 90364-30002 |
YT140 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-32001 |
YT140 内径=31.7,外径=38.7 |
1 | ||
| 96711-19010 |
YT140..3FC,5F 外径=13.6,内径=9.8 |
1 | ||
| 90301-32001 |
YT140..3FC,5F 内径=31.7,外径=38.7 |
1 | ||
| 90301-62002 |
YT140 内径=62.5,外径=66.5 |
1 | ||
| 96711-19010 |
YT140 外径=13.6,内径=9.8 |
1 | ||
| 90301-62002 |
YT140..3FC,5F 内径=62.5,外径=66.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-32001 |
YT140 内径=31.7,外径=38.7 |
1 | ||
| 96711-19010 |
YT140..3FC,5F 外径=13.6,内径=9.8 |
1 | ||
| 90301-32001 |
YT140..3FC,5F 内径=31.7,外径=38.7 |
1 | ||
| 90301-62002 |
YT140 内径=62.5,外径=66.5 |
1 | ||
| 96711-19010 |
YT140 外径=13.6,内径=9.8 |
1 | ||
| 90301-62002 |
YT140..3FC,5F 内径=62.5,外径=66.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-32001 |
YT140 内径=31.7,外径=38.7 |
1 | ||
| 96711-19010 |
YT140..3FC,5F 外径=13.6,内径=9.8 |
1 | ||
| 90301-32001 |
YT140..3FC,5F 内径=31.7,外径=38.7 |
1 | ||
| 90301-62002 |
YT140 内径=62.5,外径=66.5 |
1 | ||
| 96711-19010 |
YT140 外径=13.6,内径=9.8 |
1 | ||
| 90301-62002 |
YT140..3FC,5F 内径=62.5,外径=66.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-29001 |
YT140..3FC,5F 内径=29.9,外径=32.3 |
1 | ||
| 90562-29001 |
YT140 内径=29.9,外径=32.3 |
1 | ||
| 90562-30001 |
YT140 内径=30.1,外径=38.0 |
1 | ||
| 90562-30001 |
YT140..3FC,5F 内径=30.1,外径=38.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-29001 |
YT140..3FC,5F 内径=29.9,外径=32.3 |
1 | ||
| 90562-29001 |
YT140 内径=29.9,外径=32.3 |
1 | ||
| 90562-30001 |
YT140 内径=30.1,外径=38.0 |
1 | ||
| 90562-30001 |
YT140..3FC,5F 内径=30.1,外径=38.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
YT140..3FC,5F |
1 | ||
| 90521-41001 |
YT140 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
YT140 |
1 | ||
| 90312-30001 |
YT140..3FC,5F |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
YT140 |
1 | ||
| 44108-22020 |
YT140..3FC,5F |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
YT140..3FC,5F |
1 | ||
| 90301-58001 |
YT140 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
YT140 |
1 | ||
| 44111-22030 |
YT140..3FC,5F |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-58001 |
YT140..3FC,5F |
1 | ||
| 90562-58001 |
YT140 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-53001 |
YT140..3FC,5F |
1 | ||
| 90301-53001 |
YT140 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
YT140 |
44 | ||
| 90360-06021 |
YT140..3FC,5F |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-20010 |
YT140 |
2 | ||
| 44115-20010 |
YT140..3FC,5F |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-20010 |
YT140 |
1 | ||
| 44116-20010 |
YT140..3FC,5F |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
YT140..3FC,5F |
1 | ||
| 44104-22011 |
ST140,YT140 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
YT140..3FC,5F |
1 | ||
| 90301-51001 |
YT140 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
YT140..3FC,5F |
1 | ||
| 90311-19002 |
YT140 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
YT140..3FC,5F |
1 | ||
| 90369-22004 |
YT140 |
1 | ||
| 90369-22004 |
YT140..3FC,5F |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
YT140..3FC,5F |
1 | ||
| 44142-22010 |
YT140 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
YT140..3FC,5F |
1 | ||
| 44142-22020 |
YT140 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-12011 |
YT140..3FC,5F |
1 | ||
| 44120-12011 |
YT140 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
YT140 |
1 | ||
| 45357-22010 |
YT140..3FC,5F |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
YT140 |
1 | ||
| 90210-10001 |
YT140..3FC,5F |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94521-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
