YT140-TEHDP (1982)
Toyota Corona
Production
Sep 1982
-
Apr 1998
Engine
2YPU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8209- )YT140

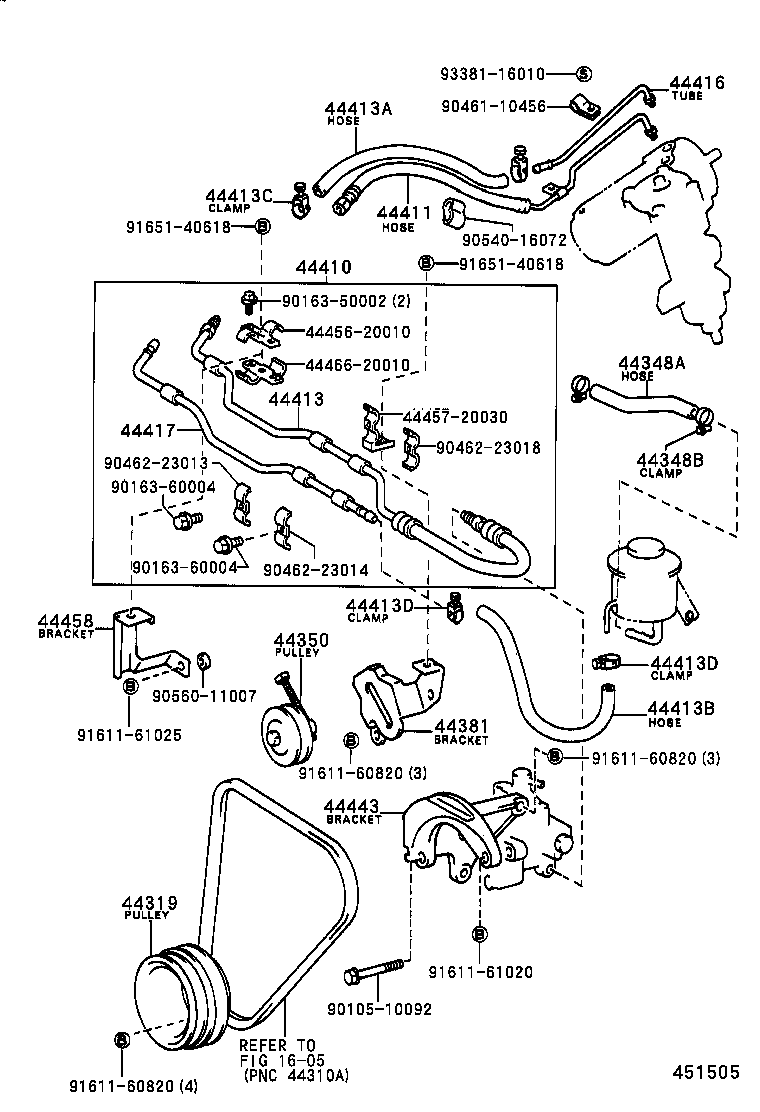

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-20010 |
YT140 |
1 | ||
| 44319-20010 |
YT140..3FC,5F |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20061 |
YT140 |
1 | ||
| 44348-20061 |
YT140..3FC,5F |
1 | ||
| 44348-20060 |
YT140..3FC,5F |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
YT140 |
2 | ||
| 90460-26001 |
YT140..3FC,5F |
2 | ||
| 90460-26001 |
ST140,YT140 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20040 |
YT140..3FC,5F |
1 | ||
| 44350-20040 |
YT140 |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-20010 |
YT140..3FC,5F |
1 | ||
| 44381-20010 |
YT140 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-20070 |
YT140 |
1 | ||
| 44410-20070 |
YT140..3FC,5F |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20080 |
YT140..3FC,5F |
1 | ||
| 44411-20080 |
YT140 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-20040 |
YT140..3FC,5F |
1 | ||
| 44413-20040 |
YT140 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18093 |
YT140 |
2 | ||
| 90445-18093 |
YT140..3FC,5F |
2 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-20080 |
YT140 |
1 | ||
| 44412-20080 |
YT140..3FC,5F |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
YT140 |
2 | ||
| 90467-16008 |
YT140 |
2 | ||
| 90460-01001 |
YT140..3FC,5F |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
YT140 |
2 | ||
| 90467-16008 |
YT140 |
2 | ||
| 90460-01001 |
YT140..3FC,5F |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
YT140 |
2 | ||
| 90467-16008 |
YT140 |
2 | ||
| 90460-01001 |
YT140..3FC,5F |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20060 |
YT140..3FC,5F |
1 | ||
| 44416-20060 |
YT140 |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-20010 |
YT140..3FC,5F |
1 | ||
| 44417-20010 |
YT140 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28011 |
YT140 |
1 | ||
| 44443-28011 |
YT140..3FC,5F |
1 | ||
| 44458 - BRACKET, TUBE SUPPORT, NO.2 | ||||
| 44458-20010 |
YT140..3FC,5F |
1 | ||
| 44458-20010 |
YT140 |
1 | ||
| Common parts | ||||
| 44456-20010 | ||||
| 44457-20030 | ||||
| 44466-20010 | ||||
| 90105-10092 | ||||
| 90163-50002 | ||||
| 90163-60004 | ||||
| 90461-10456 | ||||
| 90462-23013 | ||||
| 90462-23014 | ||||
| 90462-23018 | ||||
| 90540-16072 | ||||
| 90560-11007 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-40618 | ||||
| 93381-16010 | ||||
| Linked diagrams | ||||
| 1605 | ||||
