YT140-TEHDP (1982)
Toyota Corona
(8209- )YT140

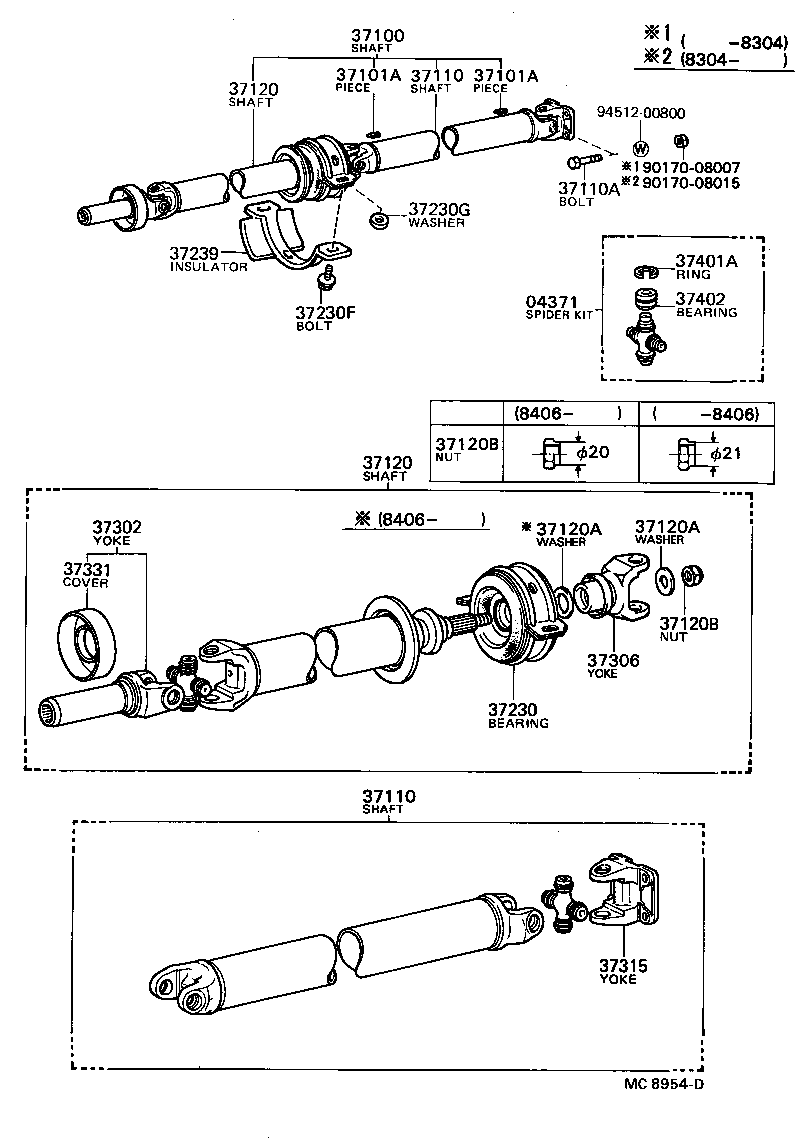

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-22010 |
YT140 |
3 | ||
| 04371-22020 |
YT140 RED PAINTED |
3 | ||
| 04371-22010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-20260 |
YT140 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20G,長さ=41.4,20G |
2 | ||
| 90937-01153 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 16G,長さ=33.2,16G |
2 | ||
| 90937-01157 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 26G,長さ=53.9,26G |
2 | ||
| 90937-01140 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30G,長さ=62.2,30G |
2 | ||
| 90937-01156 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 24G,長さ=49.7,24G |
2 | ||
| 90937-01149 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 6G,長さ=12.4,6G |
2 | ||
| 90937-01154 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 18G,長さ=37.3,18G |
2 | ||
| 90937-01147 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 2G,厚さ=2.0,2G |
2 | ||
| 90937-01152 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14G,長さ=29.0,14G |
2 | ||
| 90937-01158 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 28G,長さ=58.1,28G |
2 | ||
| 90937-01132 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 10G,長さ=20.7,10G |
2 | ||
| 90937-01150 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 8G,長さ=16.6,8G |
2 | ||
| 90937-01148 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 4G,厚さ=2.0,4G |
2 | ||
| 90937-01312 |
AT140,CT14#,KT147,ST140,YT140 5G,5G |
1 | ||
| 90937-01155 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 22G,長さ=45.6,22G |
2 | ||
| 90937-01313 |
AT140,CT14#,KT147,ST140,YT140 7G,長さ=14.4,7G |
1 | ||
| 90937-01314 |
AT140,CT14#,KT147,ST140,YT140 9G,長さ=18.5,9G |
1 | ||
| 90937-01311 |
AT140,CT14#,KT147,ST140,YT140 3G,3G |
1 | ||
| 90937-01151 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12G,長さ=24.9,12G |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20G,長さ=41.4,20G |
2 | ||
| 90937-01153 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 16G,長さ=33.2,16G |
2 | ||
| 90937-01157 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 26G,長さ=53.9,26G |
2 | ||
| 90937-01140 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30G,長さ=62.2,30G |
2 | ||
| 90937-01156 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 24G,長さ=49.7,24G |
2 | ||
| 90937-01149 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 6G,長さ=12.4,6G |
2 | ||
| 90937-01154 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 18G,長さ=37.3,18G |
2 | ||
| 90937-01147 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 2G,厚さ=2.0,2G |
2 | ||
| 90937-01152 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14G,長さ=29.0,14G |
2 | ||
| 90937-01158 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 28G,長さ=58.1,28G |
2 | ||
| 90937-01132 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 10G,長さ=20.7,10G |
2 | ||
| 90937-01150 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 8G,長さ=16.6,8G |
2 | ||
| 90937-01148 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 4G,厚さ=2.0,4G |
2 | ||
| 90937-01312 |
AT140,CT14#,KT147,ST140,YT140 5G,5G |
1 | ||
| 90937-01155 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 22G,長さ=45.6,22G |
2 | ||
| 90937-01313 |
AT140,CT14#,KT147,ST140,YT140 7G,長さ=14.4,7G |
1 | ||
| 90937-01314 |
AT140,CT14#,KT147,ST140,YT140 9G,長さ=18.5,9G |
1 | ||
| 90937-01311 |
AT140,CT14#,KT147,ST140,YT140 3G,3G |
1 | ||
| 90937-01151 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12G,長さ=24.9,12G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20340 |
YT140 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20340 |
YT140 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
8 | ||
| 90101-08082 |
AT14#,CT14#,KT147,ST140,TT14#,YT140 *8−1.25PX25−12 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20200 |
YT140 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20200 |
YT140 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
AT14#,CT14#,ST140,TT142,YT140 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
AT14#,CT14#,ST140,TT142,YT140 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
1 | ||
| 90179-18009 |
AT14#,CT140,141,ST140,TT142,YT140 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
1 | ||
| 90179-18009 |
AT14#,CT140,141,ST140,TT142,YT140 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
AT14#,CT14#,RT141,ST140,YT140 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10008 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=4.5 |
2 | ||
| 90201-10010 |
AT14#,CT14#,RT141,ST140,TT142,YT140 厚さ=12.0,T=12.0 |
2 | ||
| 90201-10033 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=6.5 |
2 | ||
| 90201-10017 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=9.0 |
2 | ||
| 37239 - INSULATOR, CENTER SUPPORT BEARING HEAT | ||||
| 37239-14050 |
AT141,TT142,YT140 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-20040 |
CT140,147,YT140;AT140,KT147,ST140,TT147..ATM |
1 | ||
| 37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER | ||||
| 37306-20011 |
YT140 |
1 | ||
| 37306-20010 |
YT140 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
CT140,147,RT141,YT140;AT140,KT147,ST140,TT14#..ATM |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29070 |
AT140,CT14#,KT147,ST140,TT147,YT140 厚さ=2.375−2.425,T=2.375-2.425 |
12 | ||
| 90521-29073 |
AT140,CT14#,KT147,ST140,TT147,YT140 厚さ=2.525−2.575,T=2.525-2.575 |
12 | ||
| 90521-29072 |
AT140,CT14#,KT147,ST140,TT147,YT140 厚さ=2.475−2.525,T=2.475-2.525 |
12 | ||
| 90521-29071 |
AT140,CT14#,KT147,ST140,TT147,YT140 厚さ=2.425−2.475,T=2.425-2.475 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
12 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
(8201-9111)AT14#,CT14#,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX ; (8210-8508
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-20260 |
YT140 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20G,長さ=41.4,20G |
2 | ||
| 90937-01153 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 16G,長さ=33.2,16G |
2 | ||
| 90937-01157 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 26G,長さ=53.9,26G |
2 | ||
| 90937-01140 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30G,長さ=62.2,30G |
2 | ||
| 90937-01156 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 24G,長さ=49.7,24G |
2 | ||
| 90937-01149 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 6G,長さ=12.4,6G |
2 | ||
| 90937-01154 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 18G,長さ=37.3,18G |
2 | ||
| 90937-01147 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 2G,厚さ=2.0,2G |
2 | ||
| 90937-01152 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14G,長さ=29.0,14G |
2 | ||
| 90937-01158 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 28G,長さ=58.1,28G |
2 | ||
| 90937-01132 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 10G,長さ=20.7,10G |
2 | ||
| 90937-01150 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 8G,長さ=16.6,8G |
2 | ||
| 90937-01148 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 4G,厚さ=2.0,4G |
2 | ||
| 90937-01312 |
AT140,CT14#,KT147,ST140,YT140 5G,5G |
1 | ||
| 90937-01155 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 22G,長さ=45.6,22G |
2 | ||
| 90937-01313 |
AT140,CT14#,KT147,ST140,YT140 7G,長さ=14.4,7G |
1 | ||
| 90937-01314 |
AT140,CT14#,KT147,ST140,YT140 9G,長さ=18.5,9G |
1 | ||
| 90937-01311 |
AT140,CT14#,KT147,ST140,YT140 3G,3G |
1 | ||
| 90937-01151 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12G,長さ=24.9,12G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20340 |
YT140 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20340 |
YT140 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
8 | ||
| 90101-08082 |
AT14#,CT14#,KT147,ST140,TT14#,YT140 *8−1.25PX25−12 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
8 | ||
| 90101-08082 |
AT14#,CT14#,KT147,ST140,TT14#,YT140 *8−1.25PX25−12 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20200 |
YT140 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20200 |
YT140 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
AT14#,CT14#,ST140,TT142,YT140 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
AT14#,CT14#,ST140,TT142,YT140 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
1 | ||
| 90179-18009 |
AT14#,CT140,141,ST140,TT142,YT140 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
1 | ||
| 90179-18009 |
AT14#,CT140,141,ST140,TT142,YT140 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
AT14#,CT14#,RT141,ST140,YT140 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AT14#,CT14#,RT141,ST140,TT142,YT140 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10008 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=4.5 |
2 | ||
| 90201-10010 |
AT14#,CT14#,RT141,ST140,TT142,YT140 厚さ=12.0,T=12.0 |
2 | ||
| 90201-10033 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=6.5 |
2 | ||
| 90201-10017 |
AT14#,CT14#,RT141,ST140,YT140 厚さ=9.0 |
2 | ||
| 37239 - INSULATOR, CENTER SUPPORT BEARING HEAT | ||||
| 37239-14050 |
AT141,TT142,YT140 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
AT14#,CT14#,ST140,TT142,YT140 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
AT14#,CT14#,ST140,TT142,YT140 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
CT140,147,RT141,YT140;AT140,KT147,ST140,TT14#..ATM |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
