YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8209- )YT140..3FC

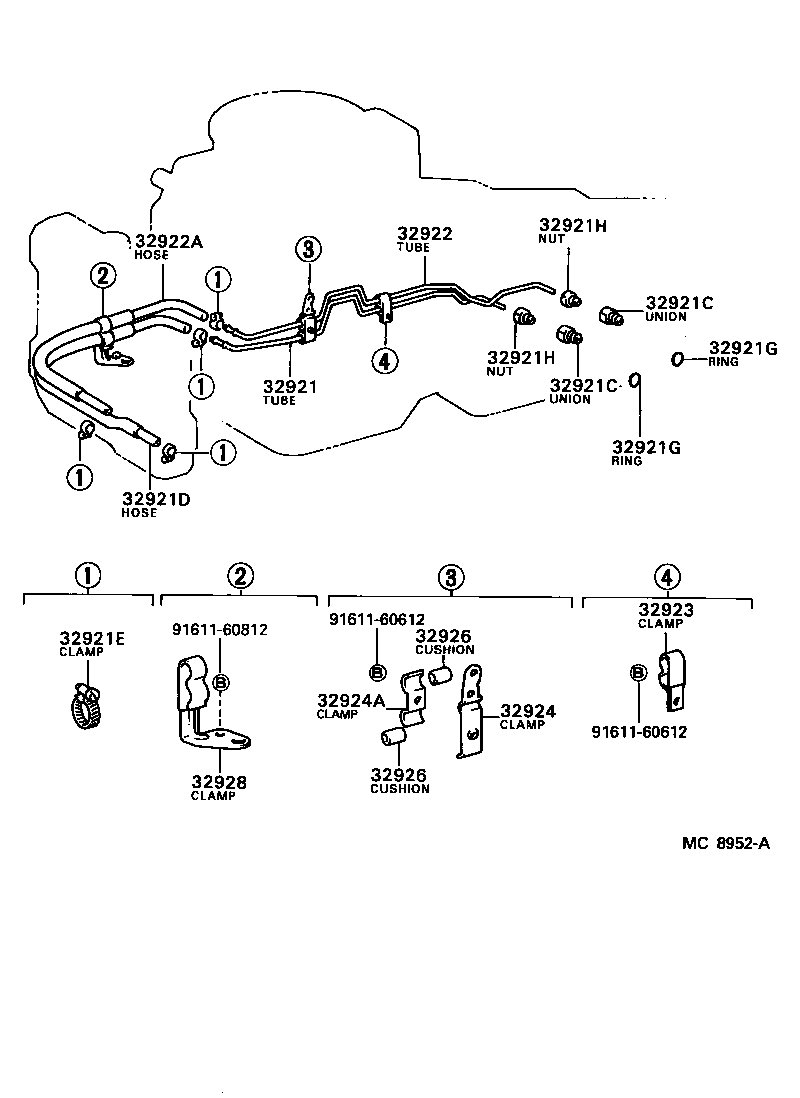

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921E 32921G 32921G 32921H 32921H 32922 32922A 32923 32924 32924A 32926 32926 32928 9161160612 9161160612 9161160812
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20270

YT140..3FC

 1
32921-14190

YT140..3FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14021

YT140..3FC

 2
90404-14007

TT147,YT140..3FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14021

YT140..3FC

 2
90404-14007

TT147,YT140..3FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-20090

YT140..3FC

 1
32941-14013

TT14#,YT140..ATM

 1
32941-20120

YT140..3FC

 1
32941-20091

YT140..3FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

AT140,CT140,ST140,TT14#,YT140..ATM

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

AT140,CT140,ST140,TT14#,YT140..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-14190

YT140..3FC

 1
32922-20300

YT140..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-14013

TT14#,YT140..ATM

L=590

 1
32942-14013

TT14#,YT140..ATM..(DLX,GX,SX)

L=590

 1
32942-20030

YT140..3FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08070

YT140..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-20050

YT140..3FC

 1
32924-20060

YT140..3FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12085

AT140,TT14#,YT140..ATM

 1
90462-12085

TT14#,YT140..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

長さ=25,内径=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

長さ=25,内径=8

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90462-06007

CT140,KT147,TT14#,YT140..ATM

 1
Common parts
91611-60612
91611-60812
