YT140-TEHDP (1982)
Toyota Corona

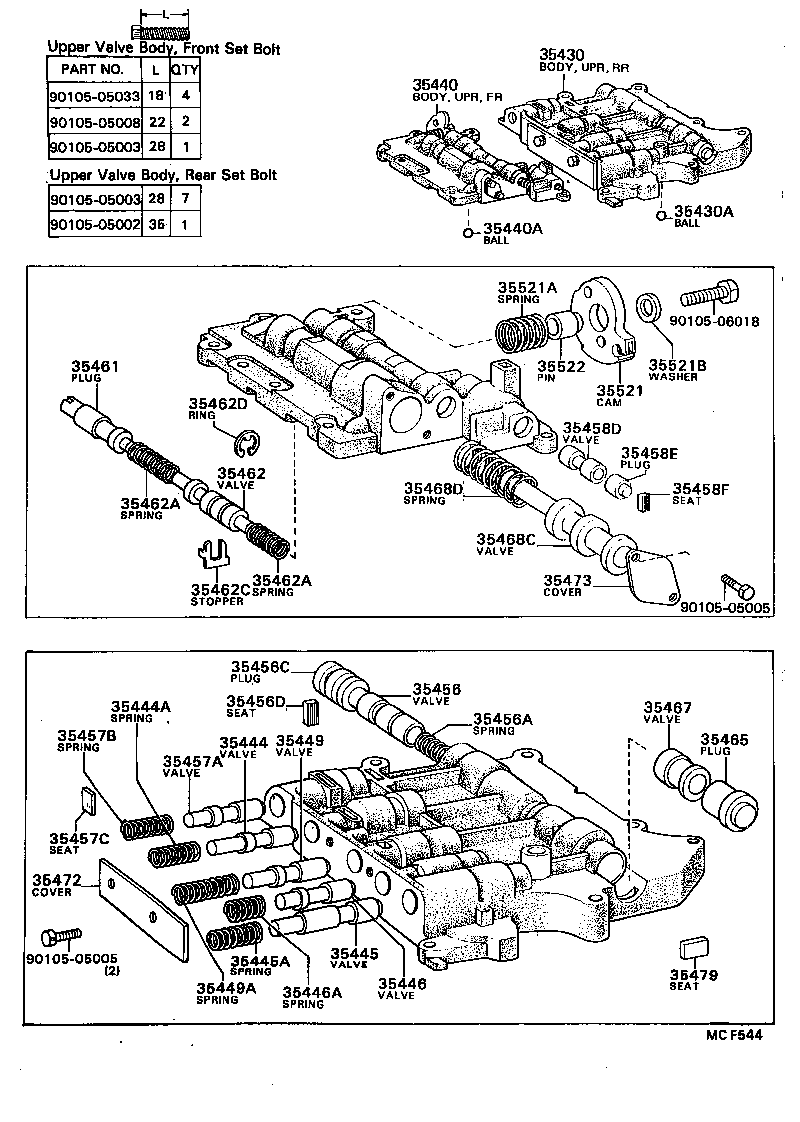

ILLUST NO. 1 OF 2(8201-8708)3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-20020 |
YT140..3FC |
1 | ||
| 35430-27010 |
YT140..3FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.56,STEEL,OD=5.56,STEEL |
1 | ||
| 35495-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
4 | ||
| 35495-22020 |
YT140..3FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
4 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22031 |
AT140,KT147,TT147,YT140..3FC |
1 | ||
| 35440-22090 |
YT140 |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22020 |
YT140..3FC 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35495-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
AT140,KT147,YT140..3FC |
1 | ||
| 90501-11001 |
AT140,CT140,KT147,TT147,YT140..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
AT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
AT140,ST140,TT14#,YT140..ATM |
1 | ||
| 90501-07688 |
AT140,KT147,ST140,YT140..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35449-22010 |
AT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) LWR VALVE BODY |
1 | ||
| 35447-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM UPR VALVE BODY |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12055 |
YT140..3FC UPR VALVE BODY |
1 | ||
| 90501-12726 |
YT140..3FC LWR VALVE BODY |
1 | ||
| 90501-12726 |
AT140,KT147,YT140..3FC LWR VALVE BODY |
1 | ||
| 90501-12055 |
AT140,KT147,YT140..3FC UPR VALVE BODY |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09739 |
ST140,YT140..ATM |
1 | ||
| 90501-09739 |
AT140,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 90501-09739 |
AT140,ST140,TT14#,YT140..ATM |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
AT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AT140,ST140,TT14#,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12011 |
AT140,KT147,ST140,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12077 |
YT140..3FC 長さ=39.76,PRIMARY |
1 | ||
| 90501-07680 |
AT140,CT140,ST140,TT14#,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-07680 |
AT140,KT147,ST140,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AT140,ST140,TT14#,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12011 |
AT140,KT147,ST140,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12077 |
YT140..3FC 長さ=39.76,PRIMARY |
1 | ||
| 90501-07680 |
AT140,CT140,ST140,TT14#,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-07680 |
AT140,KT147,ST140,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
6 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-16683 |
AT140,KT147,TT147,YT140..3FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 90101-05415 | ||||
| 90101-05417 | ||||
| 90101-05418 | ||||
| 90101-05420 | ||||
| 90101-05447 | ||||
| 90101-06446 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
ILLUST NO. 1 OF 2(8708- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-20020 |
YT140..3FC |
1 | ||
| 35430-27010 |
YT140..3FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.56,STEEL,OD=5.56,STEEL |
1 | ||
| 35495-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
4 | ||
| 35495-22020 |
YT140..3FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
4 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22031 |
AT140,KT147,TT147,YT140..3FC |
1 | ||
| 35440-22090 |
YT140 |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22020 |
YT140..3FC 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35495-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
AT140,KT147,YT140..3FC |
1 | ||
| 90501-11001 |
AT140,CT140,KT147,TT147,YT140..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
AT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
AT140,ST140,TT14#,YT140..ATM |
1 | ||
| 90501-07688 |
AT140,KT147,ST140,YT140..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35449-22010 |
AT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) LWR VALVE BODY |
1 | ||
| 35447-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM UPR VALVE BODY |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12055 |
YT140..3FC UPR VALVE BODY |
1 | ||
| 90501-12726 |
YT140..3FC LWR VALVE BODY |
1 | ||
| 90501-12726 |
AT140,KT147,YT140..3FC LWR VALVE BODY |
1 | ||
| 90501-12055 |
AT140,KT147,YT140..3FC UPR VALVE BODY |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09739 |
ST140,YT140..ATM |
1 | ||
| 90501-09739 |
AT140,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 90501-09739 |
AT140,ST140,TT14#,YT140..ATM |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
AT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AT140,ST140,TT14#,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12011 |
AT140,KT147,ST140,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12077 |
YT140..3FC 長さ=39.76,PRIMARY |
1 | ||
| 90501-07680 |
AT140,CT140,ST140,TT14#,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-07680 |
AT140,KT147,ST140,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
AT140,ST140,TT14#,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12011 |
AT140,KT147,ST140,YT140..ATM 長さ=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12077 |
YT140..3FC 長さ=39.76,PRIMARY |
1 | ||
| 90501-07680 |
AT140,CT140,ST140,TT14#,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 90501-07680 |
AT140,KT147,ST140,YT140..ATM 長さ=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
6 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-16683 |
AT140,KT147,TT147,YT140..3FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
AT140,CT140,KT147,TT14#,YT140..ATM..(DLX,EXS,GTT,GX) |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05008 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
