YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998
Engine 2YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8209- )YT140..3FC

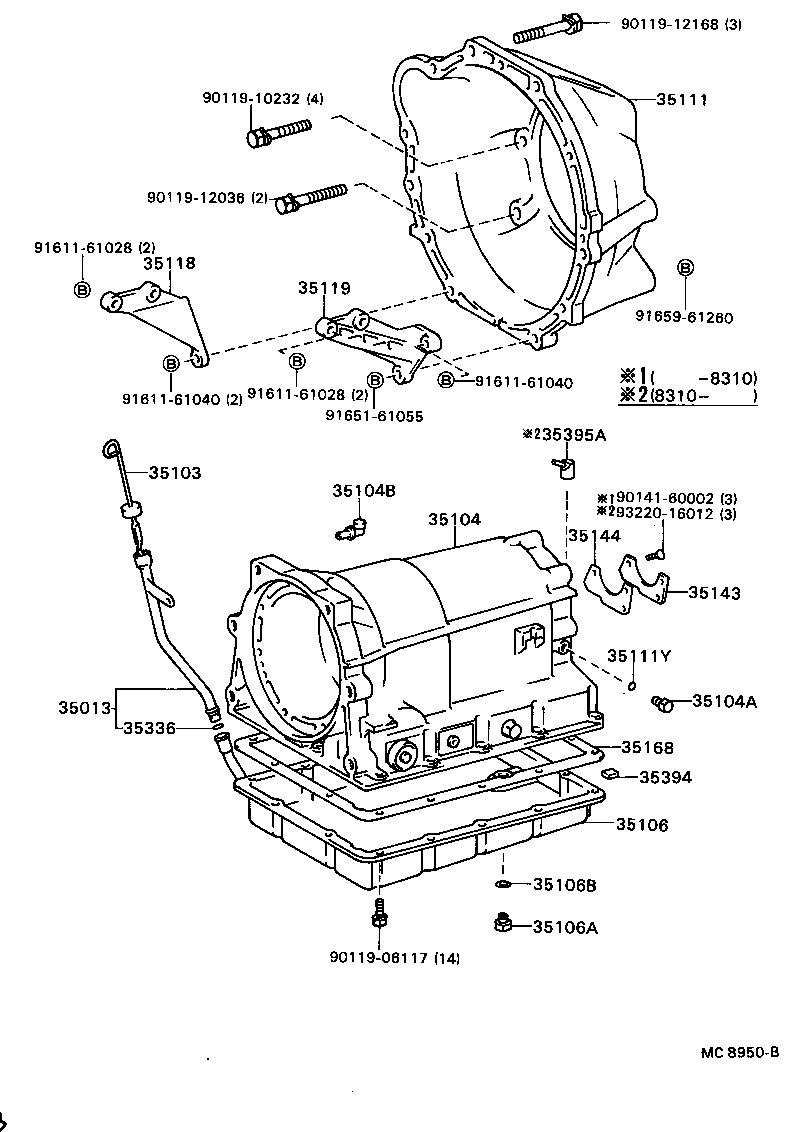

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35118 35119 35143 35144 35168 35336 35394 35395A 9011906117 9011910232 9011912036 9011912168 9014160002 9161161028 9161161028 9161161040 9161161040 9165161055 9165961260 9322016012
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-20140

YT140..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14022

TT147,YT140..3FC

 1
35103-14023

TT147,YT140..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22025

AT140,KT147,TT147,YT140..3FC

 1
35104-22026

AT140,KT147,YT140..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
90930-03108

AT140,KT147,ST140,YT140

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

KT147,TT147,YT140..3FC

 1
35106-22021

YT140..3FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

AT140,CT140,ST140,TT14#,YT140..ATM

 1
90341-10006

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-27010

YT140..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-28010

YT140..3FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-28010

YT140..3FC

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35144-28010

YT140..3FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35395A - STRAINER, GOVERNOR OIL
35395-40010

AT140,KT147,ST140,TT142,YT140..ATM

 1
Common parts
90119-06117
90119-10232
90119-12036
90119-12168
90141-60002
91611-61028
91611-61040
91651-61055
91659-61260
93220-16012
