YT140-TEHDP (1982)
Toyota Corona
(8908- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20040 |
YT140..3FC |
1 | ||
| 33068A - BUTTON SUB-ASSY, SHIFT LOCK RELEASE(FOR FLOOR SHIFT) | ||||
| 33068-20010 |
YT140..3FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 90385-14002 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 90385-14002 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20310 |
YT140..3FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=8.8 |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403001 |
YT140..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 33542-1002011 |
YT140..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33542-2403001 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-20210 |
YT140..3FC |
1 | ||
| 33055-20120 |
YT140..3FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
YT140..3FC 12V 3.4W |
1 | ||
| 99132-11034 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33555-14050 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33555-22050 |
CT14#,YT140 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK |
1 | ||
| 33623-22060 |
YT140..3FC BLACK |
1 | ||
| 33623-1604001 |
YT140..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20140 |
YT140..3FC |
1 | ||
| 33631-14050 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631-20060 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33805-20020 |
YT140..3FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-20010 |
YT140..3FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-20020 |
YT140..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22030 |
YT140..3FC |
1 | ||
| 35906-14010 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-20180 |
YT140..3FC |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-1401001 |
YT140..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 35972-1401001 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14080 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35974-20140 |
YT140..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14050 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 35975-14051 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90159-40109 | ||||
| 90179-08146 | ||||
| 90463-12570 | ||||
| 90468-14004 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 93540-54012 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

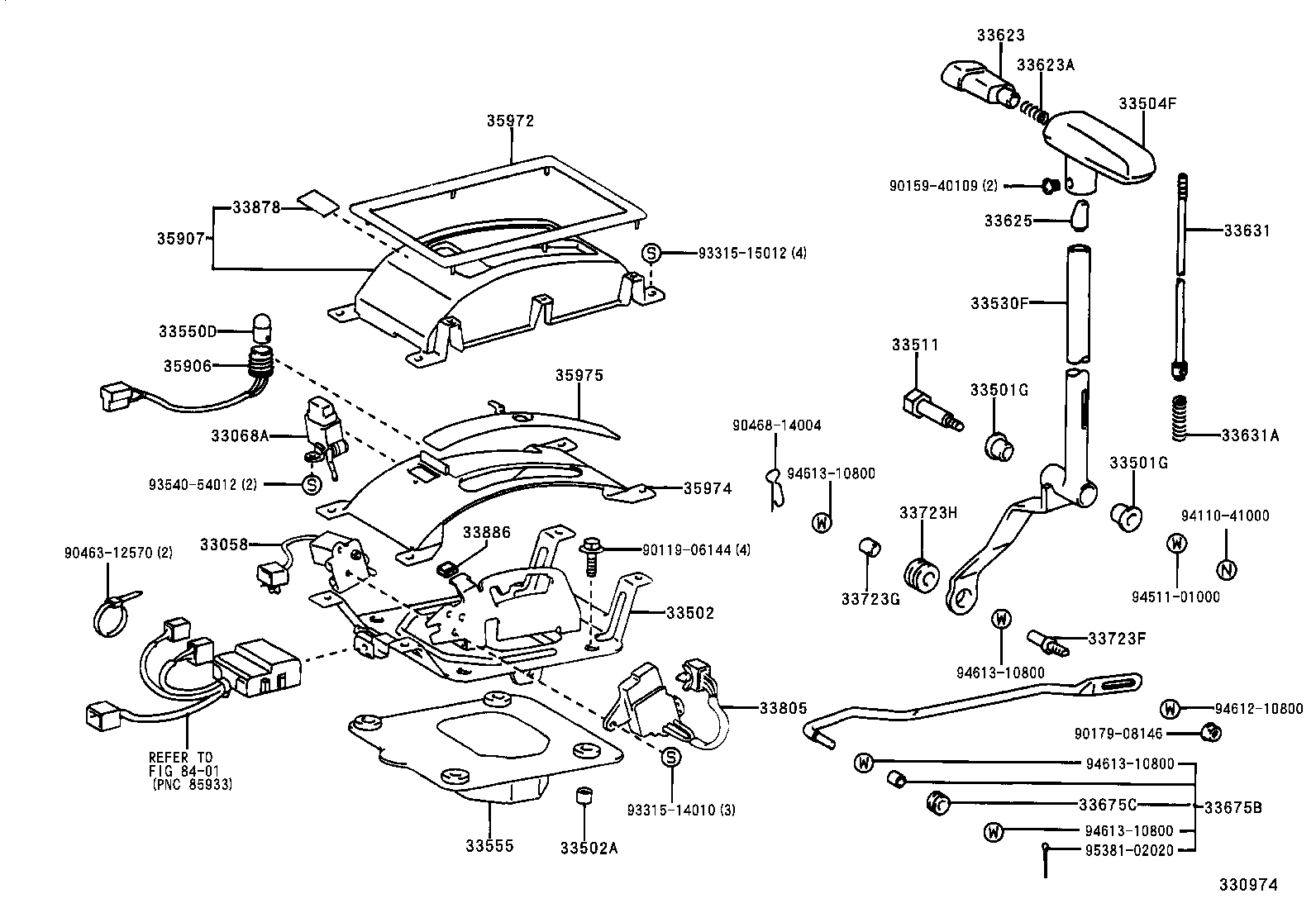

| Linked diagrams | ||||
| 8401 | ||||
(8201-8908)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 90385-14002 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 90385-14002 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=8.8 |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403001 |
YT140..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 33542-1002011 |
YT140..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33542-2403001 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-20210 |
YT140..3FC |
1 | ||
| 33055-20120 |
YT140..3FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-20290 |
YT140..3FC |
1 | ||
| 33550-20291 |
YT140..3FC |
1 | ||
| 33550-20292 |
YT140..3FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
YT140..3FC 12V 3.4W |
1 | ||
| 99132-11034 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33555-14050 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33555-22050 |
CT14#,YT140 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK |
1 | ||
| 33623-22060 |
YT140..3FC BLACK |
1 | ||
| 33623-1604001 |
YT140..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20140 |
YT140..3FC |
1 | ||
| 33631-14050 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631-20060 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 33675-20020 |
YT140..3FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22030 |
YT140..3FC |
1 | ||
| 35906-14010 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-14100 |
AT140,TT147,YT140..3FC |
1 | ||
| 35921-14101 |
AT140,KT147,TT147,YT140..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-1408001 |
YT140..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 35971-1408001 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-1401001 |
YT140..3FC BLACK,BLACK,TRIM2# |
1 | ||
| 35972-1401001 |
AT140,KT147,ST140,TT142,YT140..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14080 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35974-20140 |
YT140..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14050 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 35975-14051 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
