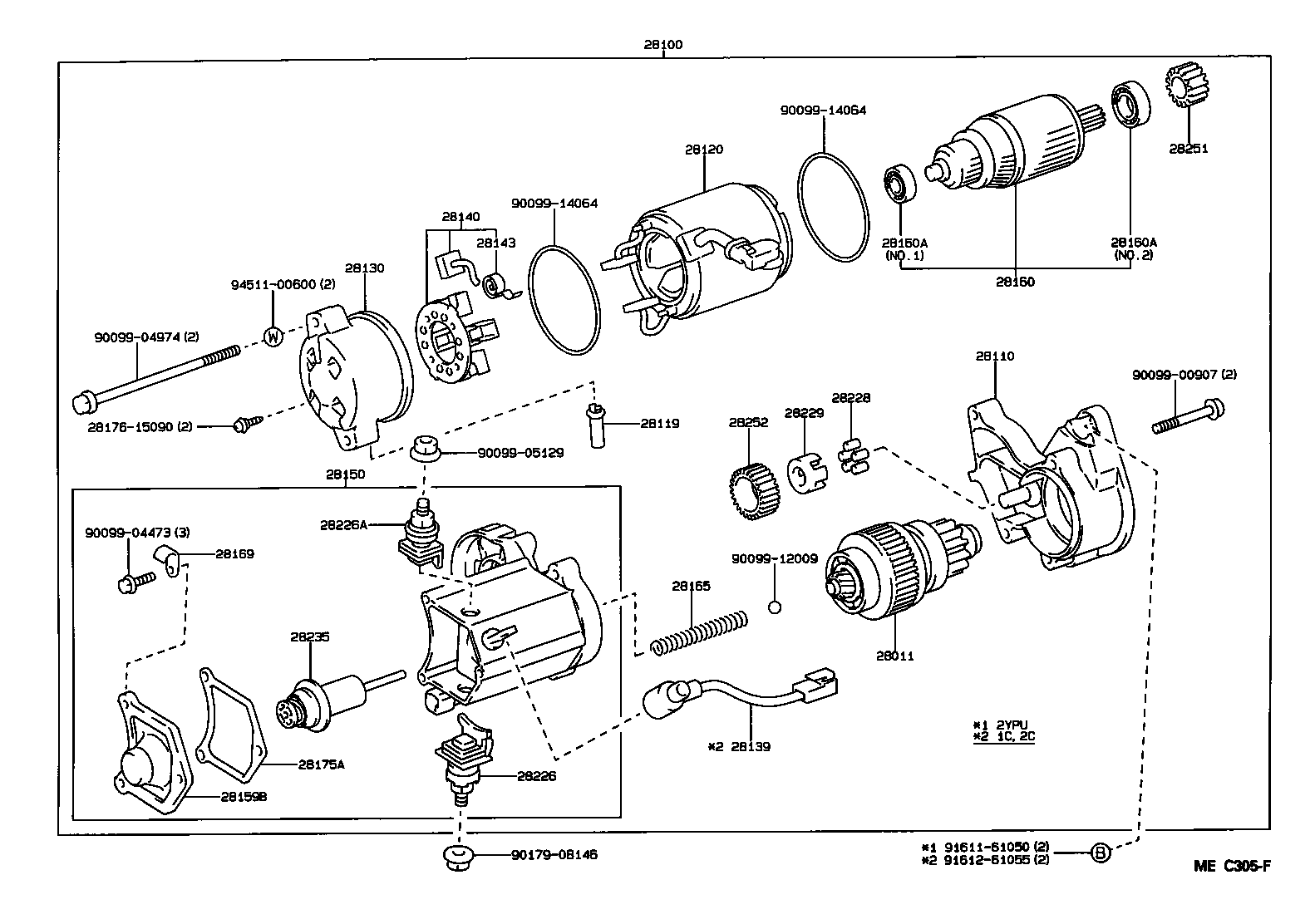

YT140-TEHDP (1982)
Toyota Corona
(8209- )2YPU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72010 |
2YPU..YT140 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-72020 |
2YPU..YT140 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28110-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28120-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28130-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28140-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
18RGEU,2YPU..RT141,YT140 12V 1.0KW |
1 | ||
| 28150-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28150-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28150-72021 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28160-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 90099-10143 |
2YPU..YT140 12V 1.4KW,NO.2 |
1 | ||
| 28253-45020 |
2YPU..YT140 12V 1.0KW,NO.1 |
1 | ||
| 90099-10144 |
2YPU..YT140 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 90099-10143 |
2YPU..YT140 12V 1.4KW,NO.2 |
1 | ||
| 28253-45020 |
2YPU..YT140 12V 1.0KW,NO.1 |
1 | ||
| 90099-10144 |
2YPU..YT140 12V 1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-13120 |
2YPU..YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226-72080 |
2YPU..YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226-72010 |
2C,2YPU..CT141,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61050 | ||||
(8209- )2YPU ; (8309-9111)1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72010 |
2YPU..YT140 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-72020 |
2YPU..YT140 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28110-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28120-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28130-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28140-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
18RGEU,2YPU..RT141,YT140 12V 1.0KW |
1 | ||
| 28150-72010 |
2YPU..YT140 12V 1.0KW |
1 | ||
| 28150-72020 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28150-72021 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28160-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 90099-10143 |
2YPU..YT140 12V 1.4KW,NO.2 |
1 | ||
| 28253-45020 |
2YPU..YT140 12V 1.0KW,NO.1 |
1 | ||
| 90099-10144 |
2YPU..YT140 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 90099-10143 |
2YPU..YT140 12V 1.4KW,NO.2 |
1 | ||
| 28253-45020 |
2YPU..YT140 12V 1.0KW,NO.1 |
1 | ||
| 90099-10144 |
2YPU..YT140 12V 1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-13120 |
2YPU..YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226-72080 |
2YPU..YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28226-72010 |
2C,2YPU..CT141,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1C,2C,2YPU..CT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
2YPU..YT140 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61050 | ||||
| 91612-61055 | ||||
| 94511-00600 | ||||
