Toyota Corona YT140 ALTERNATOR - JDM Part Detective

YT140-TEHDP (1982)

Toyota Corona

Production Sep 1982 - Apr 1998

Engine 2YPU

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

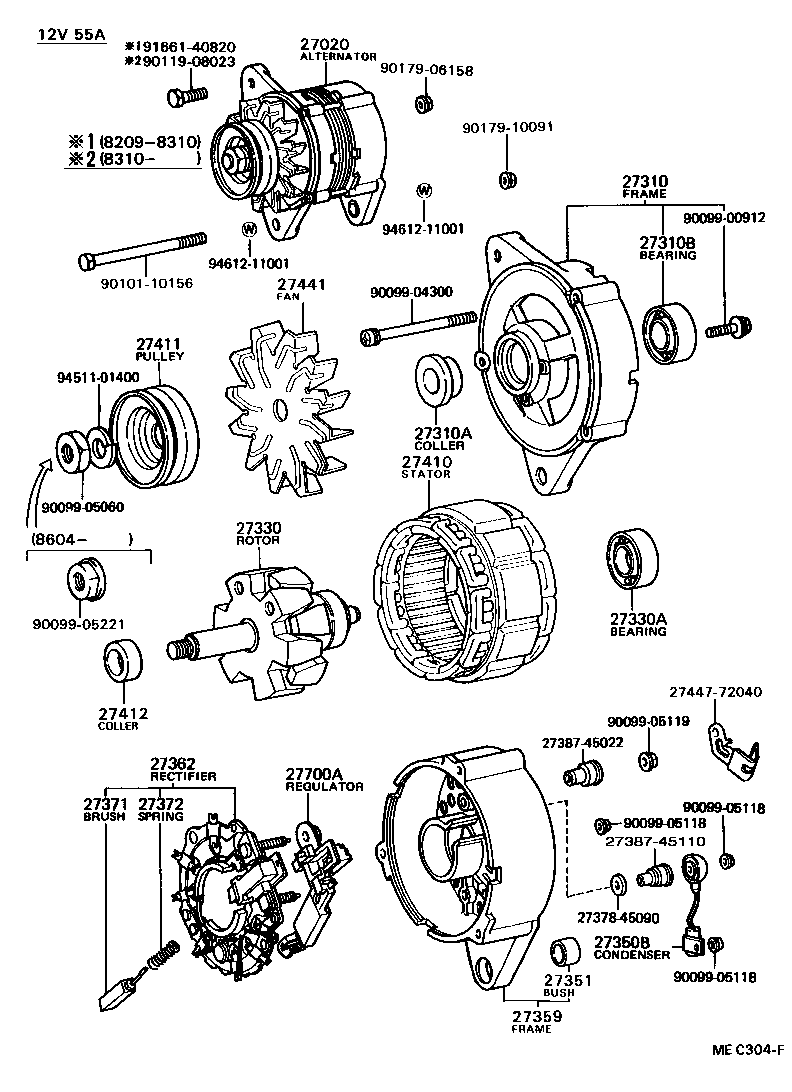

(8209-8902)2YPU

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-72020	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27060-72220	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45110	2YPU..YT140 12V 55A	09/1982 - 06/1983	1
27310-72040	2YPU..YT140 12V 55A	06/1983 - 01/1984	1
27310-72041	2YPU..YT140 12V 55A	01/1984 - 02/1989	1
27310-72250	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-16030	2YPU..YT140 12V 55A	01/1984 - 04/1986	1
27412-31040	12TJ,18RGEU,3AU,1SU,3T#,2YPU..AT140,RT141,ST140,TT14#,YT140 12V 55A,60A,65A	01/1982 - 06/1983	1
27412-63030	2YPU..YT140 12V 55A	06/1983 - 01/1984	1
27412-16040	2YPU..YT140 12V 55A	04/1986 - 02/1989	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	12TJ,18RGEU,1SU,3T#,2YPU..RT141,ST140,TT14#,YT140 12V 55A,60A,65A	01/1982 - 06/1983	1
90099-10177	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
90099-10142	2YPU..YT140 12V 55A	06/1983 - 02/1989	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040	18RGEU,2YPU..RT141,YT140 12V 55A,60A,65A	01/1982 - 02/1989	1
27330-43132	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A	01/1982 - 02/1989	1
90099-10140	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27350B - CONDENSER, ALTERNATOR
90099-52065	12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A	01/1982 - 02/1989	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A	01/1982 - 02/1989	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27359-72250	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27371 - BRUSH, ALTERNATOR
27371-44071	2YPU..YT140 12V 55A	09/1982 - 02/1989	2
27371-72161	2YPU..YT140 12V 60A	02/1989 - 04/1998	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2YPU..YT140 12V 55A	12/1987 - 02/1989	2
90099-17114	2YPU..YT140 12V 55A	09/1982 - 12/1987	2
27372-63020	2YPU..YT140 12V 60A	02/1989 - 04/1998	2
27410 - STATOR ASSY, ALTERNATOR
27410-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27411 - PULLEY, ALTERNATOR
27411-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27411-72130	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-15150	2YPU..YT140 12V 55A	04/1986 - 02/1989	1
27412-45070	2YPU..YT140 12V 55A	09/1982 - 04/1986	1
27441 - FAN, ALTERNATOR
27441-70040	2YPU..YT140 12V 55A	10/1982 - 02/1989	1
27441-34111	3TEU..TT142..4FC;18RGEU,2YPU..RT141,YT140 12V 55A,60A,65A	01/1982 - 10/1982	1
27700A - REGULATOR ASSY, GENERATOR
27700-63030	2YPU..YT140 12V 55A	09/1982 - 08/1983	1
27700-72080	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27700-72050	2YPU..YT140 12V 55A	08/1983 - 02/1989	1
Common parts
27378-45090
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-05221
90101-10156
90119-08023
90179-06158
90179-10091
91661-40820
94511-01400
94612-11001

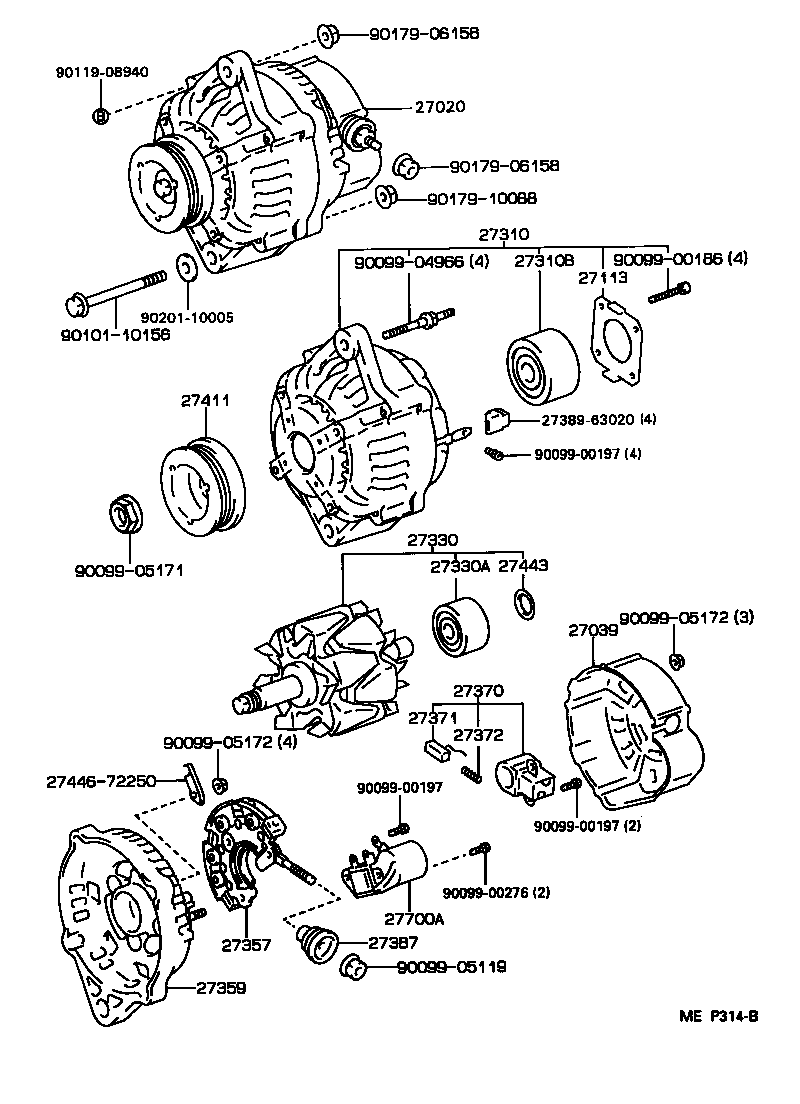

(8902- )2YPU

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-72020	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27060-72220	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-15170	2YPU..YT140 12V 60A	09/1991 - 01/1997	1
27039-72010	2YPU..YT140 12V 60A	02/1989 - 09/1991	1
27039-15171	2YPU..YT140 12V 60A	01/1997 - 04/1998	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45110	2YPU..YT140 12V 55A	09/1982 - 06/1983	1
27310-72040	2YPU..YT140 12V 55A	06/1983 - 01/1984	1
27310-72041	2YPU..YT140 12V 55A	01/1984 - 02/1989	1
27310-72250	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	12TJ,18RGEU,1SU,3T#,2YPU..RT141,ST140,TT14#,YT140 12V 55A,60A,65A	01/1982 - 06/1983	1
90099-10177	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
90099-10142	2YPU..YT140 12V 55A	06/1983 - 02/1989	1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040	18RGEU,2YPU..RT141,YT140 12V 55A,60A,65A	01/1982 - 02/1989	1
27330-43132	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140 12V 45A,55A,60A,65A	01/1982 - 02/1989	1
90099-10140	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27359-72250	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-72161	2YPU..YT140 12V 60A	02/1989 - 02/1991	1
27370-35060	2YPU..YT140 12V 60A	07/1992 - 04/1998	1
27370-70300	2YPU..YT140 12V 60A	02/1991 - 07/1992	1
27371 - BRUSH, ALTERNATOR
27371-44071	2YPU..YT140 12V 55A	09/1982 - 02/1989	2
27371-72161	2YPU..YT140 12V 60A	02/1989 - 04/1998	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2YPU..YT140 12V 55A	12/1987 - 02/1989	2
90099-17114	2YPU..YT140 12V 55A	09/1982 - 12/1987	2
27372-63020	2YPU..YT140 12V 60A	02/1989 - 04/1998	2
27387 - INSULATOR, TERMINAL
27387-70170	2YPU..YT140 12V 60A	02/1989 - 09/1997	1
27387-70171	2YPU..YT140 12V 60A	09/1997 - 04/1998	1
27411 - PULLEY, ALTERNATOR
27411-72040	2YPU..YT140 12V 55A	09/1982 - 02/1989	1
27411-72130	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27700A - REGULATOR ASSY, GENERATOR
27700-63030	2YPU..YT140 12V 55A	09/1982 - 08/1983	1
27700-72080	2YPU..YT140 12V 60A	02/1989 - 04/1998	1
27700-72050	2YPU..YT140 12V 55A	08/1983 - 02/1989	1
Common parts
27389-63020
27446-72250
90099-00186
90099-00197
90099-00276
90099-04966
90099-05119
90099-05171
90099-05172
90101-10156
90119-08940
90179-06158
90179-10088
90201-10005

YT140-TEHDP (1982)

(8209-8902)2YPU

(8902- )2YPU
