YT140-TEHDP (1982)
Toyota Corona
Production
Sep 1982
-
Apr 1998
Engine
2YPU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8209- )2YPU

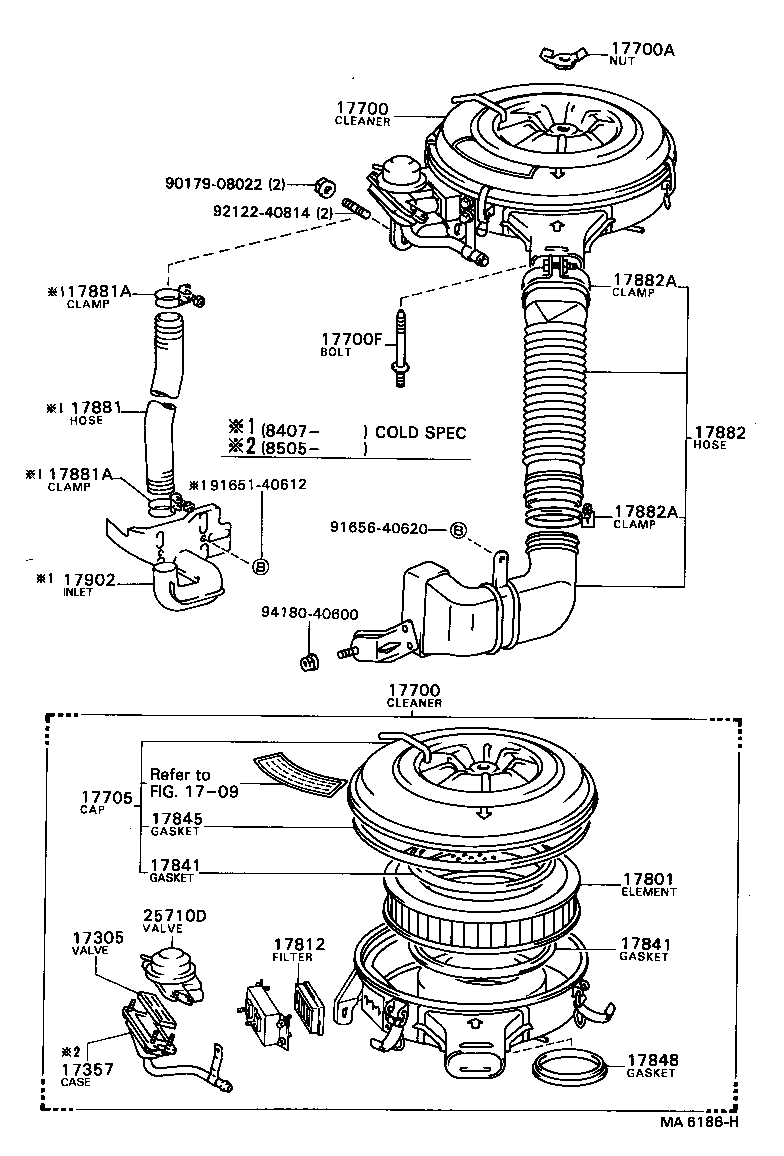

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15010 |
2YPU..YT140 |
1 | ||
| 17357 - CASE, REED VALVE | ||||
| 17357-72010 |
2YPU..YT140 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72010 |
2YPU..YT140 |
1 | ||
| 17700-72080 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17700-72011 |
2YPU..YT140 |
1 | ||
| 17700-72013 |
2YPU..YT140 |
1 | ||
| 17700-72081 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17700-72012 |
2YPU..YT140 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72010 |
2YPU..YT140 |
1 | ||
| 17700-72080 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17700-72011 |
2YPU..YT140 |
1 | ||
| 17700-72013 |
2YPU..YT140 |
1 | ||
| 17700-72081 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17700-72012 |
2YPU..YT140 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2YPU..YT140 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-08161 |
2YPU..YT140 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73060 |
2YPU..YT140 |
1 | ||
| 17705-72011 |
2YPU..YT140 |
1 | ||
| 17705-72010 |
2YPU..YT140 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44040 |
2YPU..YT140 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
2YPU..YT140 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
2YPU..YT140 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
2YPU..YT140 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
2YPU..YT140 |
1 | ||
| 17845-42010 |
2YPU..YT140 *G,L=1025 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
2YPU..YT140 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31060 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17881-74040 |
2YPU..YT140 COLD SPEC |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2YPU..YT140 COLD SPEC |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2YPU..YT140 COLD SPEC |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-20010 |
2YPU..YT140 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
2YPU..YT140 RR |
1 | ||
| 96111-10730 |
2YPU..YT140 FR |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
2YPU..YT140 RR |
1 | ||
| 96111-10730 |
2YPU..YT140 FR |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-72010 |
2YPU..YT140 COLD SPEC |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-72010 |
2YPU..YT140 |
1 | ||
| Common parts | ||||
| 90179-08022 | ||||
| 91651-40612 | ||||
| 91656-40620 | ||||
| 92122-40814 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
