YT140-TEHDP (1982)
Toyota Corona
Production
Sep 1982
-
Apr 1998
Engine
2YPU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8209- )2YPU

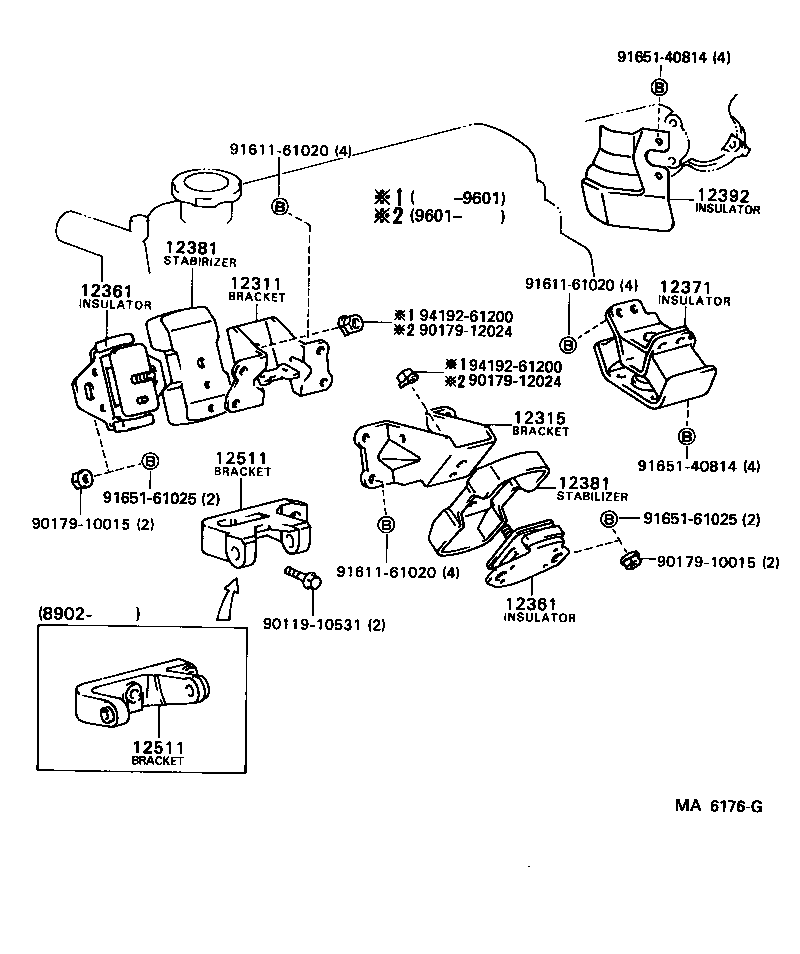

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-71010 |
2YPU..YT140 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-71010 |
2YPU..YT140 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
2YPU..YT140 MARUYASU |
2 | ||
| 12361-38130 |
2YPU..YT140 TOYO GOMU |
2 | ||
| 12361-71020 |
2YPU..YT140 |
2 | ||
| 12361-73050 |
2YPU..YT140 |
2 | ||
| 12361-73051 |
2YPU..YT140 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38120 |
2YPU..YT140 MARUYASU |
2 | ||
| 12361-38130 |
2YPU..YT140 TOYO GOMU |
2 | ||
| 12361-71020 |
2YPU..YT140 |
2 | ||
| 12361-73050 |
2YPU..YT140 |
2 | ||
| 12361-73051 |
2YPU..YT140 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
2YPU..YT140 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
2YPU..YT140 |
2 | ||
| 12381-71020 |
2YPU..YT140 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
2YPU..YT140 |
2 | ||
| 12381-71020 |
2YPU..YT140 |
2 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12391-72010 |
2YPU..YT140 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-71010 |
2YPU..YT140 |
1 | ||
| 12501-73020 |
2YPU..YT140 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-71010 |
2YPU..YT140 |
1 | ||
| 12501-73020 |
2YPU..YT140 |
1 | ||
| Common parts | ||||
| 90119-10531 | ||||
| 90179-10015 | ||||
| 90179-12024 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-61025 | ||||
| 94192-61200 | ||||
