YT140-TEBRP (1982)
Toyota Corona

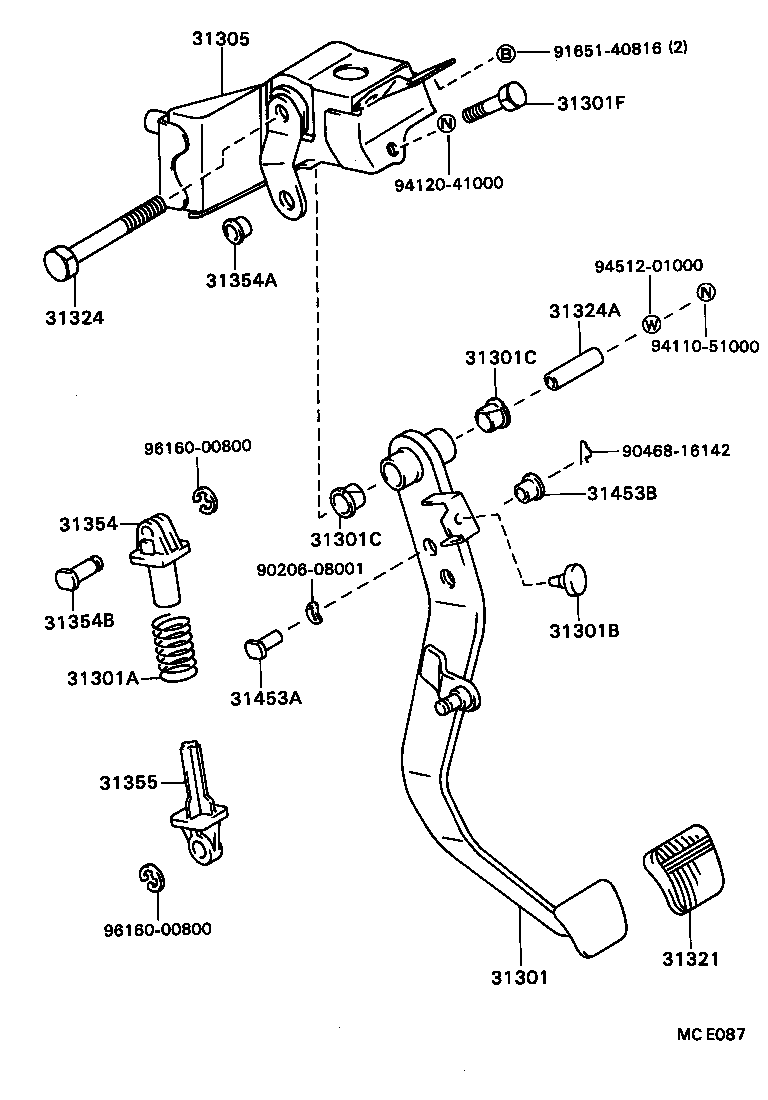

ILLUST NO. 1 OF 2(8201-8310)5F..SX ; (8201-9111)AT140,CT14#,KT147,RT141,ST140,TT147..MTM ; (8209-861
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20160 |
YT140..4H |
1 | ||
| 31310-20070 |
CT141,YT140..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 90501-40016 |
CT141,YT140..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
CT141,YT140..MTM |
1 | ||
| 90541-06008 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT140,CT14#,KT147,ST140,YT140..MTM |
2 | ||
| 90386-13192 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT140,CT14#,KT147,ST140,YT140..MTM |
2 | ||
| 90386-13192 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20210 |
CT141,YT140..MTM |
1 | ||
| 55107-14050 |
AT140,CT14#,KT147,ST140,TT147,YT140..MTM |
1 | ||
| 55107-24010 |
AT140,CT14#,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| 90101-10081 |
CT141,YT140..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10021 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08058 |
CT141,YT140..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-40816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
ILLUST NO. 1 OF 2(8612-9111)CT141,YT140..MTM ; (9111- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20160 |
YT140..4H |
1 | ||
| 31310-20070 |
CT141,YT140..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 90501-40016 |
CT141,YT140..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
CT141,YT140..MTM |
1 | ||
| 90541-06008 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT140,CT14#,KT147,ST140,YT140..MTM |
2 | ||
| 90386-13192 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT140,CT14#,KT147,ST140,YT140..MTM |
2 | ||
| 90386-13192 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20210 |
CT141,YT140..MTM |
1 | ||
| 55107-14050 |
AT140,CT14#,KT147,ST140,TT147,YT140..MTM |
1 | ||
| 55107-24010 |
AT140,CT14#,RT141,ST140,TT147,YT140..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| 90101-10081 |
CT141,YT140..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10021 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-30010 |
CT141,YT140..MTM |
1 | ||
| 31354-20020 |
CT141,YT140..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
CT141,YT140..MTM |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
CT141,YT140..MTM |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-14020 |
CT141,YT140..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08058 |
CT141,YT140..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-40816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00800 | ||||
