TT147V-TXKRS (1982)
Toyota Corona

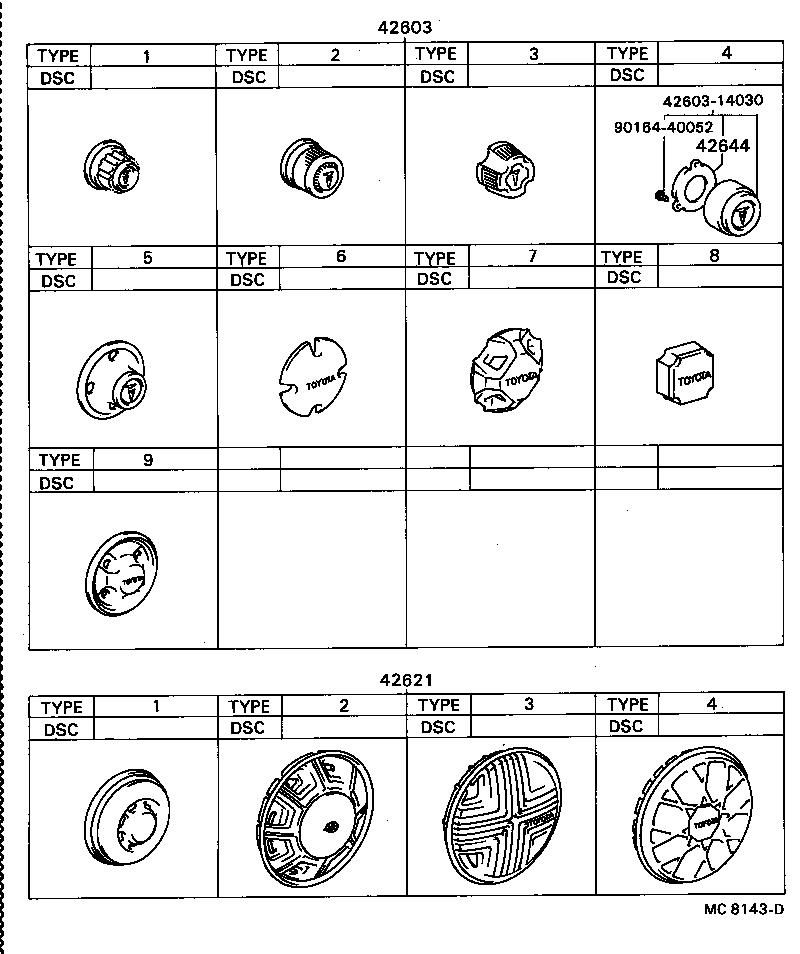

ILLUST NO. 1 OF 3(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12070 |
AT140..STD;CT147,KT147,TT147 TYPE 1 |
4 | ||
| Common parts | ||||
| 42603-14030 | ||||
| 90164-40052 | ||||

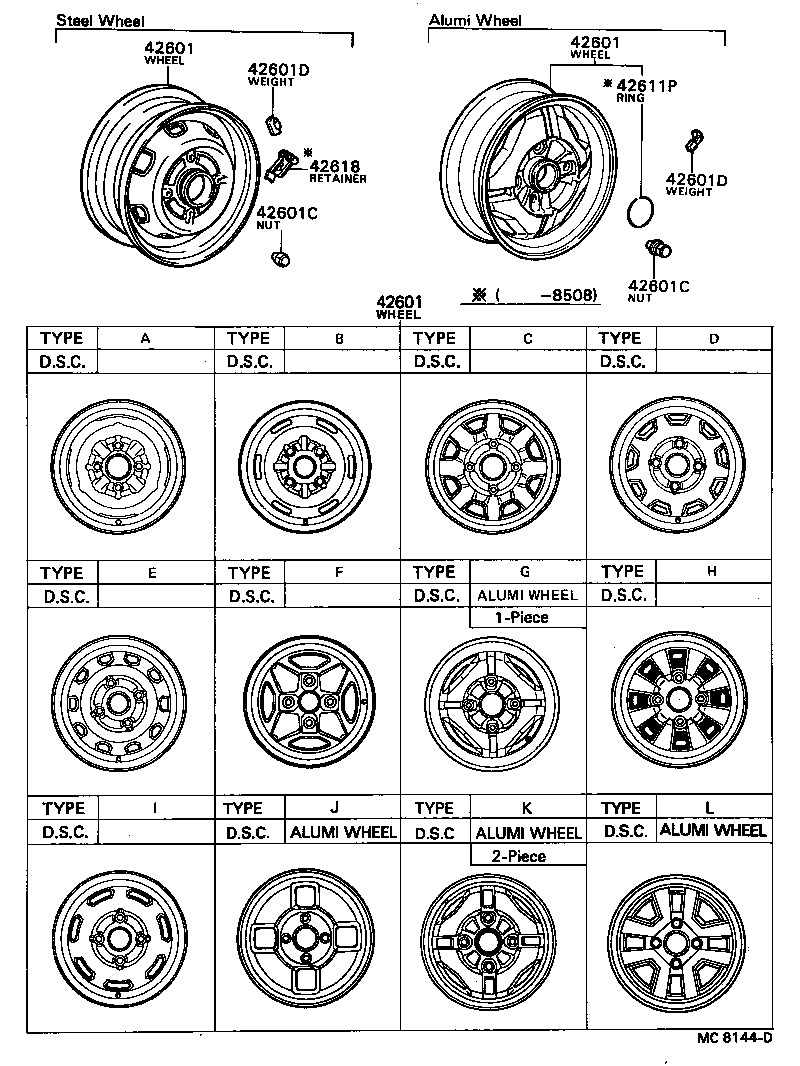

ILLUST NO. 2 OF 3(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-21081 |
CT147,KT147,TT147 13X4.5J,4.5J-13,TYPE D |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-21081 |
CT147,KT147,TT147 13X4.5J,4.5J-13,TYPE D |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-21081 |
CT147,KT147,TT147 13X4.5J,4.5J-13,TYPE D |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
ST140..EXA,GXA;AT140,CT147,RT141,TT14# CAP NUT |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
ST140..EXA,GXA;AT140,CT147,RT141,TT14# CAP NUT |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30G,厚さ=10,30G |
1 | ||
| 90942-03025 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 50G,厚さ=9.5,50G |
1 | ||
| 90942-03022 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20G,厚さ=8,20G |
1 | ||
| 90942-03029 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 70G,厚さ=9.5,70G |
1 | ||
| 90942-03027 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 80G,厚さ=9.5,80G |
1 | ||
| 90942-03041 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 10G,厚さ=7.5,10G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30G,厚さ=10,30G |
1 | ||
| 90942-03025 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 50G,厚さ=9.5,50G |
1 | ||
| 90942-03022 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20G,厚さ=8,20G |
1 | ||
| 90942-03029 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 70G,厚さ=9.5,70G |
1 | ||
| 90942-03027 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 80G,厚さ=9.5,80G |
1 | ||
| 90942-03041 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 10G,厚さ=7.5,10G |
1 | ||

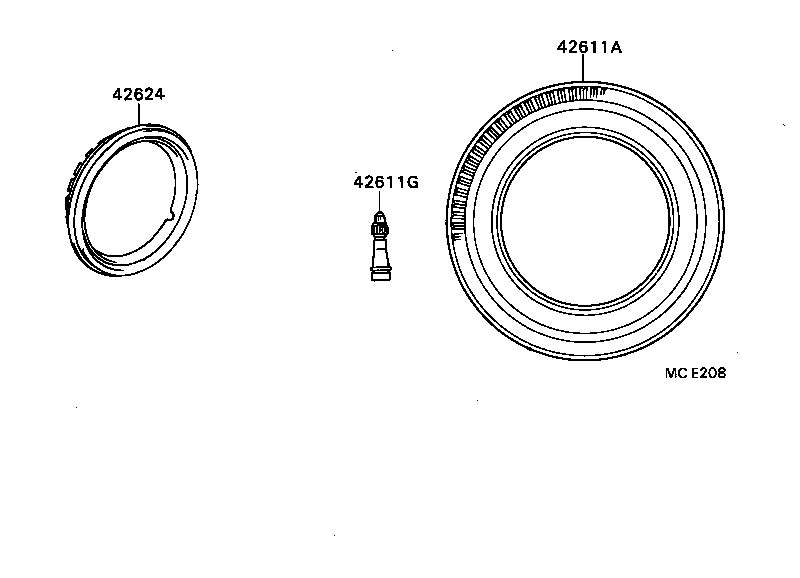

ILLUST NO. 3 OF 3(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-14410 |
CT147,KT147,TT147 165R13-6 |
5 | ||
| 98061-55134 |
CT147,KT147,TT147 5.50-13-8,W/TUBE |
5 | ||
