TT147V-TXKDS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

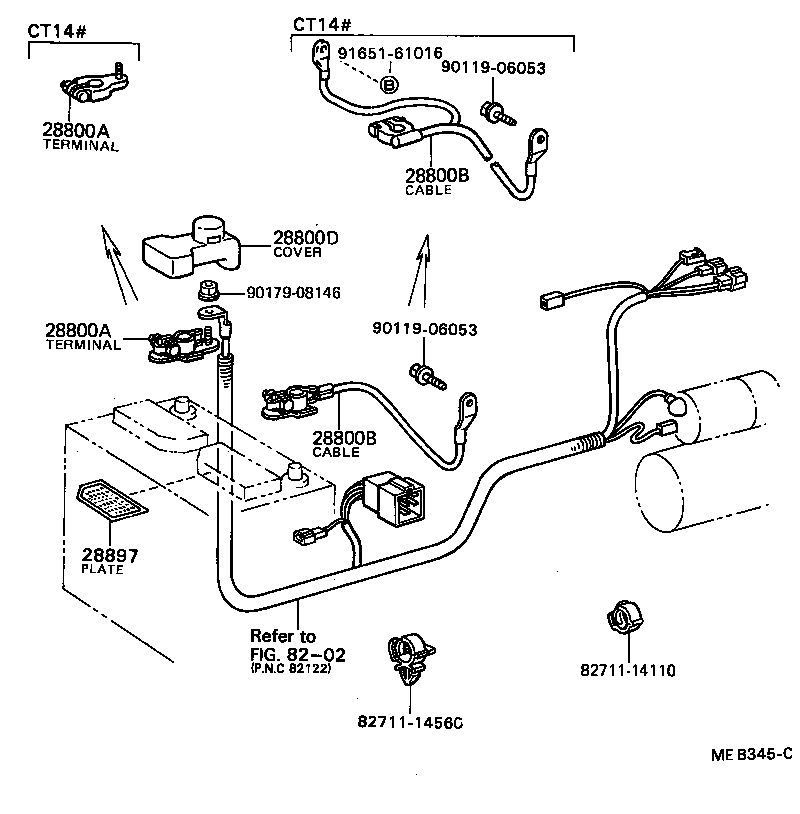

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800D 28897 8202 8271114110 8271114560 9011906053 9011906053 9017908146 9165161016
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
Common parts
82711-14110
82711-14560
90119-06053
90179-08146
91651-61016
Linked diagrams
8202
