TT147V-TXKDS (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
12TJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8310)12TJ

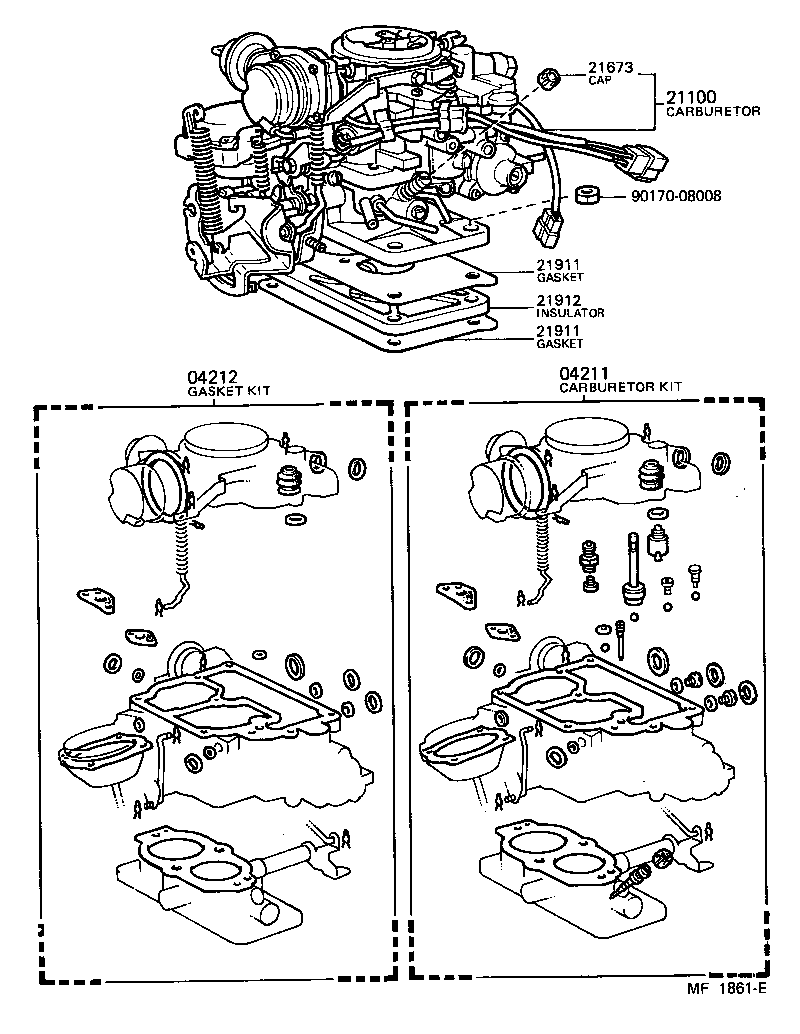

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-27070 |
12TJ..TT147 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-28012 |
12TJ..TT147 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-27100 |
12TJ..TT147 |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-38020 |
12TJ..TT147 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-26010 |
12TJ..TT147 |
2 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-26010 |
12TJ..TT147 |
2 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-26021 |
12TJ..TT147 |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
