TT147V-TXHNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

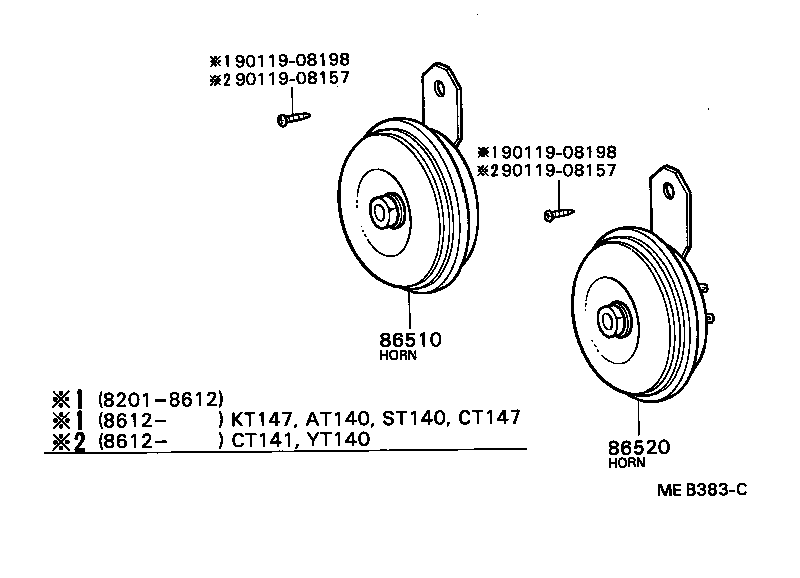

diagram 86510 86520 9011908157 9011908157 9011908198 9011908198
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-22050

AT140,CT14#,RT141,ST140,TT14#,YT140

NIPPONDENSO

 1
86510-22060

AT140,CT14#,RT141,ST140,TT14#,YT140

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-22060

AT140,CT14#,RT141,ST140,TT14#,YT140

MARUKO

 1
86520-22050

AT140,CT14#,RT141,ST140,TT14#,YT140

NIPPONDENSO

 1
Common parts
90119-08157
90119-08198
