TT147V-TXHNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)12TJ,5KJ

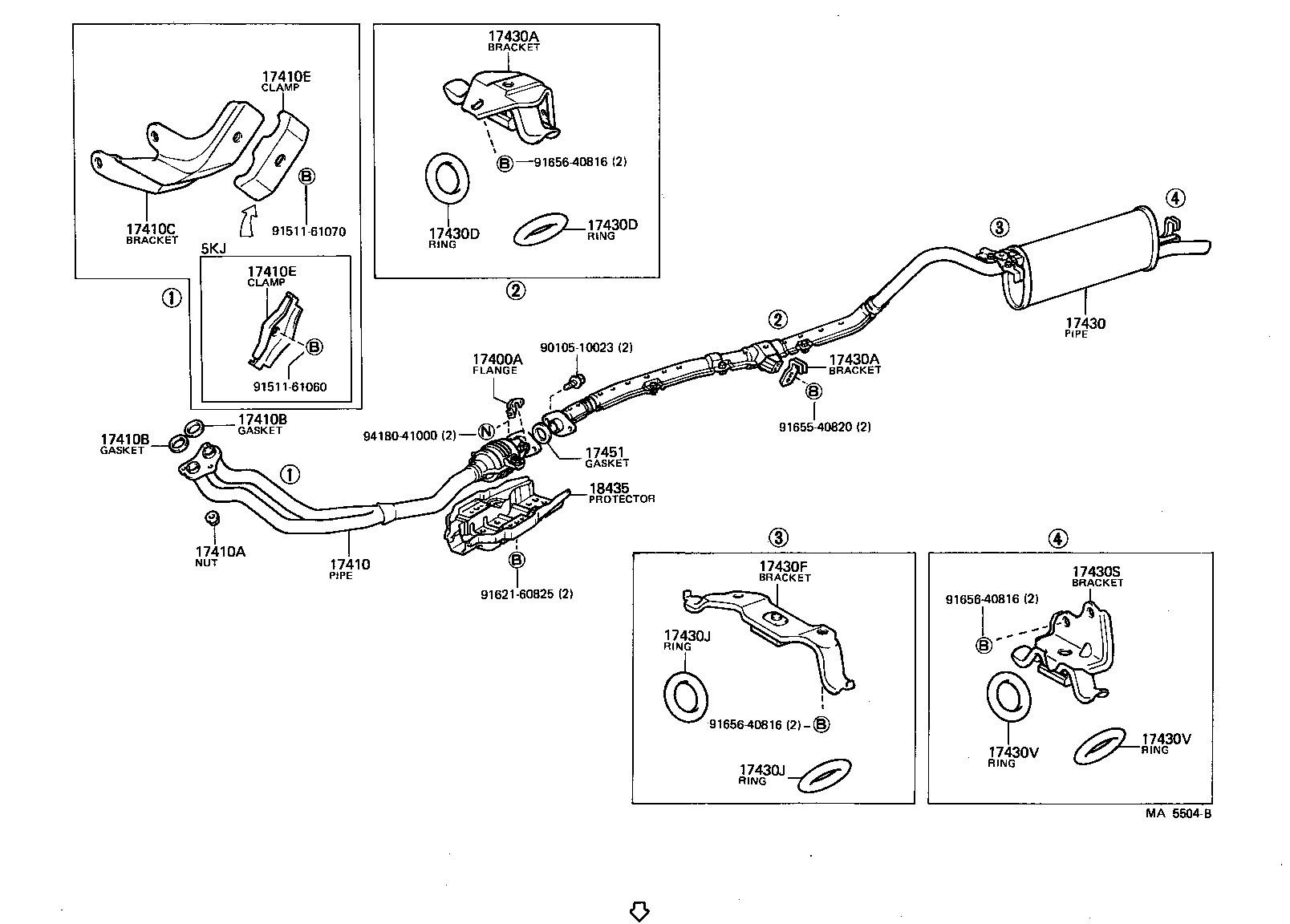

Click highlighted areas on diagram

diagram 17400A 17410 17410A 17410B 17410B 17410C 17410E 17410E 17430 17430A 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17451 18435 9010510023 9151161060 9151161070 9162160825 9165540820 9165640816 9165640816 9165640816 9418041000
Part # Description Qty Price
17400A - FLANGE, THERMOSENSER INLET
18491-18010

12TJ,5KJ..KT147,TT147

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-27070

12TJ..TT147

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

12TJ,3AU,1SU,3TEU,2YPU..AT140,ST140,TT14#,YT140

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

12TJ,3AU,1SU,3TEU,2YPU..AT140,ST140,TT14#,YT140

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-26180

12TJ,3TEU..TT14#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

12TJ,18RGEU,3AU,4AGEU,1SU,3TEU,2YPU..AT14#,RT141,ST140,TT14#,YT140

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

12TJ,18RGEU,3AU,4AGEU,1SU,3TEU,2YPU..AT14#,RT141,ST140,TT14#,YT140

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-27060

12TJ,5KJ..KT147,TT147

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12TJ,2YPU..TT147,YT140

LWR

 1
17506-38050

12TJ,5KJ..KT147,TT147

UPR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12TJ,2YPU..TT147,YT140

LWR

 1
17506-38050

12TJ,5KJ..KT147,TT147

UPR

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

12TJ,2YPU..TT147,YT140

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

12TJ,2YPU..TT147,YT140

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26060

12TJ,1C,5KJ..CT147,KT147,TT147

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12TJ,18RGEU,3AU,1C,1SU,3T#,2YPU..AT140,CT14#,RT141,ST140,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12TJ,18RGEU,3AU,1C,1SU,3T#,2YPU..AT140,CT14#,RT141,ST140,TT14#,YT140

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-38050

12TJ,1C,5KJ..CT147,KT147,TT147

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12TJ,18RGEU,3AU,1C,1SU,3T#,2YPU..AT140,CT14#,RT141,ST140,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12TJ,18RGEU,3AU,1C,1SU,3T#,2YPU..AT140,CT14#,RT141,ST140,TT14#,YT140

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

12TJ,5KJ..KT147,TT147

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-27010

12TJ,5KJ..KT147,TT147

 1
Common parts
90105-10023
91511-61060
91511-61070
91621-60825
91655-40820
91656-40816
94180-41000
