TT142-TSPSE (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

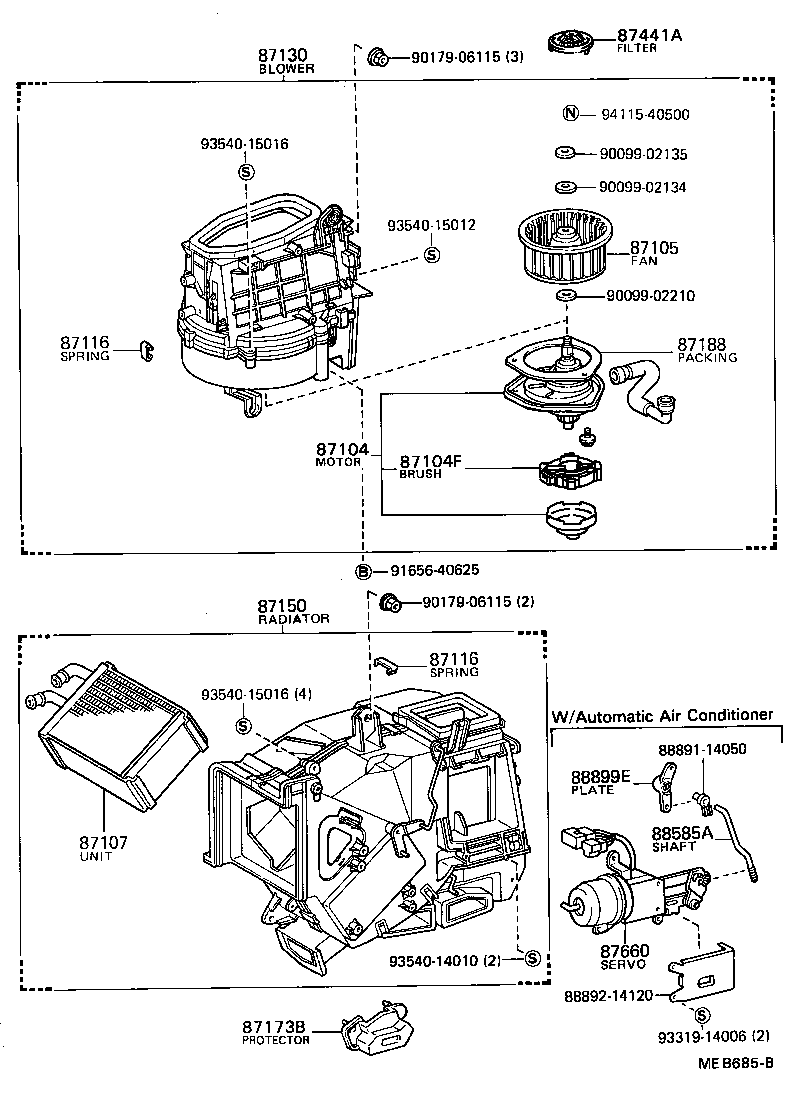

Click highlighted areas on diagram

diagram 87104 87104F 87105 87107 87116 87116 87130 87150 87173B 87188 87441A 87660 88585A 8889114050 8889214120 88899E 9009902134 9009902135 9009902210 9017906115 9017906115 9165640625 9331914006 9354014010 9354015012 9354015016 9354015016 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-14110

KT147,RT141,ST140,TT14#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 10
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 10
87130 - BLOWER ASSY, HEATER, FRONT
87130-14070

AT140,CT14#,RT141,ST140,TT14#

 1
87150 - RADIATOR ASSY, HEATER
87150-14160

KT147,RT141,ST140,TT14#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-14050

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX)

W/*AAC

 1
88585A - SHAFT, HEATER AIR DAMPER
88585-14050

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX)

W/*AAC

 1
88899E - PLATE, HEATER AIR DAMPER SHAFT
88899-14170

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX)

W/*AAC

 1
Common parts
88891-14050
88892-14120
90099-02134
90099-02135
90099-02210
90179-06115
91656-40625
93319-14006
93540-14010
93540-15012
93540-15016
94115-40500
