TT142-TSPSE (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8310)GT,SX

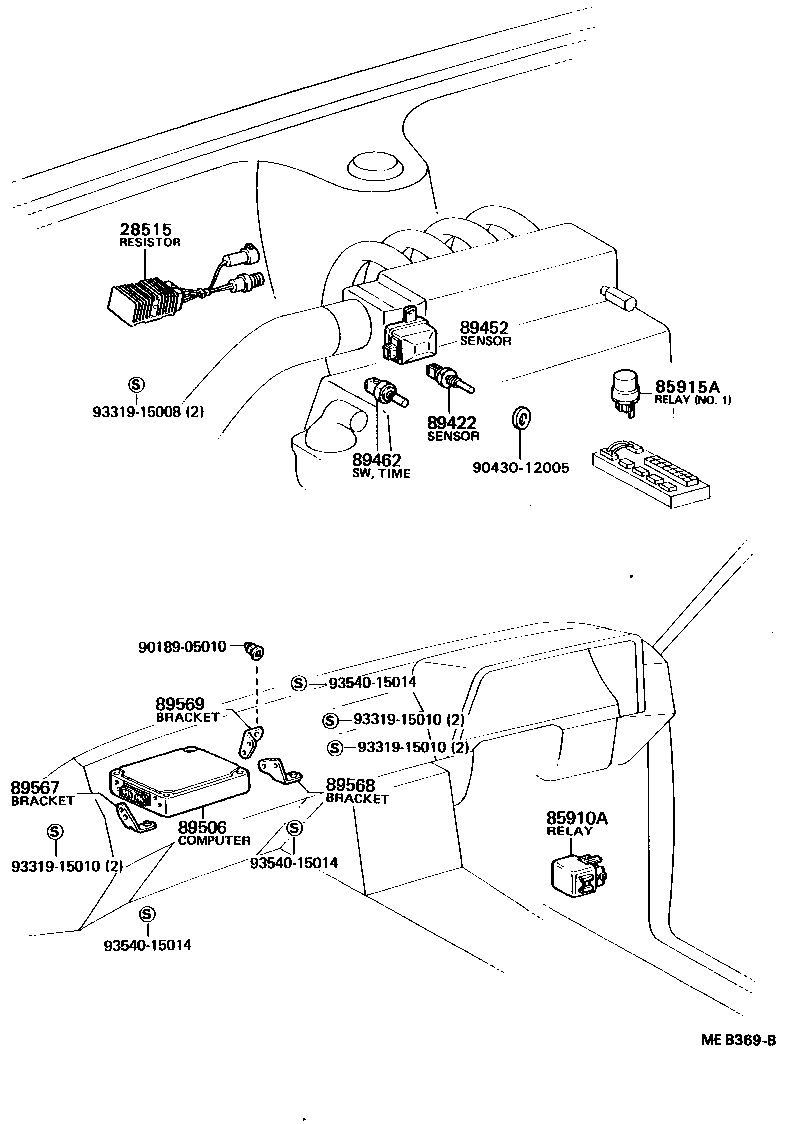

Click highlighted areas on diagram

diagram 28515 85910A 85915A 89422 89452 89462 89506 89567 89568 89569 9018905010 9043012005 9331915008 9331915010 9331915010 9331915010 9354015014 9354015014 9354015014
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-26040

18RGEU,3TEU..RT141,TT142

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

AT141,RT141,TT142

 1
85915A - RELAY, MAIN
90987-02004

AT141,RT141,TT142

NO.1

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

AT141,RT141,TT142

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010

TT142..SX

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

RT141,TT142

 1
89506 - COMPUTER SET, FUEL INJECTION
89561-14032

TT142..SX

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-14070

AT141,RT141,TT142..HT

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89568-14060

AT141,RT141,TT142..HT

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-14060

AT141,RT141,TT142..HT

 1
Common parts
90189-05010
90430-12005
93319-15008
93319-15010
93540-15014
