TT142-TSPSE (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)RT141,TT142..GT,SX

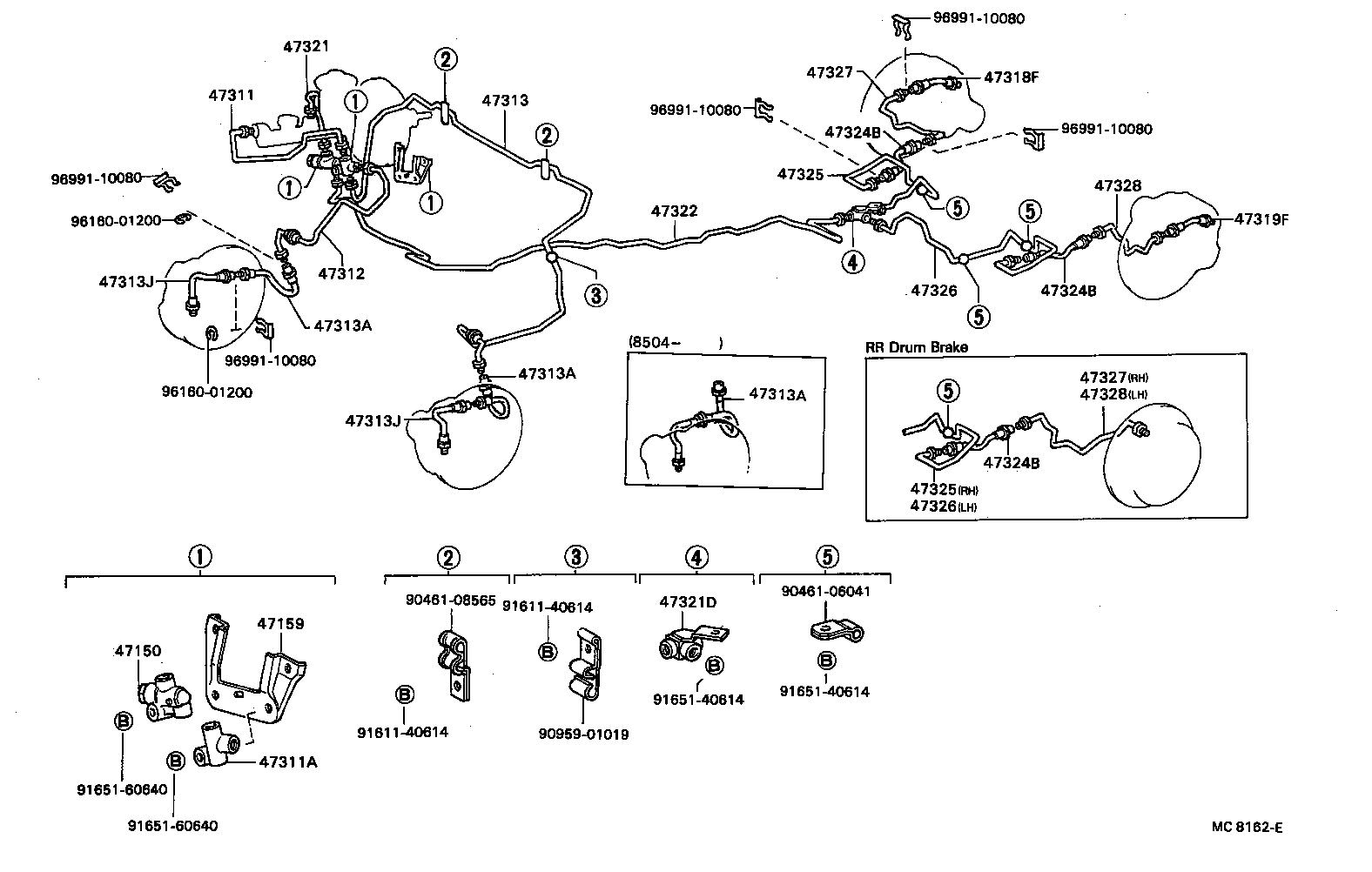

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47318F 47319F 47321 47321D 47322 47324B 47324B 47324B 47325 47325 47326 47326 47327 47327 47328 47328 9046106041 9046108565 9095901019 9161140614 9161140614 9165140614 9165140614 9165160640 9165160640 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14030

RT141,TT142

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

TT142..SX

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

TT142..SX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

TT142..SX

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20180

TT142..SX

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

AT140,RT141,ST140,TT14#,YT140

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10109

AT141,RT141,TT142

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14101

AT141,RT141,TT142

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-14030

AT141,RT141,TT142

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-14030

AT141,RT141,TT142

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14030

AT141,RT141,TT142

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14030

AT141,RT141,TT142

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-14020

TT142..SX

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-14020

TT142..SX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-14020

TT142..SX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-14020

TT142..SX

 1
Common parts
90461-06041
90461-08565
90959-01019
91611-40614
91651-40614
91651-60640
96160-01200
96991-10080
