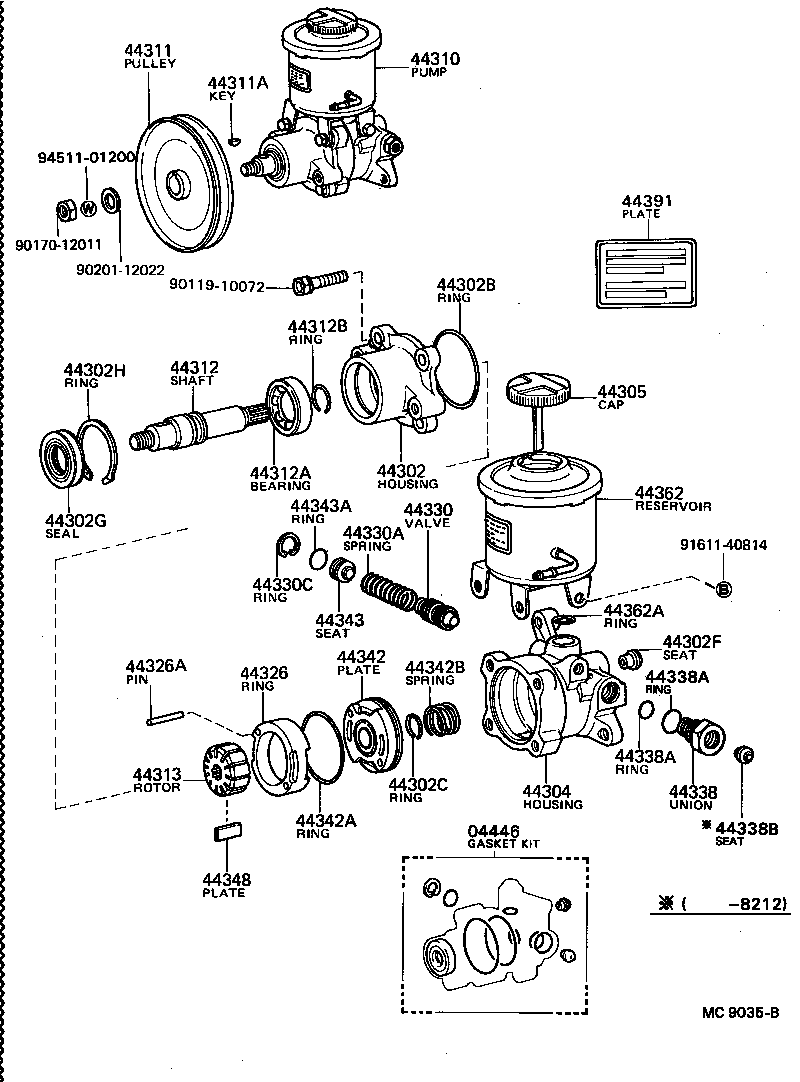

TT142-TSPSE (1982)
Toyota Corona
(8201-8310)SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-14040 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
TT142..SX |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
AT14#,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-14020 |
TT142..SX |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-14080 |
TT142..SX |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12010 |
TT142..SX |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12030 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-12050 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12020 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12040 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 3,MARK 3 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-12040 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12020 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12030 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12050 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ﾏｰｸ 4,MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=25,外径=5.0,L=25 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12040 |
TT142 ﾏｰｸ D,MARK D |
1 | ||
| 44330-12020 |
TT142 ﾏｰｸ B,MARK B |
1 | ||
| 44330-12030 |
TT142 ﾏｰｸ C,MARK C |
1 | ||
| 44330-12060 |
TT142 ﾏｰｸ F,MARK F |
1 | ||
| 44330-12010 |
TT142 ﾏｰｸ A,MARK A |
1 | ||
| 44330-12050 |
TT142 ﾏｰｸ E,MARK E |
1 | ||
| 44330-12130 |
TT142..SX ﾏｰｸ A,MARK A |
1 | ||
| 44330-12140 |
TT142..SX ﾏｰｸ B,MARK B |
1 | ||
| 44330-12160 |
TT142..SX ﾏｰｸ D,MARK D |
1 | ||
| 44330-12150 |
TT142..SX ﾏｰｸ C,MARK C |
1 | ||
| 44330-12180 |
TT142..SX ﾏｰｸ F,MARK F |
1 | ||
| 44330-12170 |
TT142..SX ﾏｰｸ E,MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-14020 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 96711-19014 |
AT140,CT140,RT141,ST140,TT142..EXS,GT,GTT,GX,GXA,SX 外径=17.0,内径=13.0,ID=14,OD=17 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 96711-19014 |
AT140,CT140,RT141,ST140,TT142..EXS,GT,GTT,GX,GXA,SX 外径=17.0,内径=13.0,ID=14,OD=17 |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06004 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX ID=14,OD=17 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12040 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44345-12050 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44345-12030 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| 44345-12010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX 長さ=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-14050 |
TT142..SX |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96711-19013 |
AT140,TT142..GX,SX |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40814 | ||||
| 94511-01200 | ||||
