TT142-TSPSE (1982)
Toyota Corona
(8201-8508)AT141,TT142..GT,SX

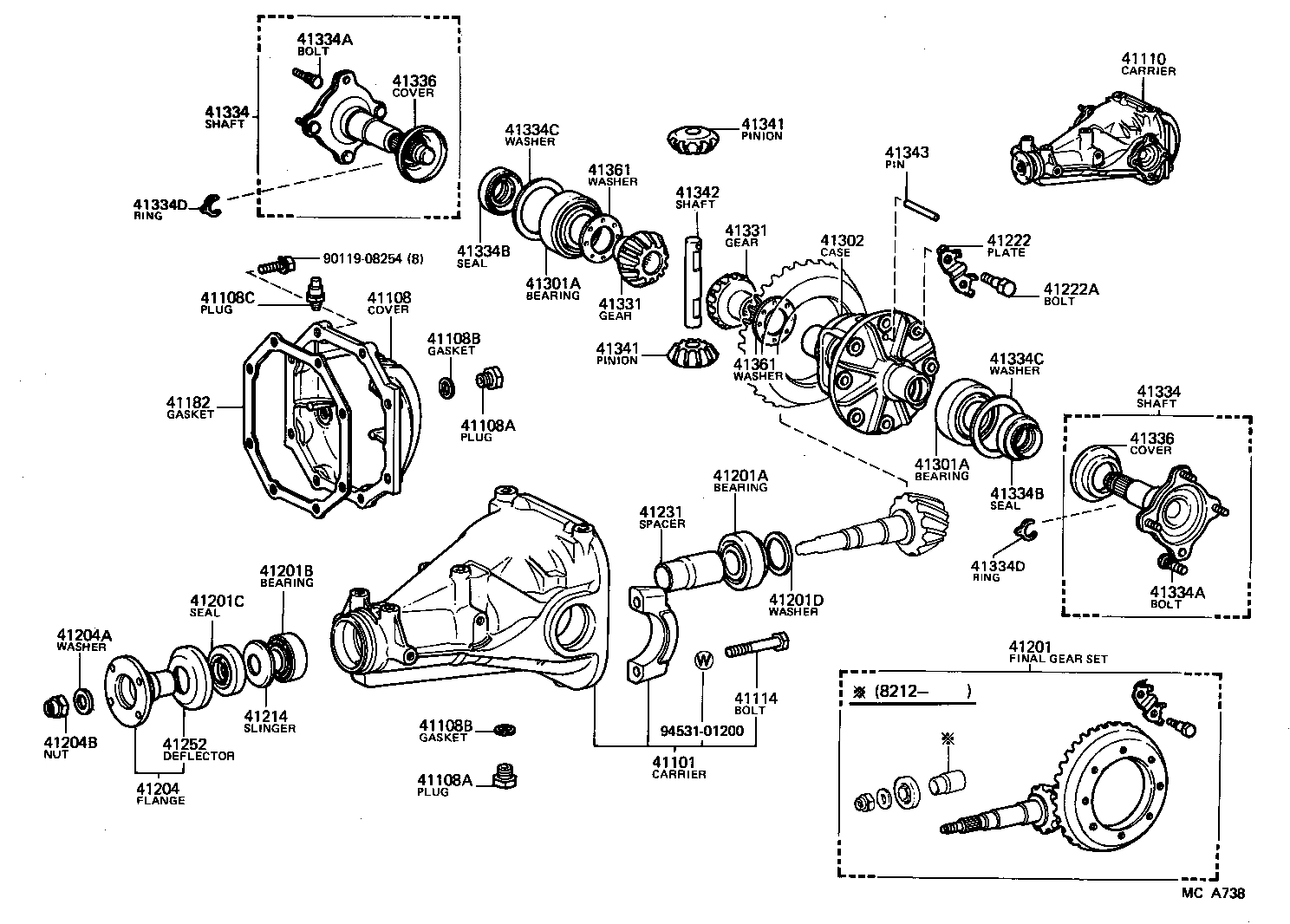

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AT141,RT141,TT142 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-14230 |
TT142..SX |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29196 |
TT142..SX |
1 | ||
| 41201-29197 |
TT142..SX *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-34049 |
TT142..SX |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30002 |
TT142..SX |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38019 |
AT141,TT142..GT,SX |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35404 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35436 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35401 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35396 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35402 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35439 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35403 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35399 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35438 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TT142..SX |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
TT142..SX |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AT14#,CT140,141,RT141,ST140,TT142 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-22010 |
TT142..SX |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-14030 |
AT141,TT142..GT,SX |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
TT142..SX |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
TT142..SX |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22010 |
TT142..SX |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TT142..SX |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
TT142..SX 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22040 |
TT142..SX 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22160 |
TT142..SX 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| 41361-22140 |
TT142..SX 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22030 |
TT142..SX 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22020 |
TT142..SX 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
TT142..SX 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22040 |
TT142..SX 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22160 |
TT142..SX 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| 41361-22140 |
TT142..SX 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22030 |
TT142..SX 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22020 |
TT142..SX 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
