TT142-TSPQZ (1982)
Toyota Corona
Production
Oct 1982
-
Aug 1985
Engine
3TGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8508)HT

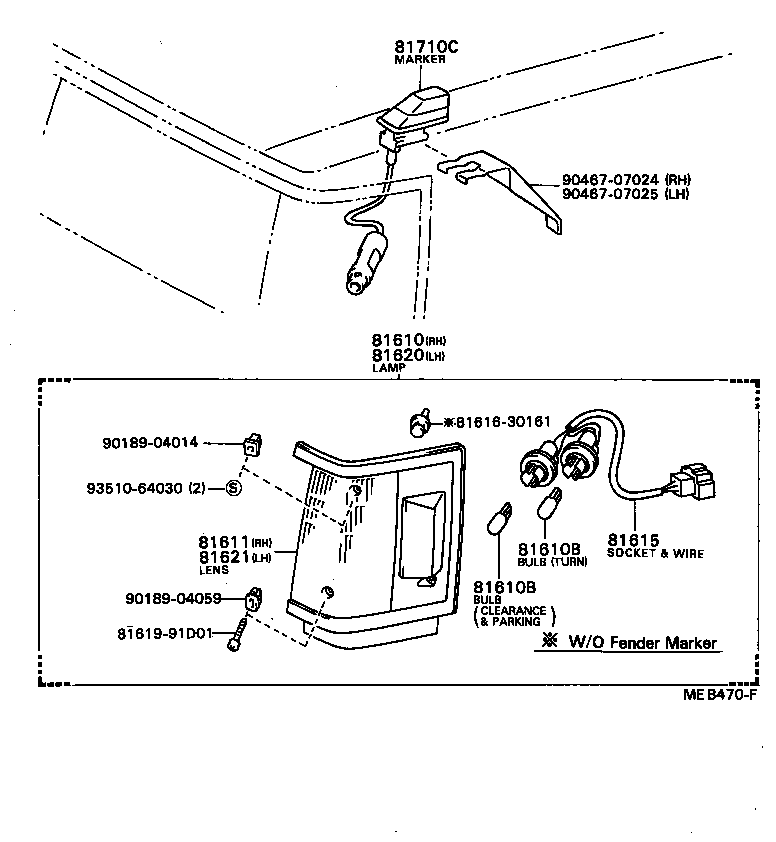

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-29355 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 81610-29285 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT141,RT141,ST140,TT142..HT 12V 5W,12V 5W(CLEARANCE);12V 5W(TURN) |
2 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT141,RT141,ST140,TT142..HT 12V 5W,12V 5W(CLEARANCE);12V 5W(TURN) |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-91D03 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 81611-91D01 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-91D01 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-29275 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 81620-29345 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-91D01 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 81621-91D03 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 81710C - MARKER ASSY, FENDER | ||||
| 81710-91D01 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
2 | ||
| Common parts | ||||
| 81616-30161 | ||||
| 81619-91D01 | ||||
| 90189-04014 | ||||
| 90189-04059 | ||||
| 90467-07024 | ||||
| 90467-07025 | ||||
| 93510-64030 | ||||
