TT142-TSPQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)AT141,RT141,TT142

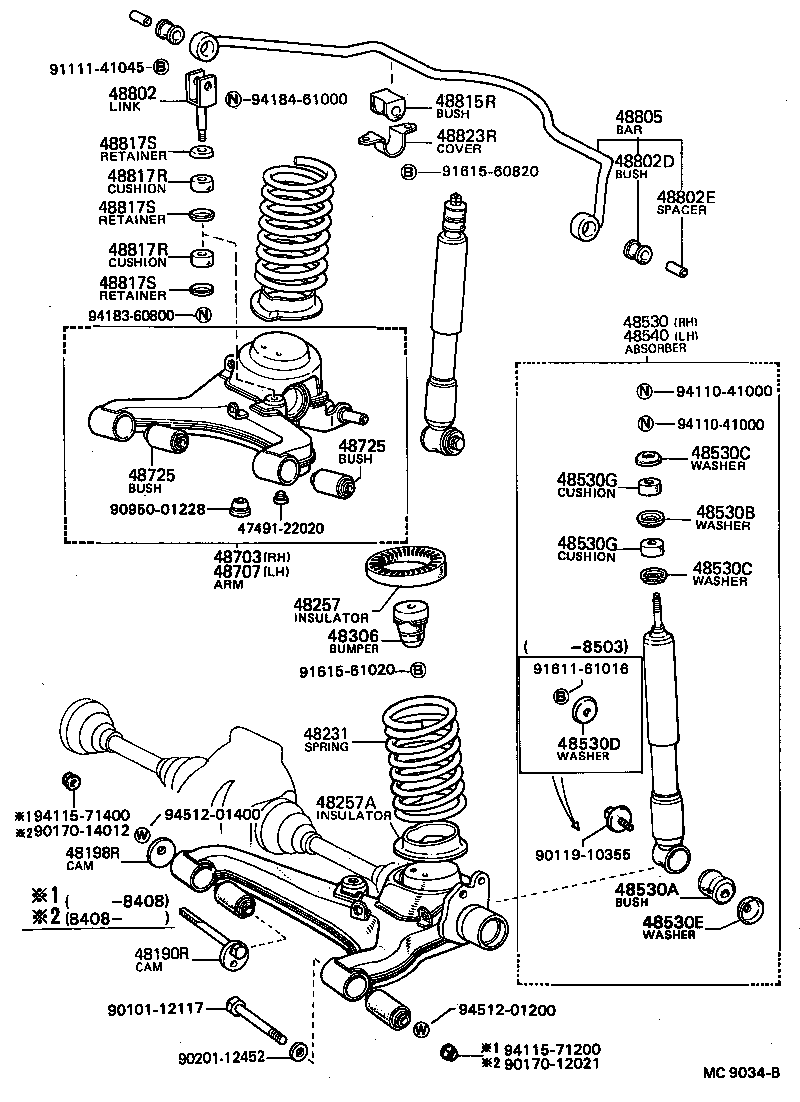

Click highlighted areas on diagram

diagram 4749122020 48190R 48198R 48231 48257 48257A 48306 48530 48530A 48530B 48530C 48530C 48530D 48530E 48530G 48530G 48540 48703 48707 48725 48725 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48823R 9010112117 9011910355 9017012021 9017014012 9020112452 9095001228 9111141045 9161161016 9161560820 9161561020 9411041000 9411041000 9411571200 9411571400 9418360800 9418461000 9451201200 9451201400
Part # Description Qty Price
48190R - CAM ASSY, CAMBER ADJUST
48190-22010

AT141,RT141,TT142

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-22010

AT141,RT141,TT142

 2
48231 - SPRING, COIL, REAR
48231-14410

RT141,TT142

 2
48231-14660

AT141,TT142

 2
48257 - INSULATOR, REAR COIL SPRING
48257-22030

AT141,RT141,TT142

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-22040

RT141,TT142

RH

 1
48258-22050

AT141,RT141,TT142

LH

 1
48258-22041

AT141,TT142

RH

 1
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-22060

AT141,RT141,TT142

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80033

AT141,TT142..GT,GTT

 1
48531-19845

RT141,TT142

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02075

AT141,TT142

 2
90948-02050

AT140,CT14#,RT141,ST140,TT14#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

AT141,CT147,KT147,RT141,TT14#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

AT141,CT147,KT147,RT141,TT14#

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01019

AT141,RT141,TT142

LWR

 2
90948-01003

AT141,RT141,TT142

UPR

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01019

AT141,RT141,TT142

LWR

 2
90948-01003

AT141,RT141,TT142

UPR

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19845

RT141,TT142

 1
48531-80033

AT141,TT142..GT,GTT

 1
48703 - ARM SUB-ASSY, REAR SUSPENSION, RH
48703-22900

AT141,RT141,TT142..GT,GTT

 1
48703-22904

AT141,TT142

 1
48707 - ARM SUB-ASSY, REAR SUSPENSION, LH
48707-22904

AT141,TT142

 1
48707-22900

AT141,RT141,TT142..GT,GTT

 1
48725 - BUSH, LOWER CONTROL ARM
48725-22030

AT141,RT141,TT142

OUTER

 2
48725-22040

AT141,RT141,TT142

INNER

 2
48725 - BUSH, LOWER CONTROL ARM
48725-22030

AT141,RT141,TT142

OUTER

 2
48725-22040

AT141,RT141,TT142

INNER

 2
48802 - LINK SUB-ASSY, STABILIZER
48802-14030

AT141,RT141,TT142

 2
48802D - BUSH, STABILIZER LINK
90385-11021

AT141,RT141,ST140,TT142

 4
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

AT141,RT141,ST140,TT142

 4
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-14170

AT141,TT142

W/POWER STEERING,D=15

 1
48805-14140

AT141,RT141,TT142

D=14

 1
48805-14170

AT141,TT142..GT,GTT

W/POWER STEERING,D=15

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-14030

AT141,TT142..GT,GTT

W/POWER STEERING,ID=15

 2
48815-14030

AT141,TT142

W/POWER STEERING,ID=15

 2
48815-14060

AT141,RT141,ST140,TT142

ID=14

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-12010

AT141,RT141,ST140,TT142

 4
48817R - CUSHION, STABILIZER(FOR REAR)
48817-12010

AT141,RT141,ST140,TT142

 4
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

AT141,RT141,ST140,TT142

T=1.2

 4
90948-02025

AT141,RT141,ST140,TT142

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

AT141,RT141,ST140,TT142

T=1.2

 4
90948-02025

AT141,RT141,ST140,TT142

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

AT141,RT141,ST140,TT142

T=1.2

 4
90948-02025

AT141,RT141,ST140,TT142

T=1.0

 2
48823R - COVER, STABILIZER LINK(FOR REAR)
48832-14020

AT141,RT141,TT142

 2
Common parts
47491-22020
90101-12117
90119-10355
90170-12021
90170-14012
90201-12452
90950-01228
91111-41045
91611-61016
91615-60820
91615-61020
94110-41000
94115-71200
94115-71400
94183-60800
94184-61000
94512-01200
94512-01400
