TT142-TSPQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

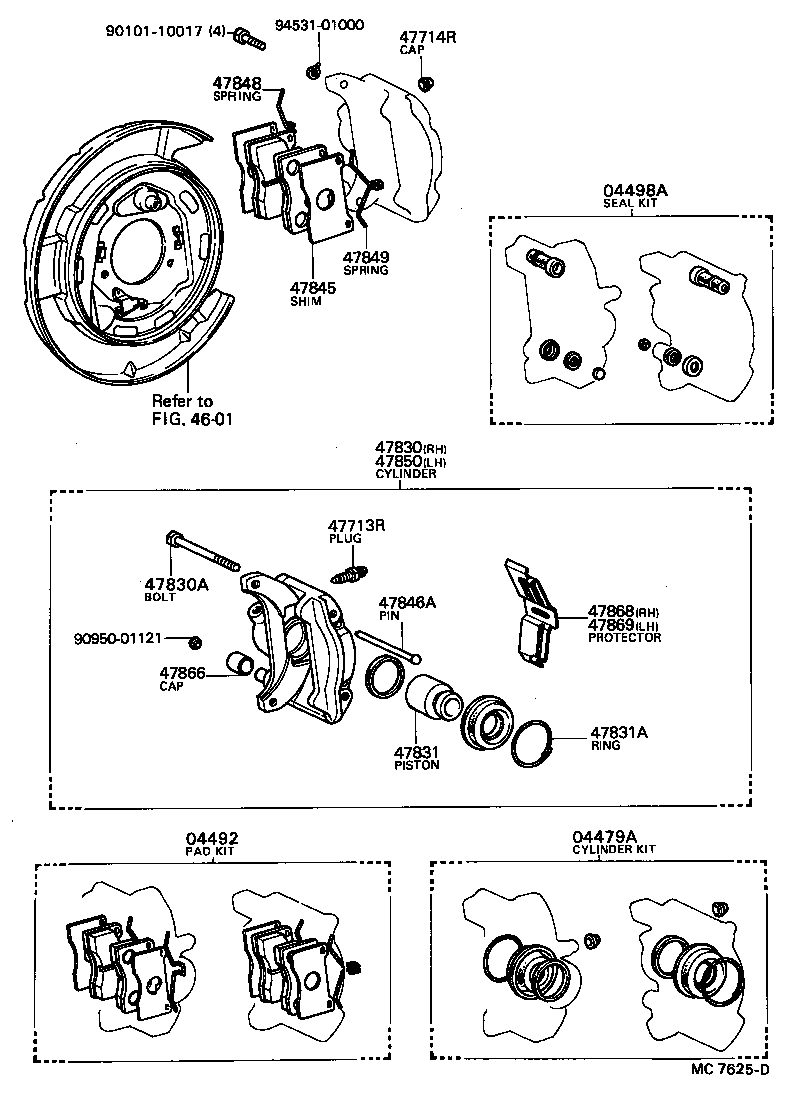

ILLUST NO. 1 OF 2(8201-8508)GT,GTT

Click highlighted areas on diagram

diagram 04479A 04492 04498A 4601 47713R 47714R 47830 47830A 47831 47831A 47845 47846A 47848 47849 47850 47866 47868 47869 9010110017 9095001121 9453101000
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-30040

AT141,RT141,TT142..GT,GTT

 1
04498A - SEAL KIT, DISC BRAKE, REAR
04498-30010

AT141,RT141,TT142..GT,GTT

 1
47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12040

AT141,RT141,TT142..GT,GTT

 1
47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AT141,RT141,TT142..GT,GTT

 2
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47730-22090

AT141,RT141,TT142..GT,GTT

 1
47830A - BOLT(FOR REAR DISC BRAKE)
90101-10481

AT141,RT141,TT142..GT,GTT

 4
47831 - PISTON, REAR DISC BRAKE
47731-30030

AT141,RT141,TT142..GT,GTT

 2
47831A - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-48044

AT141,RT141,TT142..GT,GTT

 2
47846A - PIN, W/HOLE(FOR REAR DISC BRAKE PAD)
90240-06133

AT141,RT141,TT142..GT,GTT

 1
47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-30030

AT141,RT141,TT142..GT,GTT

 2
47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-30010

AT141,RT141,TT142..GT,GTT

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-22090

AT141,RT141,TT142..GT,GTT

 1
47866 - CAP, TORQUE PLATE PIN, REAR
47766-12010

AT141,RT141,TT142..GT,GTT

 2
47868 - PROTECTOR, DISC BRAKE PAD, REAR RH
47767-30020

AT141,RT141,TT142..GT,GTT

 1
47869 - PROTECTOR, DISC BRAKE PAD, REAR LH
47767-30020

AT141,RT141,TT142..GT,GTT

 1
Common parts
90101-10017
90950-01121
94531-01000
Linked diagrams
4601

ILLUST NO. 2 OF 2(8201-8508)GT,GTT

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
