TT142-TSPQZ (1982)
Toyota Corona
Production
Oct 1982
-
Aug 1985
Engine
3TGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8508)3TGTEU

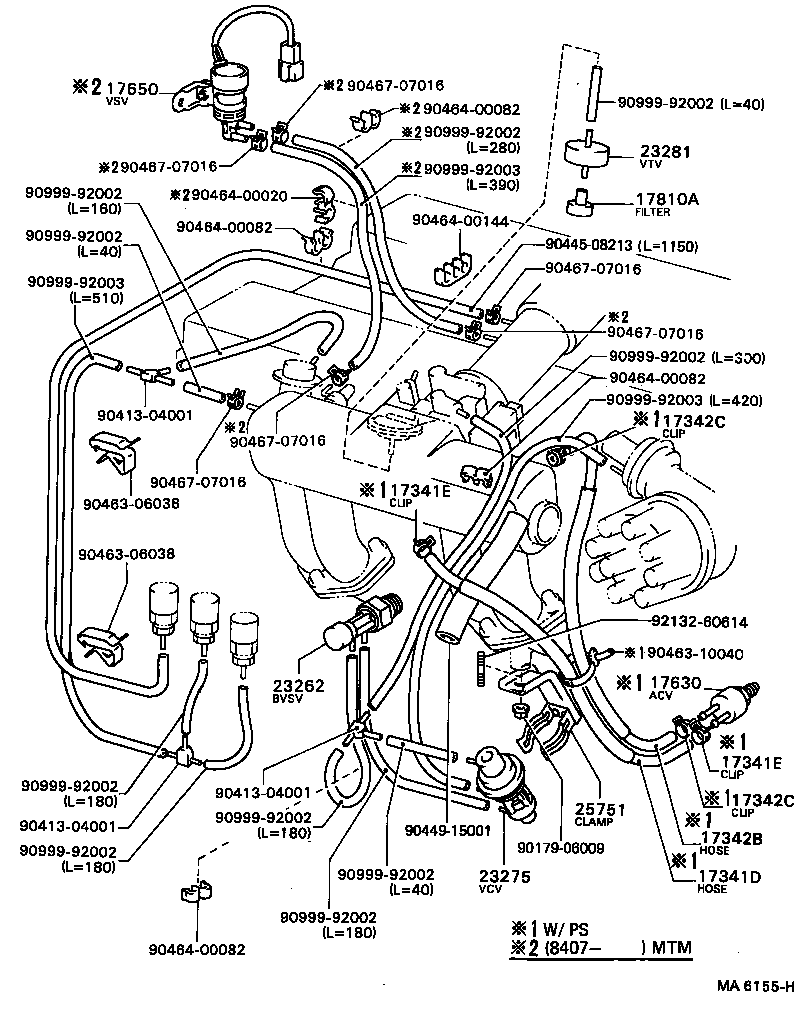

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17343-88280 |
3TGTEU..TT142 W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17344-88280 |
3TGTEU..TT142 W/PS |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28010 |
3T#..TT142 W/PS |
1 | ||
| 17630-70010 |
3T#..TT142 W/PS |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
3TGTEU..TT142 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05065 |
3TGTEU..TT142..4FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03118 |
3TGTEU..TT142 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
3TGTEU..TT142 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-88280 |
3TGTEU..TT142 |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90413-04001 | ||||
| 90445-08213 | ||||
| 90449-15001 | ||||
| 90463-06038 | ||||
| 90463-10040 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00144 | ||||
| 90467-07016 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 92132-60614 | ||||
