TT142-TSMSE (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

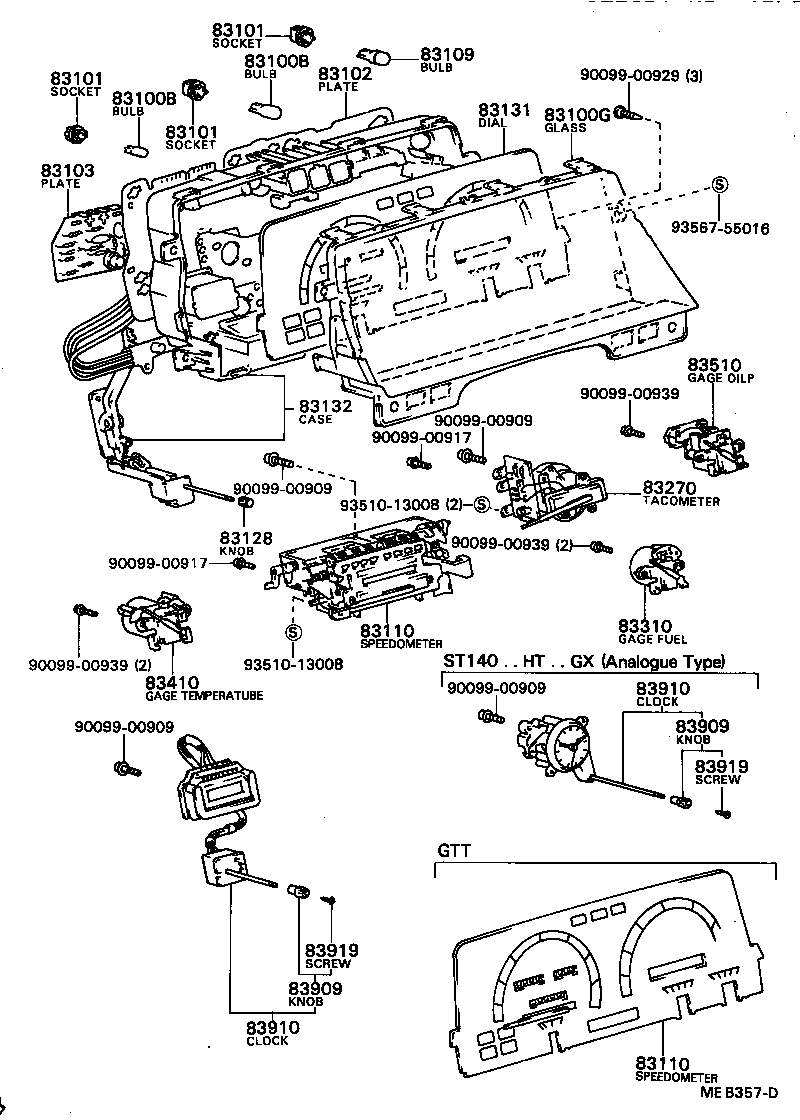

ILLUST NO. 1 OF 2(8201-8508)AT141,ST140,TT142..HT..EXS,GT,GTT,GX,SX

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83101 83102 83103 83109 83110 83110 83128 83131 83132 83270 83310 83410 83510 83909 83909 83910 83910 83919 83919 9009900909 9009900909 9009900909 9009900909 9009900917 9009900917 9009900929 9009900939 9009900939 9009900939 9351013008 9351013008 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 3.4W,12V 3.4W

 11
90981-11018

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 14
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 3.4W,12V 3.4W

 11
90981-11018

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 14
83100G - GLASS, COMBINATION METER
83133-2B570

ST140,TT142..HT..(EXS,GTT,SX)

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

AT141,RT141,ST140,TT142..HT

BULB:12V 3.4W(OD=18)

 8
83101-14040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

BULB:12V 1.4W(D=11.3)

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

AT141,RT141,ST140,TT142..HT

BULB:12V 3.4W(OD=18)

 8
83101-14040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

BULB:12V 1.4W(D=11.3)

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

AT141,RT141,ST140,TT142..HT

BULB:12V 3.4W(OD=18)

 8
83101-14040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

BULB:12V 1.4W(D=11.3)

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-2B570

ST140,TT142..HT..(EXS,SX)

 1
83247-2B571

ST140,TT142..HT..(EXS,SX)

 1
83110 - SPEEDOMETER ASSY
83110-14330

ST140,TT142..HT..(EXS,GX,SX)

 1
83110 - SPEEDOMETER ASSY
83110-14330

ST140,TT142..HT..(EXS,GX,SX)

 1
83128 - KNOB, TRIP COUNTER
83128-14510

AT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX)

 1
83131 - DIAL, METER, NO.1
83131-2B570

ST140,TT142..HT..(EXS,SX)

 1
83131-2B571

ST140,TT142..HT..(EXS,SX)

 1
83132 - CASE, COMBINATION METER
83132-2B570

ST140,TT142..HT..(EXS,SX)

 1
83132-2B570

ST140,TT142..HT..(EXS,SX)

 1
83132-2B571

ST140,TT142..HT..(EXS,SX)

 1
83270 - TACHOMETER ASSY, ENGINE
83242-14510

ST140,TT142..HT..(EXS,GX,SX)

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14510

ST140,TT142..HT..(EXS,GX,SX)

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-14510

ST140,TT142..HT..(EXS,GX,SX)

 1
83244-14530

ST140,TT142..HT..(EXS,GX,SX)

 1
83244-1B010

ST140,TT142..HT..(EXS,GX,SX)

 1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83246-14510

ST140,TT142..HT..(EXS,SX)

 1
83909 - KNOB, CLOCK
83909-22180

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,SX)

 1
83909 - KNOB, CLOCK
83909-22180

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,SX)

 1
83910 - CLOCK ASSY
83910-14300

AT141,ST140,TT142..HT..(EXS,GT,GTT,SX)

DIGITAL

 1
83910 - CLOCK ASSY
83910-14300

AT141,ST140,TT142..HT..(EXS,GT,GTT,SX)

DIGITAL

 1
83919 - SCREW, CLOCK
83919-12230

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

DIGITAL

 1
83919 - SCREW, CLOCK
83919-12230

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

DIGITAL

 1
Common parts
90099-00909
90099-00917
90099-00929
90099-00939
93510-13008
93567-55016

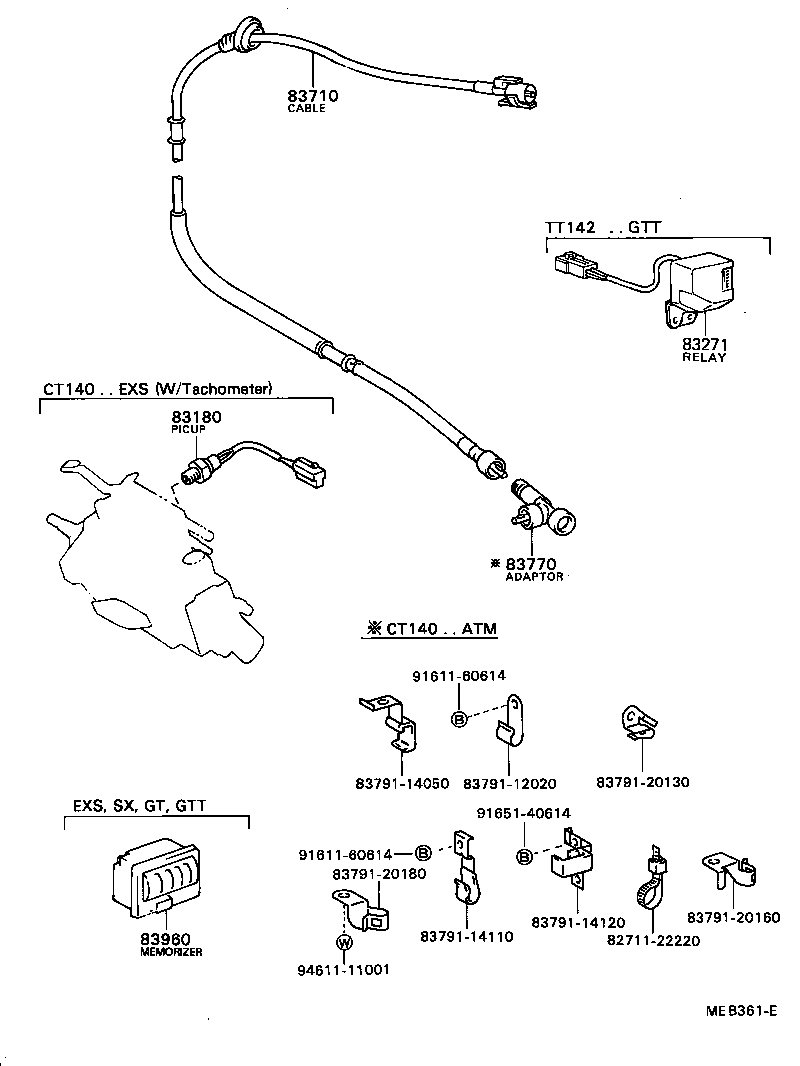

ILLUST NO. 2 OF 2(8201- )

Click highlighted areas on diagram

diagram 8271122220 83180 83271 83710 83770 8379112020 8379114050 8379114110 8379114120 8379120130 8379120160 8379120180 83960 9161160614 9161160614 9165140614 9461111001
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-14420

AT141;TT142..HT..5F

 1
83960 - MEMORIZER ASSY
83960-2001001

CT140,RT141,ST140,TT142..EXS,GT,GTT,SX

BLACK,BLACK,TRIM2#

 1
83960-2001006

CT140,RT141,ST140,TT142..EXS,GT,GTT,SX

DARK BROWN,BROWN,TRIM4#

 1
Common parts
82711-22220
83791-12020
83791-14050
83791-14110
83791-14120
83791-20130
83791-20160
83791-20180
91611-60614
91651-40614
94611-11001
