TT142-TSMSE (1982)
Toyota Corona

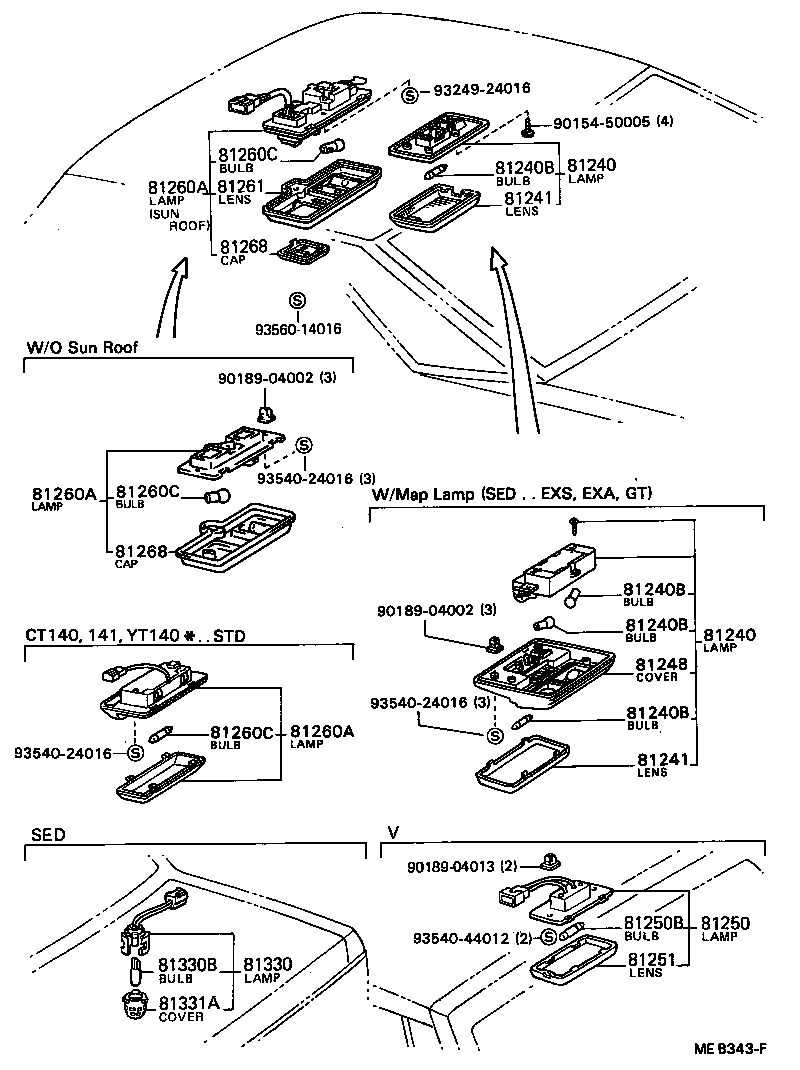

ILLUST NO. 1 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1601008 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) IVORY,IVORY,TRIM4# |
1 | ||
| 81240-1601013 |
AT141,RT141,ST140,TT142..HT GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1601008 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) IVORY,IVORY,TRIM4# |
1 | ||
| 81240-1601013 |
AT141,RT141,ST140,TT142..HT GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 10W,12V 10W,ROOM LAMP |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 10W,12V 10W,ROOM LAMP |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 10W,12V 10W,ROOM LAMP |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 10W,12V 10W,ROOM LAMP |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-16010 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-16010 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81260-2006003 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81260-2006003 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81260-2006003 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11019 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX 12V 10W,W/SUN ROOF |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11019 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX 12V 10W,W/SUN ROOF |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11019 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX 12V 10W,W/SUN ROOF |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2006003 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81261-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81268 - CAP MAP LAMP | ||||
| 81268-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81268-2006003 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| 81268 - CAP MAP LAMP | ||||
| 81268-2006008 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,SX W/SUN ROOF,IVORY,IVORY,TRIM4# |
1 | ||
| 81268-2006003 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX W/SUN ROOF,GRAY,GRAY,TRIM2#,8# |
1 | ||
| Common parts | ||||
| 90154-50005 | ||||
| 90189-04002 | ||||
| 90189-04013 | ||||
| 93249-24016 | ||||
| 93540-24016 | ||||
| 93540-44012 | ||||
| 93560-14016 | ||||

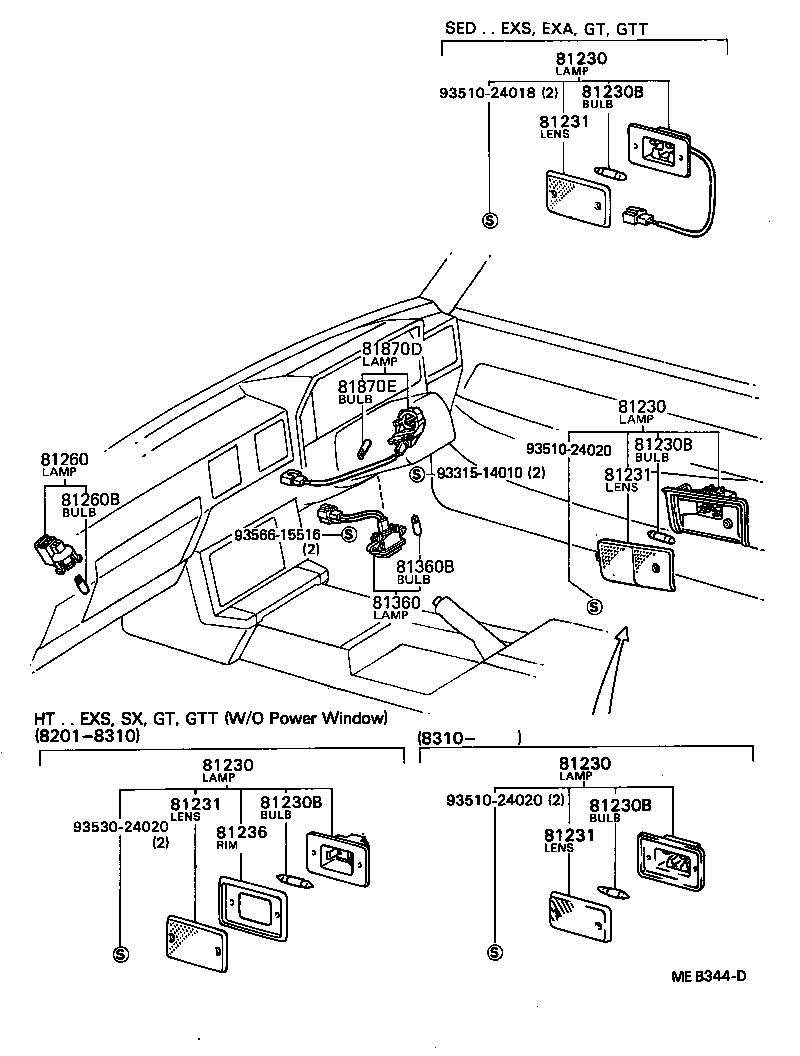

ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
TT142..HT..SX 12V 5W,12V 5W |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
TT142..HT..SX 12V 5W,12V 5W |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
TT142..HT..SX 12V 5W,12V 5W |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
TT142..HT..SX 12V 5W,12V 5W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81251-16010 |
ST140,TT142..HT..(EXS,GTT,SX) |
2 | ||
| 81231-30010 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81251-16010 |
ST140,TT142..HT..(EXS,GTT,SX) |
2 | ||
| 81231-30010 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81251-16010 |
ST140,TT142..HT..(EXS,GTT,SX) |
2 | ||
| 81231-30010 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81251-16010 |
ST140,TT142..HT..(EXS,GTT,SX) |
2 | ||
| 81231-30010 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81236 - RIM, COURTESY LAMP | ||||
| 81236-30010 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
2 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22070 |
AT14#,CT140,KT147,RT141,ST140,TT14#..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
AT14#,CT140,KT147,RT141,ST140,TT14#..EXA,EXS,GT,GTT,GX,GXA,SX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93510-24018 | ||||
| 93510-24020 | ||||
| 93530-24020 | ||||
| 93566-15516 | ||||
