TT142-TSMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)3TGTEU

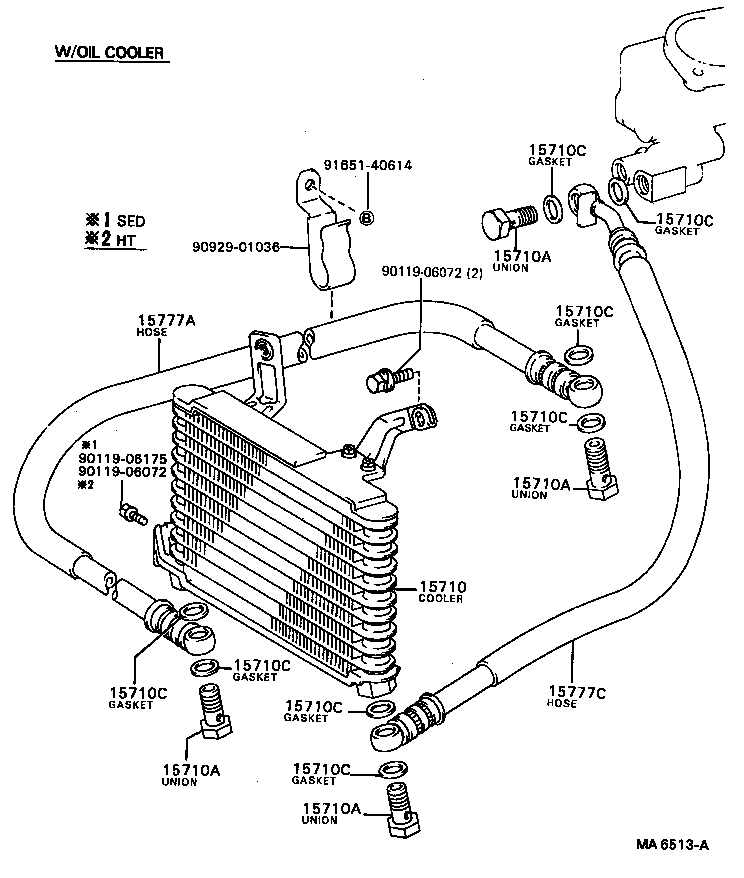

Click highlighted areas on diagram

diagram 15710 15710A 15710A 15710A 15710A 15710C 15710C 15710C 15710C 15710C 15710C 15710C 15710C 15777A 15777C 9011906072 9011906072 9011906175 9092901036 9165140614
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15700-28040

3TGTEU..TT142..HT

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3TGTEU..TT142

ENGINE SIDE

 2
90401-14003

3TGTEU..TT142

OIL COOLER SIDE

 2
90401-14091

3TGTEU..TT142

 4
90401-14091

3TGTEU..TT142

ENGINE SIDE

 2
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3TGTEU..TT142

ENGINE SIDE

 2
90401-14003

3TGTEU..TT142

OIL COOLER SIDE

 2
90401-14091

3TGTEU..TT142

 4
90401-14091

3TGTEU..TT142

ENGINE SIDE

 2
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3TGTEU..TT142

ENGINE SIDE

 2
90401-14003

3TGTEU..TT142

OIL COOLER SIDE

 2
90401-14091

3TGTEU..TT142

 4
90401-14091

3TGTEU..TT142

ENGINE SIDE

 2
15710A - BOLT, UNION(FOR OIL COOLER)
90401-14003

3TGTEU..TT142

ENGINE SIDE

 2
90401-14003

3TGTEU..TT142

OIL COOLER SIDE

 2
90401-14091

3TGTEU..TT142

 4
90401-14091

3TGTEU..TT142

ENGINE SIDE

 2
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15710C - GASKET(FOR OIL COOLER)
90430-14235

3TGTEU..TT142

 8
15777A - HOSE, OIL COOLER
15777-28010

3TGTEU..TT142

 1
15777C - HOSE, OIL COOLER
15778-28010

3TGTEU..TT142

 1
Common parts
90119-06072
90119-06175
90929-01036
91651-40614
