TT142-TEPQZ (1982)
Toyota Corona
(8201-8310)AT140,CT14#,ST140,TT14#,YT140..SED,V..3FC,4F,4FC,5F

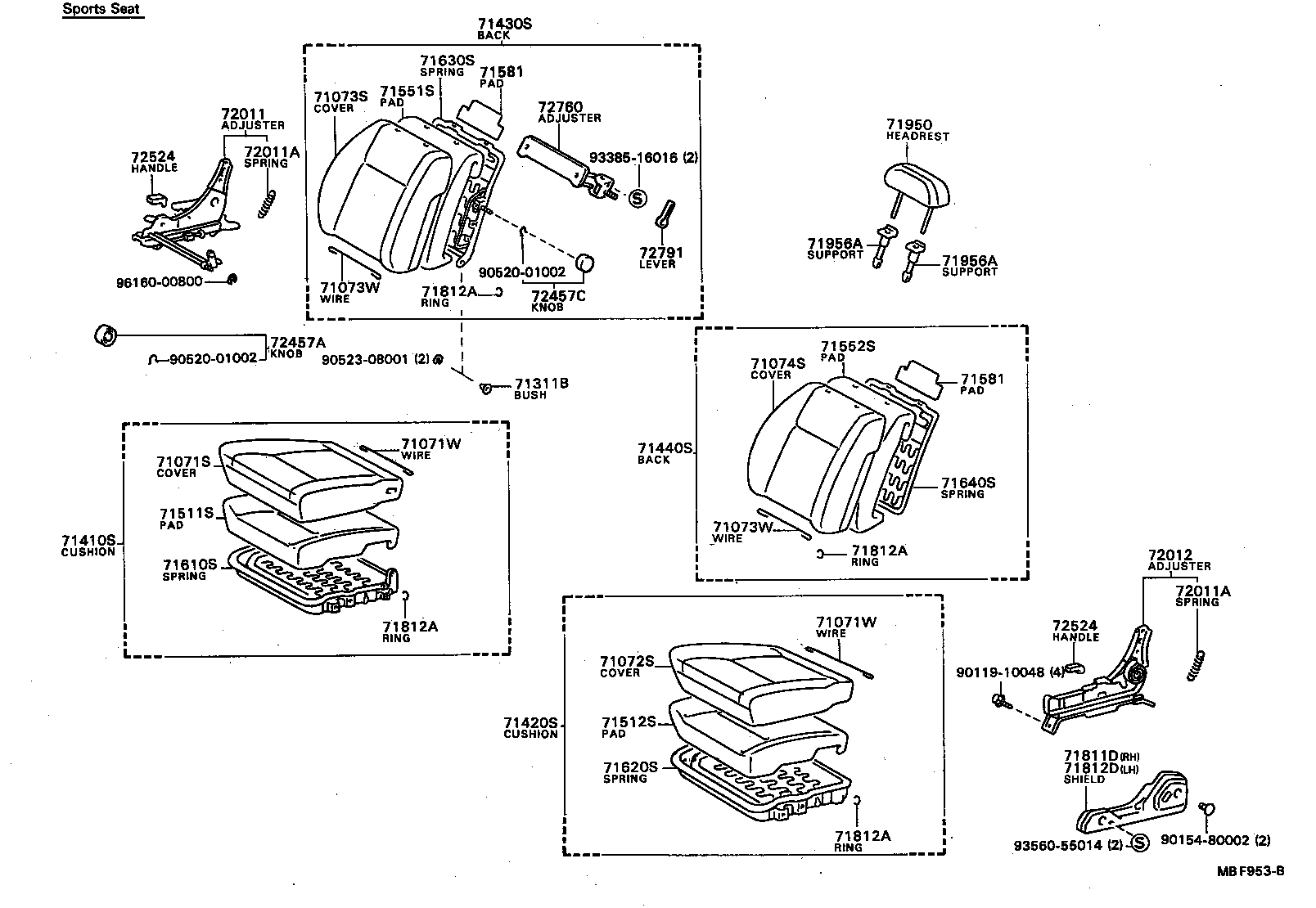

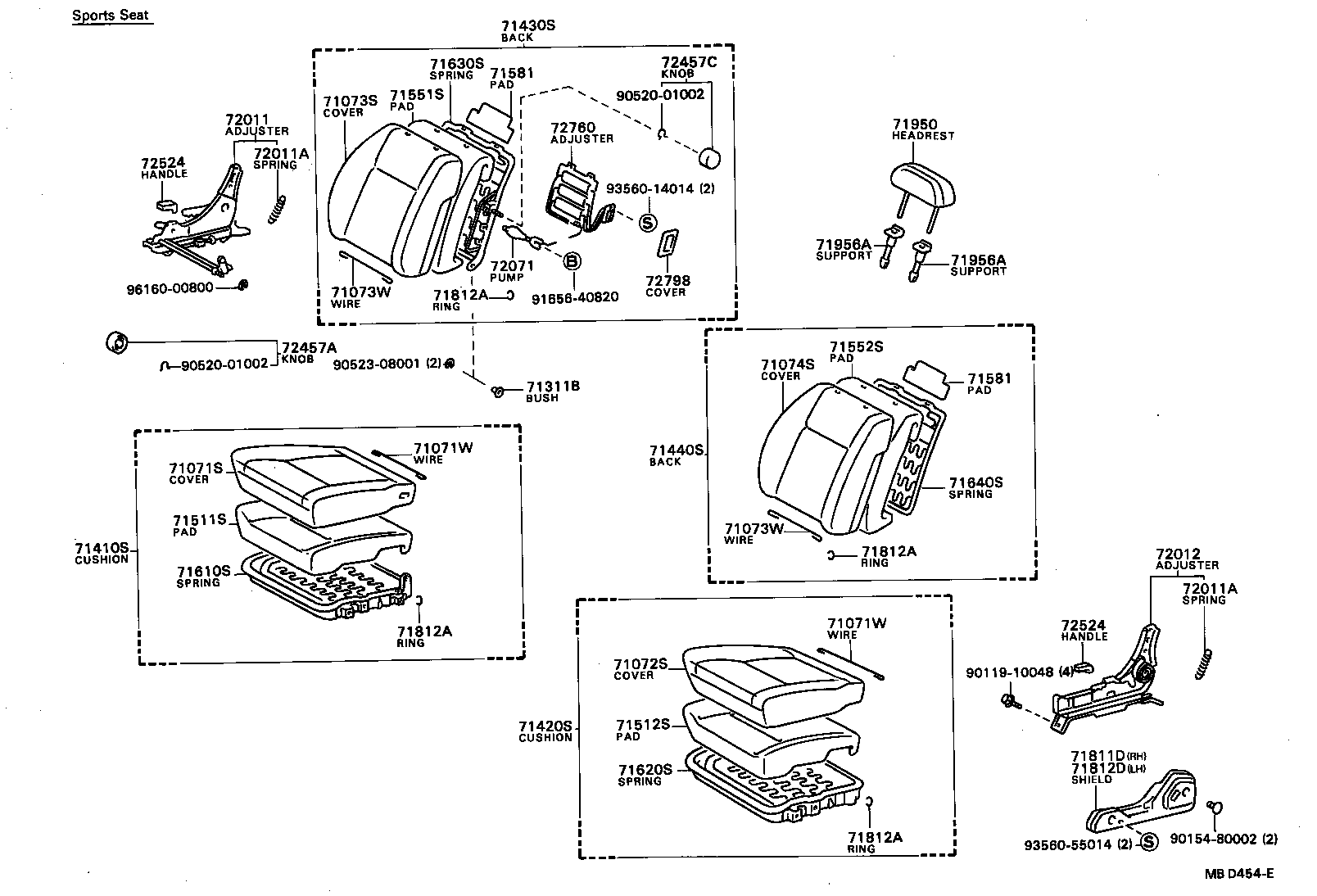

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B04006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B04004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B04001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2B041 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71071-2B031 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2051006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2051004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2051001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-20810 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71072-20511 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71073-2B09001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B091 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2063004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2063006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-20631 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71074-2063001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2061001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-20611 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AT140,CT14#,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B17004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B171 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71410-2B17001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2B172 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71410-2B17006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2057006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2057004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2057001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-20720 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71420-20571 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B12001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2B121 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71430-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2053004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2053006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2071001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2053001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-20531 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71440-20711 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20260 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20140 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
TT142..SED |
1 | ||
| 71551-14190 |
AT141,TT142..SED *SPS |
1 | ||
| 71551-20310 |
RT141,TT142..SED *SPS |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
RT141,TT142..SED |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14170 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14100 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14090 |
CT140..GX;AT140,CT147,ST140,TT14#..(SED,V)..(DLX,GTT,GX,GXA,STD,SX) |
1 | ||
| 71630-20300 |
RT141,TT142..SED *SPS |
1 | ||
| 71630-14150 |
AT141,TT142..SED *SPS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14090 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14090 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407004 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1407001 |
TT142..SED..GTT;RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407016 |
AT140,CT140,RT141,ST140,TT14#..EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407001 |
AT140,TT142..SED..(GTT,STD);CT147,RT141,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1407016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1407004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2034104 |
RT141,TT142..SED..(GT,SX) *SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2034106 |
RT141,TT142..SED..(GT,SX) *SPS,SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
TT142..SED..GTT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-20342 |
AT141,TT142..SED SPORTS SEAT,BLACK |
2 | ||
| 71910-2034101 |
TT142..SED..GTT SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1457001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
2 | ||
| 72457-1403016 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-14030 |
AT141,TT142..SED SPORTS SEAT |
1 | ||
| 72750-20040 |
RT141,TT142..SED |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202001 |
AT141,TT142..SED SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90154-80004 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 93385-16016 | ||||
| 93540-54008 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8201-8310)RT141,TT142..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B04006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B04004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B04001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2B041 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71071-2B031 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2051006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2051004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2051001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-20810 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71072-20511 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71073-2B09001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B091 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2063004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2063006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-20631 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71074-2063001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2061001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-20611 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AT140,CT14#,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B17004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B171 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71410-2B17001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2B172 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71410-2B17006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2057006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2057004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2057001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-20720 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71420-20571 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B12001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2B121 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71430-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2053004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2053006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2071001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2053001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-20531 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71440-20711 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20260 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20140 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
TT142..SED |
1 | ||
| 71551-14190 |
AT141,TT142..SED *SPS |
1 | ||
| 71551-20310 |
RT141,TT142..SED *SPS |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
RT141,TT142..SED |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14170 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14100 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14090 |
CT140..GX;AT140,CT147,ST140,TT14#..(SED,V)..(DLX,GTT,GX,GXA,STD,SX) |
1 | ||
| 71630-20300 |
RT141,TT142..SED *SPS |
1 | ||
| 71630-14150 |
AT141,TT142..SED *SPS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14090 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407004 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1407001 |
TT142..SED..GTT;RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407016 |
AT140,CT140,RT141,ST140,TT14#..EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407001 |
AT140,TT142..SED..(GTT,STD);CT147,RT141,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1407016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1407004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2034104 |
RT141,TT142..SED..(GT,SX) *SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2034106 |
RT141,TT142..SED..(GT,SX) *SPS,SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
TT142..SED..GTT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-20342 |
AT141,TT142..SED SPORTS SEAT,BLACK |
2 | ||
| 71910-2034101 |
TT142..SED..GTT SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1457001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72071 - PUMP SUB-ASSY, LUMBER SUPPORT | ||||
| 72071-2001001 |
TT142..SED..GTT BLACK,BLACK,TRIM2# |
1 | ||
| 72071-2001006 |
RT141,TT142..SED..(GT,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72071-2001004 |
RT141,TT142..SED..(GT,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
2 | ||
| 72457-1403016 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-1404001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-14030 |
AT141,TT142..SED SPORTS SEAT |
1 | ||
| 72750-20040 |
RT141,TT142..SED |
1 | ||
| 72798 - COVER, LUMBAR SUPPORT SWITCH | ||||
| 72798-2401014 |
RT141,TT142..GT,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72798-2401001 |
RT141,TT142 BLACK,BLACK,TRIM2# |
1 | ||
| 72798-2401006 |
RT141,TT142..GT,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91656-40820 | ||||
| 93560-14014 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
(8310- )SED,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B04006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B04004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B04001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2B041 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71071-2B031 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2051006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2051004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2051001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-20810 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71072-20511 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71073-2B09001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B091 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2063004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2063006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-20631 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71074-2063001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2061001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-20611 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AT140,CT14#,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B17004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B171 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71410-2B17001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2B172 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71410-2B17006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2057006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2057004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2057001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-20720 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71420-20571 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B12001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2B121 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71430-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2053004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2053006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2071001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2053001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-20531 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71440-20711 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20260 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20140 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
TT142..SED |
1 | ||
| 71551-14190 |
AT141,TT142..SED *SPS |
1 | ||
| 71551-20310 |
RT141,TT142..SED *SPS |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
RT141,TT142..SED |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14170 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14100 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14090 |
CT140..GX;AT140,CT147,ST140,TT14#..(SED,V)..(DLX,GTT,GX,GXA,STD,SX) |
1 | ||
| 71630-20300 |
RT141,TT142..SED *SPS |
1 | ||
| 71630-14150 |
AT141,TT142..SED *SPS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14090 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407004 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1407001 |
TT142..SED..GTT;RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407016 |
AT140,CT140,RT141,ST140,TT14#..EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407001 |
AT140,TT142..SED..(GTT,STD);CT147,RT141,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1407016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1407004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2034104 |
RT141,TT142..SED..(GT,SX) *SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2034106 |
RT141,TT142..SED..(GT,SX) *SPS,SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
TT142..SED..GTT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-20342 |
AT141,TT142..SED SPORTS SEAT,BLACK |
2 | ||
| 71910-2034101 |
TT142..SED..GTT SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1457001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
2 | ||
| 72457-1403016 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90119-10116 | ||||
| 90119-10822 | ||||
| 90154-80002 | ||||
| 90154-80004 | ||||
| 90468-05085 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 93540-54008 | ||||
| 93540-55010 | ||||
| 93560-14012 | ||||
| 96160-00800 | ||||
(8310-8508)AT141,TT142..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B04006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B04004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B04001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2B041 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71071-2B031 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=530,WD=2.0 |
4 | ||
| 90580-20094 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=336,WD=2.0 |
2 | ||
| 90580-20094 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED L=336,WD=2.0 |
2 | ||
| 90580-20106 |
AT14#,CT147,KT147,ST140,TT142..SED,V L=530,WD=2.0 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2051006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2051004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2051001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-20810 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71072-20511 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71073-2B09001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2B091 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20099 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V L=430,WD=2.0 |
4 | ||
| 90580-20020 |
AT14#,ST140,TT142..SED L=420,WD=2.0 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2063004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2063006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-20631 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71074-2063001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2061001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-20611 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AT140,CT14#,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B17004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B171 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71410-2B17001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2B172 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71410-2B17006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2057006 |
RT141,TT142..SED..(GT,SX) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2057004 |
RT141,TT142..SED..(GT,SX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2057001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-20720 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71420-20571 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B05006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B05004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B12001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2B121 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71430-2B051 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71430-2B05001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2053004 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2053006 |
RT141,TT142..SED..(GT,SX) *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2071001 |
TT142..SED..GTT FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2053001 |
TT142..SED..GTT *SPS,FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-20531 |
AT141,TT142..SED *SPS,FB,BLACK |
1 | ||
| 71440-20711 |
AT141,TT142..SED FB,BLACK |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20260 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20140 |
RT141,TT142..SED |
1 | ||
| 71512-20140 |
AT141,TT142..SED |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
TT142..SED |
1 | ||
| 71551-14190 |
AT141,TT142..SED *SPS |
1 | ||
| 71551-20310 |
RT141,TT142..SED *SPS |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20290 |
RT141,TT142..SED |
1 | ||
| 71551-20290 |
AT141,TT142..SED |
1 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14170 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14100 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14090 |
CT140..GX;AT140,CT147,ST140,TT14#..(SED,V)..(DLX,GTT,GX,GXA,STD,SX) |
1 | ||
| 71630-20300 |
RT141,TT142..SED *SPS |
1 | ||
| 71630-14150 |
AT141,TT142..SED *SPS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14090 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407004 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1407001 |
TT142..SED..GTT;RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407016 |
AT140,CT140,RT141,ST140,TT14#..EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407001 |
AT140,TT142..SED..(GTT,STD);CT147,RT141,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1407016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1407004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2034104 |
RT141,TT142..SED..(GT,SX) *SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2034106 |
RT141,TT142..SED..(GT,SX) *SPS,SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
TT142..SED..GTT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-20342 |
AT141,TT142..SED SPORTS SEAT,BLACK |
2 | ||
| 71910-2034101 |
TT142..SED..GTT SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1457001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1402005 |
AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1409001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1409014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402001 |
CT147,TT147;AT140,TT142..SED..(GTT,STD) W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1402014 |
AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX) W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20070 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX) |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14190 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142..SED |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
2 | ||
| 72457-1403016 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-1404001 |
AT141,TT142..SED BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX RH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401014 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401036 |
AT140,CT140,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX LH,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401001 |
RT141,ST140,TT14#..HT,V;AT140,TT142..SED..(GTT,STD) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-14030 |
AT141,TT142..SED SPORTS SEAT |
1 | ||
| 72750-20040 |
RT141,TT142..SED |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202001 |
AT141,TT142..SED SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
