TT142-TEPQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8310)ATM ; (8310- )AT140,ST140,YT140..ATM

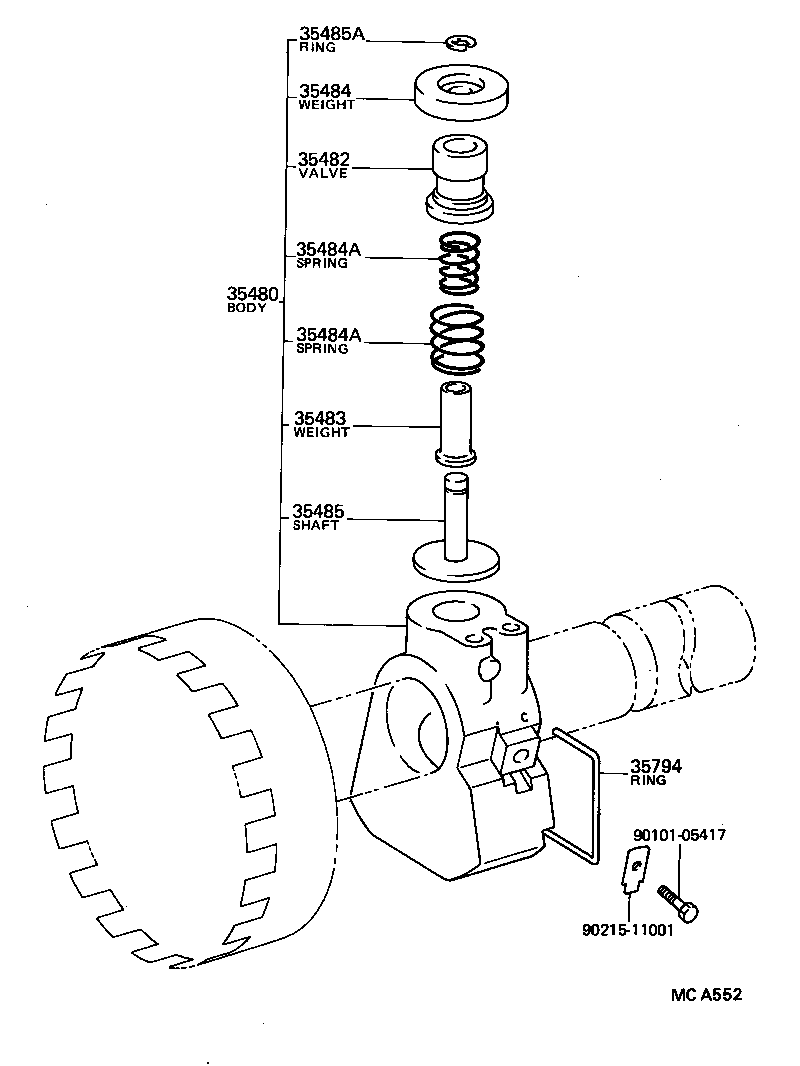

Click highlighted areas on diagram

diagram 35480 35482 35484 35484A 35485 35485A 35794 9010105417 9021511001
Part # Description Qty Price
35480 - GOVERNOR
35480-30060

ST140,TT14#..ATM

 1
35480-14010

TT142..4FC

 1
35482 - VALVE, GOVERNOR
35482-22010

ST140,TT14#..ATM

 1
35482-14010

TT142..4FC

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

AT140,KT147,ST140,TT14#..ATM

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

AT140,ST140,TT14#,YT140..ATM

 1
90501-08051

TT142..4FC

OUTER

 1
90501-09049

TT142..4FC

INNER

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

AT140,CT140,ST140,TT14#,YT140..ATM

 1
35485-14010

TT142..4FC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
Common parts
90101-05417
90215-11001

(8310-8508)TT142..4FC

Click highlighted areas on diagram

diagram 35480 35482 35483 35484 35484A 35484A 35485 35485A 35794 9010105417 9021511001
Part # Description Qty Price
35480 - GOVERNOR
35480-30060

ST140,TT14#..ATM

 1
35480-14010

TT142..4FC

 1
35482 - VALVE, GOVERNOR
35482-22010

ST140,TT14#..ATM

 1
35482-14010

TT142..4FC

 1
35483 - WEIGHT, GOVERNOR, INNER
35483-14010

TT142..4FC

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

AT140,KT147,ST140,TT14#..ATM

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

AT140,ST140,TT14#,YT140..ATM

 1
90501-08051

TT142..4FC

OUTER

 1
90501-09049

TT142..4FC

INNER

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

AT140,ST140,TT14#,YT140..ATM

 1
90501-08051

TT142..4FC

OUTER

 1
90501-09049

TT142..4FC

INNER

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

AT140,CT140,ST140,TT14#,YT140..ATM

 1
35485-14010

TT142..4FC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
Common parts
90101-05417
90215-11001
