TT142-TEPQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)4FC..GTT

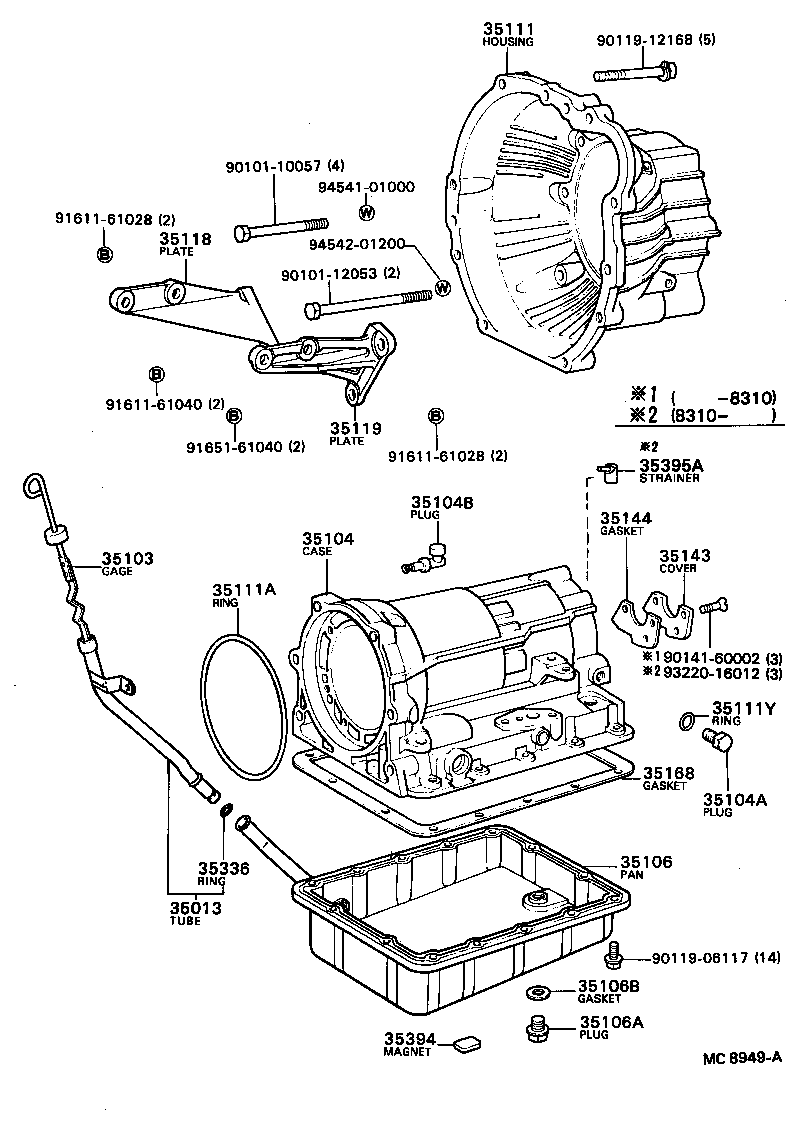

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 35395A 9010110057 9010112053 9011906117 9011912168 9014160002 9161161028 9161161028 9161161040 9165161040 9322016012 9454101000 9454201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-14110

TT142..4FC

 1
35013-20110

TT142..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14070

TT142..4FC..GTT

 1
35103-14071

TT142..4FC..GTT

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26011

TT142..4FC..GTT

 1
35104-26020

TT142..4FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30060

TT142..4FC..GTT

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

AT140,CT140,ST140,TT14#,YT140..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-14080

TT142..4FC..GTT

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006

CT140,ST140,TT142..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-14010

TT14#..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-14040

TT14#..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
Common parts
90101-10057
90101-12053
90119-06117
90119-12168
90141-60002
91611-61028
91611-61040
91651-61040
93220-16012
94541-01000
94542-01200
