TT142-TEPQZ (1982)
Toyota Corona
Production
Oct 1982
-
Aug 1985
Engine
3TGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8508)3TGTEU

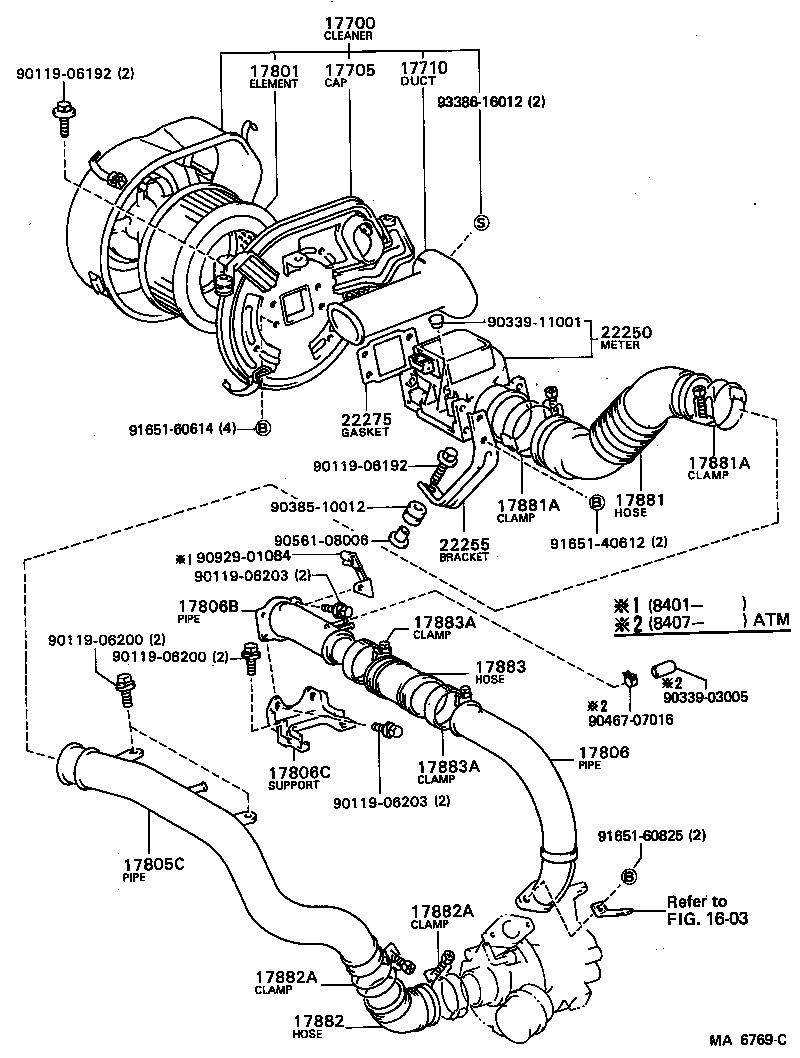

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-28080 |
3TGTEU..TT142 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34250 |
3TGTEU..TT142 |
1 | ||
| 17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1 | ||||
| 17751-34040 |
3T#..TT142 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-45020 |
3TGTEU..TT142 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17361-88282 |
3TGTEU..TT142 |
1 | ||
| 17361-88281 |
3TGTEU..TT142 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17362-88281 |
3TGTEU..TT142 |
1 | ||
| 17362-88282 |
3TGTEU..TT142 |
1 | ||
| 17806B - PIPE SUB-ASSY, AIR CLEANER, NO.3 | ||||
| 17363-88281 |
3TGTEU..TT142 |
1 | ||
| 17363-88283 |
3TGTEU..TT142 |
1 | ||
| 17363-88282 |
3TGTEU..TT142 |
1 | ||
| 17806C - SUPPORT, AIR CLEANER PIPE | ||||
| 17368-88280 |
3TGTEU..TT142 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-28030 |
3TGTEU..TT142 |
1 | ||
| 17881-28031 |
3TGTEU..TT142 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3TGTEU..TT142 AIR PIPE SIDE |
1 | ||
| 96111-10800 |
3TGTEU..TT142 AIR FLOW METER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3TGTEU..TT142 AIR PIPE SIDE |
1 | ||
| 96111-10800 |
3TGTEU..TT142 AIR FLOW METER SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17341-88280 |
3TGTEU..TT142 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3TGTEU..TT142 |
2 | ||
| 90460-70001 |
3TGTEU..TT142 TURBO SIDE |
1 | ||
| 96111-10710 |
3TGTEU..TT142 PIPE SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3TGTEU..TT142 |
2 | ||
| 90460-70001 |
3TGTEU..TT142 TURBO SIDE |
1 | ||
| 96111-10710 |
3TGTEU..TT142 PIPE SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17342-88280 |
3TGTEU..TT142 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65003 |
3TGTEU..TT142 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65003 |
3TGTEU..TT142 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-28020 |
3TGTEU..TT142 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-34030 |
3T#..TT142 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-34011 |
3TGTEU..TT142 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90119-06200 | ||||
| 90119-06203 | ||||
| 90339-03005 | ||||
| 90339-11001 | ||||
| 90385-10012 | ||||
| 90467-07016 | ||||
| 90561-08006 | ||||
| 90929-01084 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 93386-16012 | ||||
| Linked diagrams | ||||
| 1603 | ||||
