TT142-TEPQZ (1982)
Toyota Corona
ILLUST NO. 1 OF 2(8210-8508)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-88280 |
3TGTEU..TT142 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12008 |
3TGTEU..TT142 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12110 |
3TGTEU..TT142 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12110 |
3TGTEU..TT142 |
2 | ||
| 15407C - RING, O(FOR TURBO OIL PIPE) | ||||
| 96732-19023 |
3TGTEU..TT142 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-88280 |
3TGTEU..TT142 |
1 | ||
| 15707C - PIPE SUB-ASSY, OIL | ||||
| 15707-88280 |
3TGTEU..TT142 |
1 | ||
| 15707D - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-12008 |
3TGTEU..TT142 |
1 | ||
| 15707E - GASKET(FOR OIL PIPE) | ||||
| 90430-12110 |
3TGTEU..TT142 |
2 | ||
| 15707E - GASKET(FOR OIL PIPE) | ||||
| 90430-12110 |
3TGTEU..TT142 |
2 | ||
| 17110A - UNION, VACUUM HOSE | ||||
| 90405-04002 |
3TGTEU..TT142 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-88280 |
3TGTEU..TT142 |
1 | ||
| 17111H - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90072-40625 |
3TGTEU..TT142 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-88280 |
3TGTEU..TT142 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-88280 |
3TGTEU..TT142 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90406-09001 |
3TGTEU..TT142 |
1 | ||
| 17129D - UNION, NO.2 | ||||
| 90404-51026 |
3TGTEU..TT142 W/PS |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90072-34107 |
3T#..TT142 |
3 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90072-34107 |
3T#..TT142 |
3 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-43000 |
3TGTEU..TT142 外径=30 |
2 | ||
| 96411-13000 |
3TGTEU..TT142 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-88280 |
3TGTEU..TT142 |
1 | ||
| 17141-88281 |
3TGTEU..TT142 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08045 |
3T#..TT142 L=28,S=8&14 |
2 | ||
| 90116-08187 |
3TGTEU..TT142 |
2 | ||
| 90116-08128 |
3TGTEU..TT142 L=28,S=8&17 |
2 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10089 |
3TGTEU..TT142 |
4 | ||
| 90116-10054 |
3TGTEU..TT142 |
4 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08201 |
3TGTEU..TT142 L=37.4,S=13.7&13.7 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3TGTEU..TT142 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08201 |
3TGTEU..TT142 INTAKE MANIFOLD |
4 | ||
| 92122-61025 |
12TJ,3T#..TT14# EXHAUST MANIFOLD |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08201 |
3TGTEU..TT142 INTAKE MANIFOLD |
4 | ||
| 92122-61025 |
12TJ,3T#..TT14# EXHAUST MANIFOLD |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-88280 |
3TGTEU..TT142 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-88280 |
3TGTEU..TT142 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88280 |
3TGTEU..TT142 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-88280 |
3TGTEU..TT142 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-88280 |
3TGTEU..TT142 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-88280 |
3TGTEU..TT142 |
1 | ||
| 17271-88283 |
3TGTEU..TT142 |
1 | ||
| 17271-88281 |
3TGTEU..TT142 |
1 | ||
| 17271-88282 |
3TGTEU..TT142 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-88280 |
3TGTEU..TT142 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-88281 |
3TGTEU..TT142 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-88281 |
3TGTEU..TT142 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-88281 |
3TGTEU..TT142 |
1 | ||
| 17361A - TUBE, AIR(FOR EFI) | ||||
| 90072-40617 |
3TGTEU..TT142 |
1 | ||
| Common parts | ||||
| 90116-08177 | ||||
| 90179-08044 | ||||
| 90179-08082 | ||||
| 90179-10016 | ||||
| 90179-10066 | ||||
| 91611-40814 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||

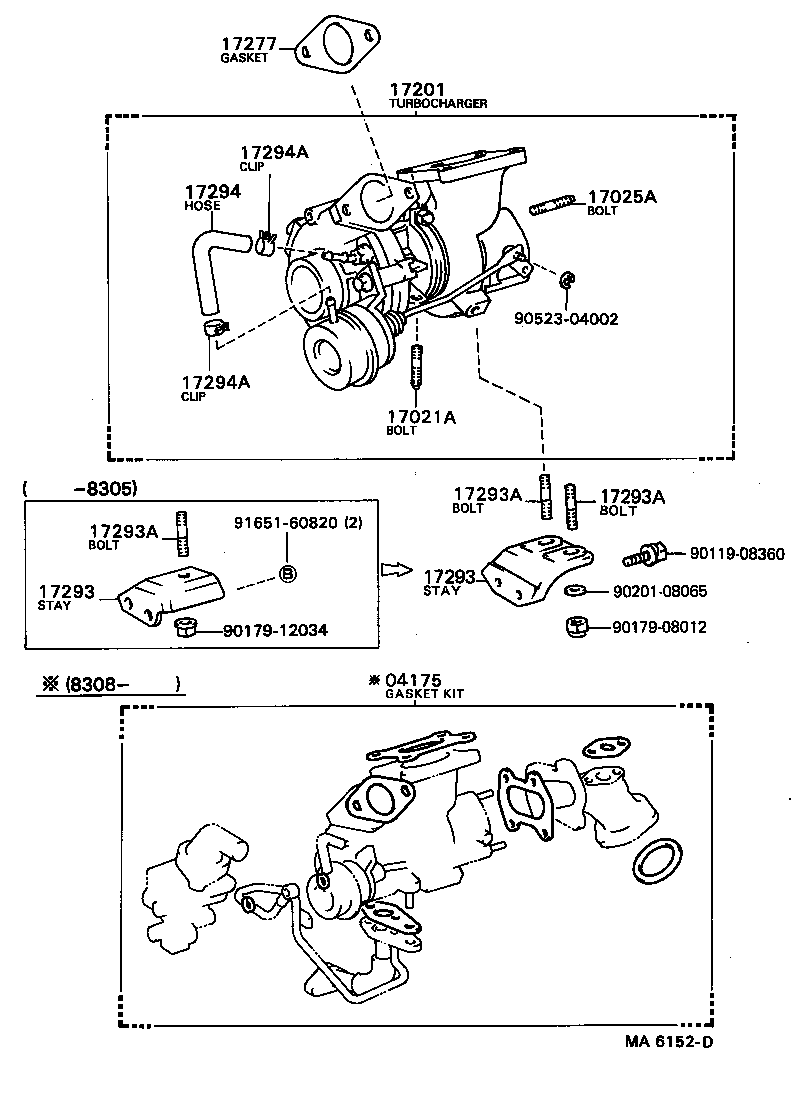

ILLUST NO. 2 OF 2(8210-8310)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-28010 |
3TGTEU..TT142 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
3TGTEU..TT142 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
3TGTEU..TT142 |
4 | ||
| 90116-08154 |
3TGTEU..TT142 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-28021 |
3TGTEU..TT142 |
1 | ||
| 17201-28022 |
3TGTEU..TT142 |
1 | ||
| 17201-28010 |
3TGTEU..TT142 |
1 | ||
| 17201-28011 |
3TGTEU..TT142 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-88280 |
3TGTEU..TT142 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-88280 |
3TGTEU..TT142 |
1 | ||
| 17293-88281 |
3TGTEU..TT142 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-88280 |
3TGTEU..TT142 |
1 | ||
| 17293-88281 |
3TGTEU..TT142 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90116-08004 |
3TGTEU..TT142 |
2 | ||
| 90116-12008 |
3TGTEU..TT142 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90116-08004 |
3TGTEU..TT142 |
2 | ||
| 90116-12008 |
3TGTEU..TT142 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90116-08004 |
3TGTEU..TT142 |
2 | ||
| 90116-12008 |
3TGTEU..TT142 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
3TGTEU..TT142 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
3TGTEU..TT142 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
3TGTEU..TT142 |
2 | ||
| Common parts | ||||
| 90119-08360 | ||||
| 90179-08012 | ||||
| 90179-12034 | ||||
| 90201-08065 | ||||
| 90523-04002 | ||||
| 91651-60820 | ||||

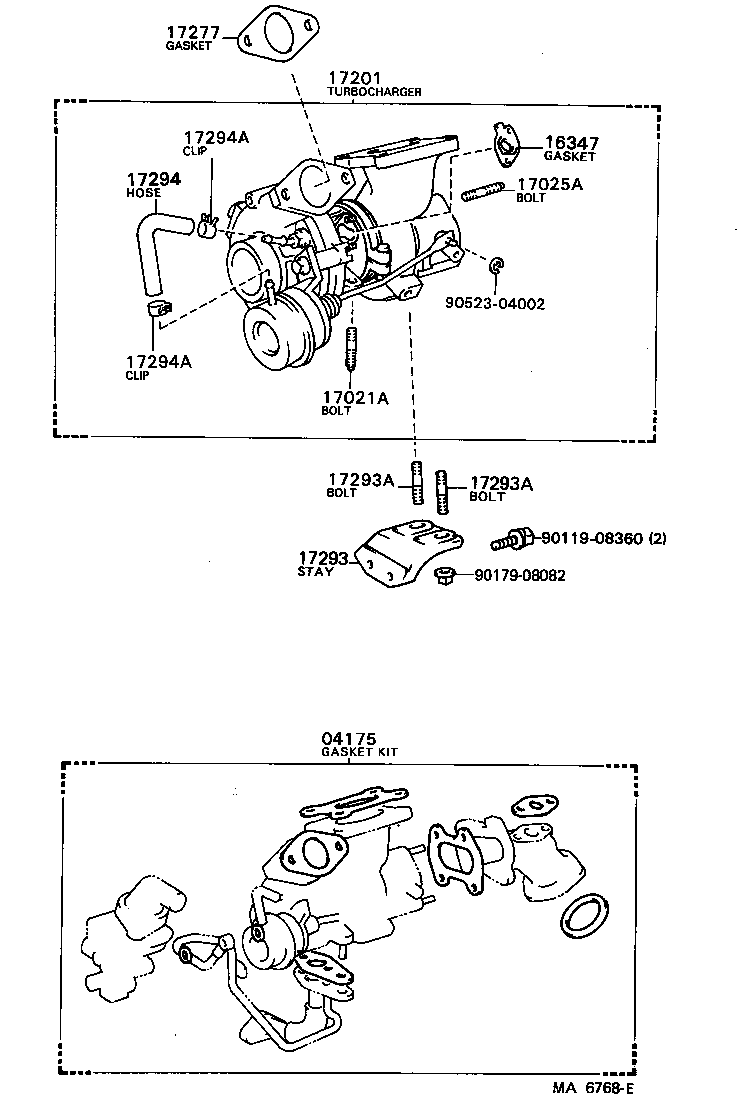

ILLUST NO. 2 OF 2(8310-8508)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-28010 |
3TGTEU..TT142 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
3TGTEU..TT142 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
3TGTEU..TT142 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
3TGTEU..TT142 |
4 | ||
| 90116-08154 |
3TGTEU..TT142 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-28021 |
3TGTEU..TT142 |
1 | ||
| 17201-28022 |
3TGTEU..TT142 |
1 | ||
| 17201-28010 |
3TGTEU..TT142 |
1 | ||
| 17201-28011 |
3TGTEU..TT142 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-88280 |
3TGTEU..TT142 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-88280 |
3TGTEU..TT142 |
1 | ||
| 17293-88281 |
3TGTEU..TT142 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90116-08004 |
3TGTEU..TT142 |
2 | ||
| 90116-12008 |
3TGTEU..TT142 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90116-08004 |
3TGTEU..TT142 |
2 | ||
| 90116-12008 |
3TGTEU..TT142 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
3TGTEU..TT142 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
3TGTEU..TT142 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
3TGTEU..TT142 |
2 | ||
| Common parts | ||||
| 90119-08360 | ||||
| 90179-08082 | ||||
| 90523-04002 | ||||
