TT142-TEPQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)3TGTEU

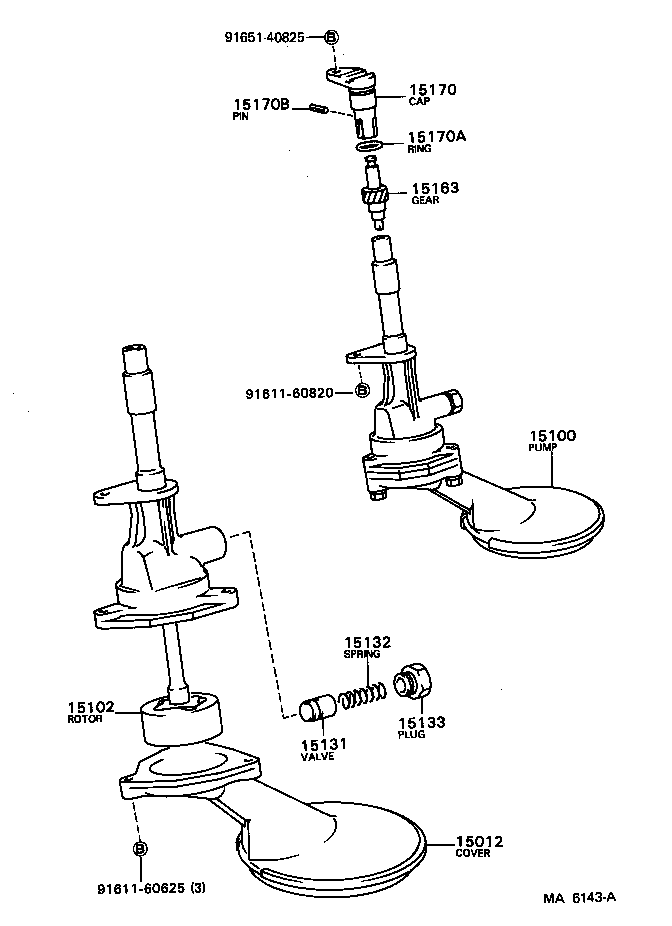

Click highlighted areas on diagram

diagram 15012 15100 15102 15131 15132 15133 15163 15170 15170A 15170B 9161160625 9161160820 9165140825
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-88280

3TGTEU..TT142

 1
15100 - PUMP ASSY, OIL
15100-88280

3TGTEU..TT142

 1
15102 - ROTOR SET, OIL PUMP
15102-88280

3TGTEU..TT142

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

12TJ,3T#..TT14#

 1
15131-22010

12TJ,3T#..TT14#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

12TJ,3T#..TT14#

AISIN

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-88280

3TGTEU..TT142

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-88280

3TGTEU..TT142

 1
15170 - CAP, OIL PUMP DRIVE SHAFT
15171-88280

3TGTEU..TT142

 1
15170A - RING, O, OIL PUMP DRIVE SHAFT
90072-30111

3TGTEU..TT142

 1
15170B - PIN (FOR OIL PUMP DRIVE SHAFT CAP)
90254-03005

3TGTEU..TT142

 1
Common parts
91611-60625
91611-60820
91651-40825
