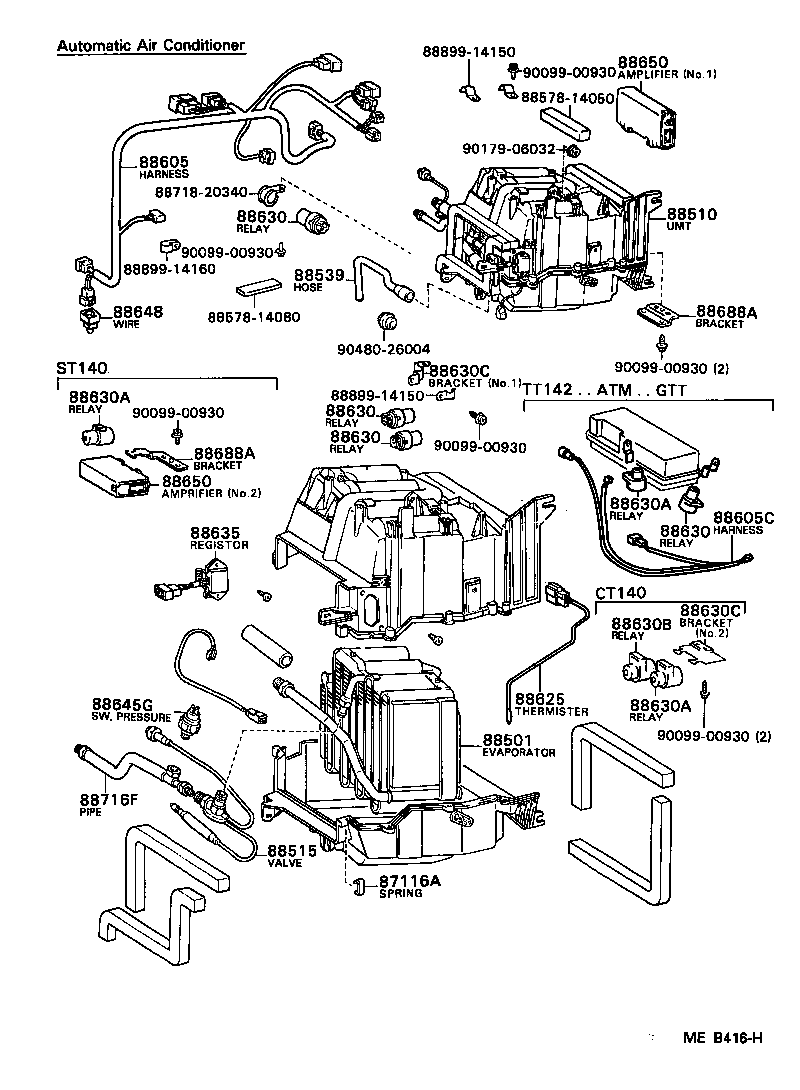

TT142-TEMSE (1982)
Toyota Corona
(8201-8508)EXA,EXS,GT,GTT,GXA,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-14180 |
AT140,CT14#,RT141,ST140,TT14# |
1 | ||
| 88501-24020 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88501-14210 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-14320 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88510-14350 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14040 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88515-20040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-14370 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88605-14410 |
RT141,TT142 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-14340 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-14340 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-14050 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 EXCL/DASH TYPE COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-14110 |
CT140,RT141,TT142..EXS,GT,SX W/*AAC |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14150 |
AT141,RT141,TT142 |
1 | ||
| 88650-14130 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14150 |
AT141,RT141,TT142 |
1 | ||
| 88650-14130 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 88578-14050 | ||||
| 88578-14080 | ||||
| 88718-20340 | ||||
| 88899-14150 | ||||
| 88899-14160 | ||||
| 90099-00930 | ||||
| 90179-06032 | ||||
| 90480-26004 | ||||
(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-14180 |
AT140,CT14#,RT141,ST140,TT14# |
1 | ||
| 88501-24020 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88501-14210 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-14320 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88510-14350 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14040 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88515-20040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-14370 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88605-14410 |
RT141,TT142 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
3 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-14340 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 EXCL/DASH TYPE COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14150 |
AT141,RT141,TT142 |
1 | ||
| 88650-14130 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX NO.1,W/*AAC |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 88519-87301 | ||||
| 88578-14050 | ||||
| 88578-89105 | ||||
| 88718-24020 | ||||
| 88891-24010 | ||||
| 90099-00930 | ||||
| 90179-06032 | ||||
| 90480-26004 | ||||
| Linked diagrams | ||||
| 8715 | ||||
