TT142-TEMSE (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)AT141,RT141,TT142

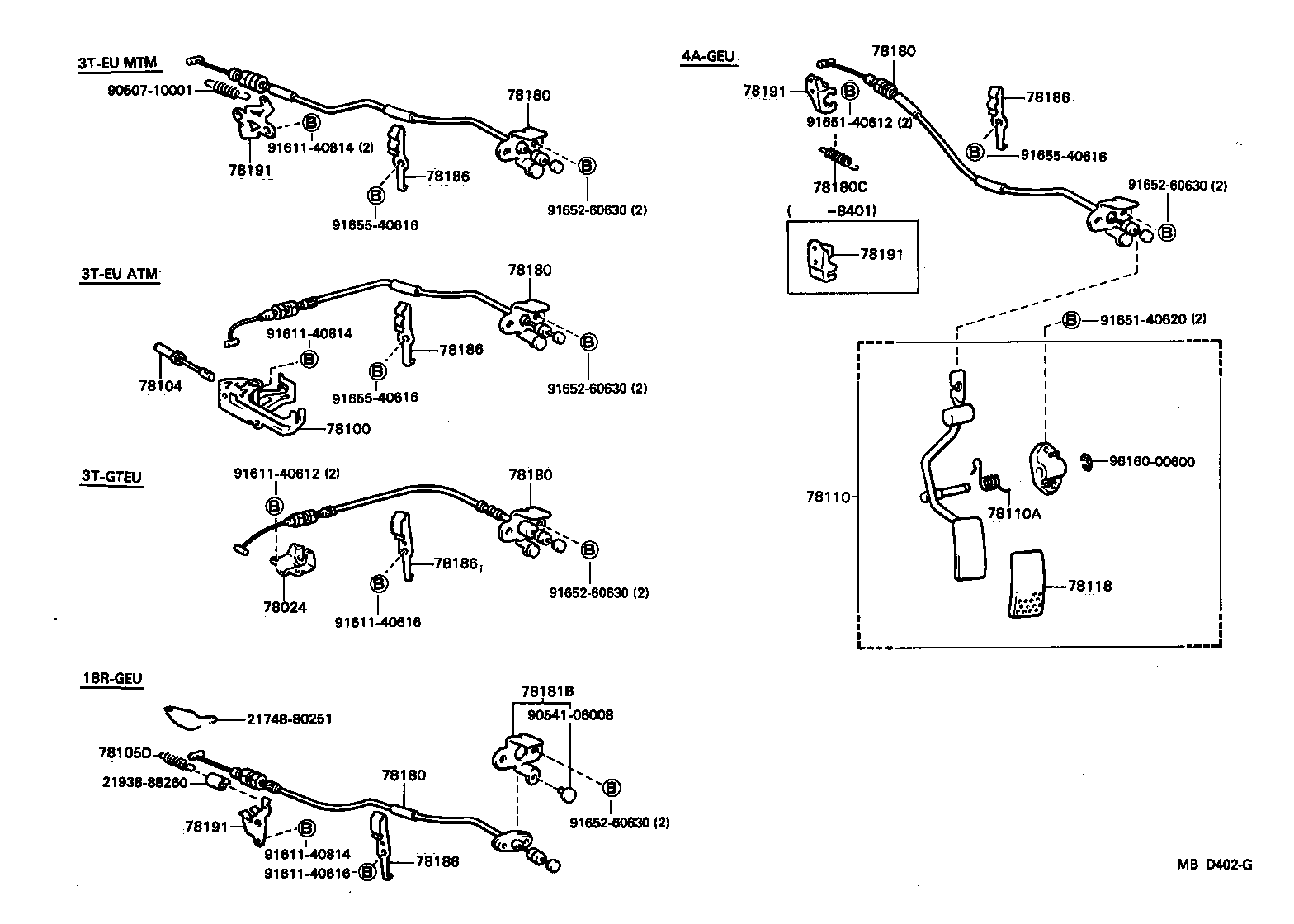

Click highlighted areas on diagram

diagram 2174880251 2193888260 78024 78100 78104 78105D 78110 78110A 78118 78180 78180 78180 78180 78180 78180C 78181B 78186 78186 78186 78186 78186 78191 78191 78191 78191 9050710001 9054106008 9161140612 9161140616 9161140616 9161140814 9161140814 9161140814 9165140612 9165140620 9165260630 9165260630 9165260630 9165260630 9165260630 9165540616 9165540616 9165540616 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14250

RT141,TT142..GT,SX

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18033

TT142..SX;TT142..4FC..GTT

 1
78118 - PAD, ACCELERATOR PEDAL
78119-20020

AT141,RT141,TT142

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14240

TT142..5F..SX

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14240

TT142..5F..SX

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14240

TT142..5F..SX

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14240

TT142..5F..SX

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14240

TT142..5F..SX

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-24010

RT141,TT142

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-24010

RT141,TT142

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-24010

RT141,TT142

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-24010

RT141,TT142

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-24010

RT141,TT142

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
21524-28010

TT142..5F..SX

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
21524-28010

TT142..5F..SX

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
21524-28010

TT142..5F..SX

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
21524-28010

TT142..5F..SX

 1
Common parts
21748-80251
21938-88260
90507-10001
90541-06008
91611-40612
91611-40616
91611-40814
91651-40612
91651-40620
91652-60630
91655-40616
96160-00600
