TT142-TEMSE (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
3TEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8310)SX

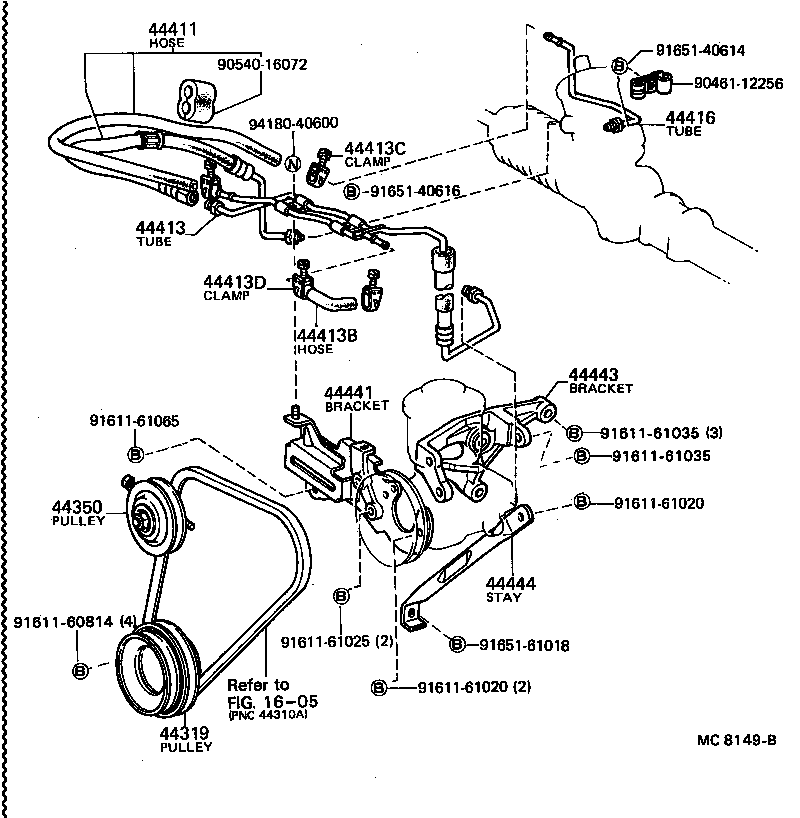

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 13477-18020 |
TT142 |
1 | ||
| 13477-18021 |
TT142..SX |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-12020 |
TT142..SX |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44410-14020 |
TT142..SX |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-14060 |
TT142..SX |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-14020 |
TT142..SX |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
TT142..SX |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
TT142..SX |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-14090 |
TT142..SX |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-14020 |
TT142..SX |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12010 |
TT142..SX |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-12010 |
TT142..SX |
1 | ||
| Common parts | ||||
| 90461-12256 | ||||
| 90540-16072 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91611-61065 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-61018 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
