TT142-TEMSE (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
3TEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8310)3TEU

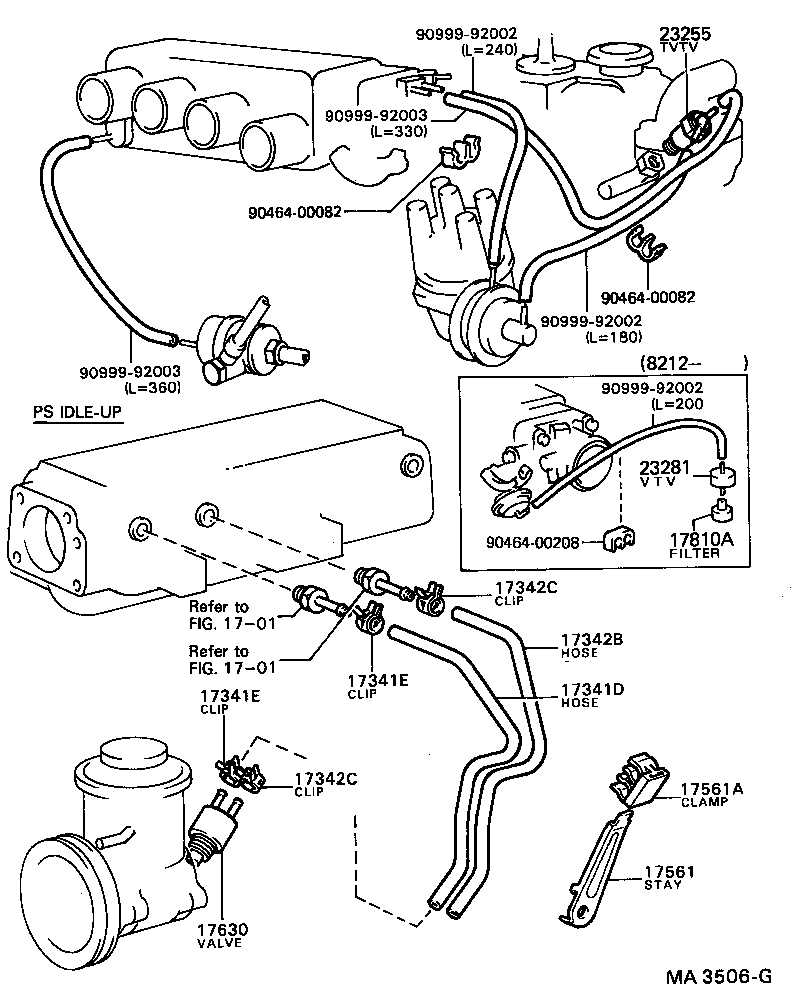

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-28012 |
3TEU..TT142 W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-28012 |
3TEU..TT142 W/PS |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
3T#..TT142 W/PS |
4 | ||
| 17561 - STAY(FOR AIR HOSE) | ||||
| 17561-28010 |
3TEU..TT142 W/PS |
1 | ||
| 17561A - CLAMP(FOR AIR HOSE) | ||||
| 90464-00229 |
3TEU..TT142 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28010 |
3T#..TT142 W/PS |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3TEU..TT142 |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01070 |
3TEU..TT142 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
3TEU..TT142 |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00208 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(8201- )12TJ,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
