TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

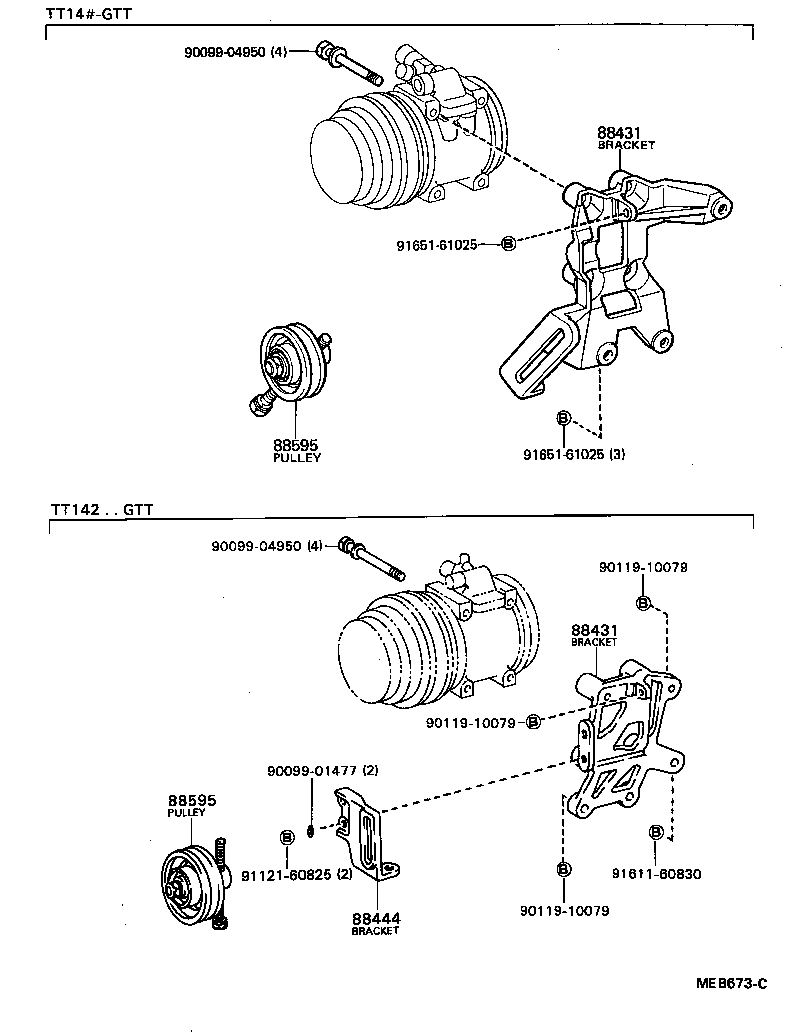

ILLUST NO. 2 OF 2(8201-8508)TT14#

Click highlighted areas on diagram

diagram 88431 88431 88444 88595 88595 9009901477 9009904950 9009904950 9011910079 9011910079 9011910079 9112160825 9161160830 9165161025 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14190

TT142..GTT

W/O PS

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14190

TT142..GTT

W/O PS

 1
88444 - BRACKET, IDLE PULLEY
88444-14040

TT142..GTT

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-14040

TT142..GTT

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-14040

TT142..GTT

 1
Common parts
90099-01477
90099-04950
90119-10079
91121-60825
91611-60830
91651-61025
