TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)TT14#

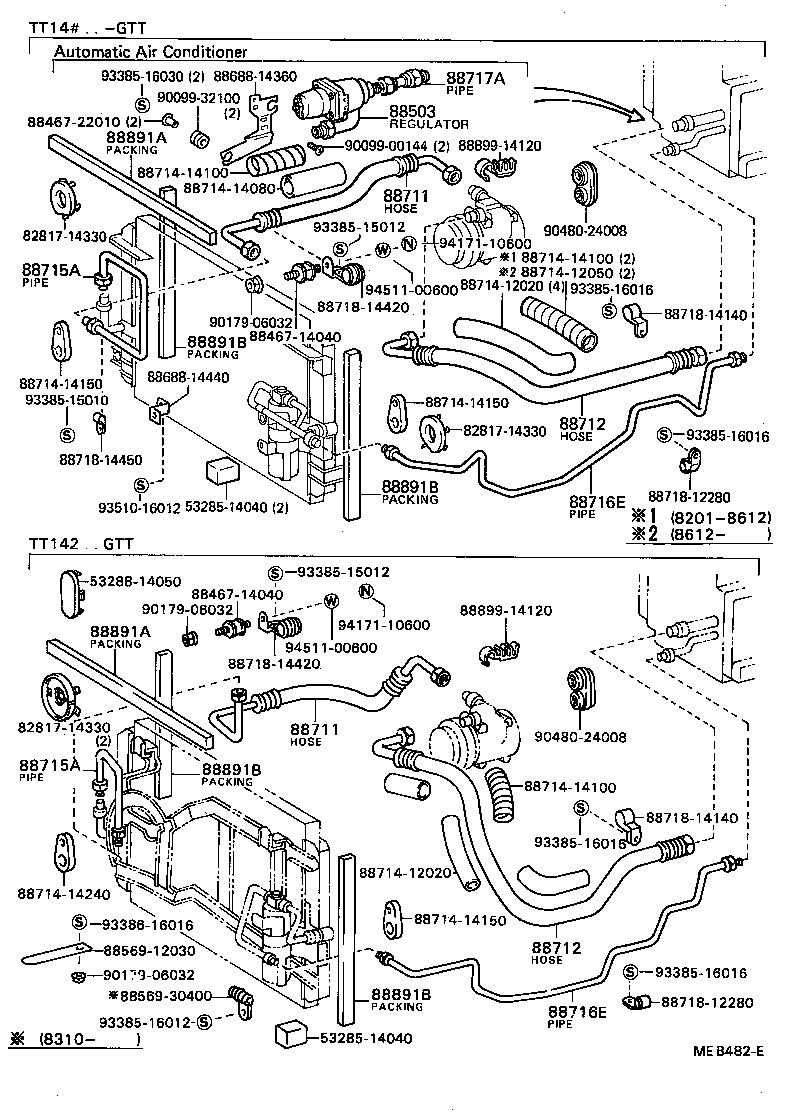

Click highlighted areas on diagram

diagram 5328514040 5328514040 5328814050 8281714330 8281714330 8281714330 8846714040 8846714040 8846722010 88503 8856912030 8856930400 8868814360 8868814440 88711 88711 88712 88712 8871412020 8871412020 8871412050 8871414080 8871414100 8871414100 8871414100 8871414150 8871414150 8871414150 8871414240 88715A 88715A 88716E 88716E 88717A 8871812280 8871812280 8871814140 8871814140 8871814420 8871814420 8871814450 88891A 88891A 88891B 88891B 88891B 88891B 8889914120 8889914120 9009900144 9009932100 9017906032 9017906032 9017906032 9048024008 9048024008 9338515010 9338515012 9338515012 9338516012 9338516016 9338516016 9338516016 9338516016 9338516030 9338616016 9351016012 9417110600 9417110600 9451100600 9451100600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14520

TT142..GTT

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14520

TT142..GTT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14810

TT142..GTT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14810

TT142..GTT

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14240

TT142..GTT

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14240

TT142..GTT

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20850

TT142..5F

 1
88716-14760

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88716-14870

TT142..5F..GTT

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20850

TT142..5F

 1
88716-14760

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88716-14870

TT142..5F..GTT

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14240

CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX

W/AUTOMATIC AIR CONDITIONER

 1
88891A - PACKING A (FOR COOLER)
53293-14050

TT142

 1
88891A - PACKING A (FOR COOLER)
53293-14050

TT142

 1
88891B - PACKING B (FOR COOLER)
53291-14020

KT147,TT14#,YT140

 2
88891B - PACKING B (FOR COOLER)
53291-14020

KT147,TT14#,YT140

 2
88891B - PACKING B (FOR COOLER)
53291-14020

KT147,TT14#,YT140

 2
88891B - PACKING B (FOR COOLER)
53291-14020

KT147,TT14#,YT140

 2
Common parts
53285-14040
53288-14050
82817-14330
88467-14040
88467-22010
88569-12030
88569-30400
88688-14360
88688-14440
88714-12020
88714-12050
88714-14080
88714-14100
88714-14150
88714-14240
88718-12280
88718-14140
88718-14420
88718-14450
88899-14120
90099-00144
90099-32100
90179-06032
90480-24008
93385-15010
93385-15012
93385-16012
93385-16016
93385-16030
93386-16016
93510-16012
94171-10600
94511-00600
