TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)

Click highlighted areas on diagram

diagram 87292 8856914020 8856914020 88605G 88605H 8868814570 88690C 88690D 88691A 88691B 9009900145 9041304005 9041304005 9046315067 9046315067 9046400074 9046400082 9046400082 9046400087 9331914006 9331914016 9338516016
Part # Description Qty Price
87292 - TANK, VACUUM
88683-14040

CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88605G - WIRE, AIR CONDITIONER, NO.2
88605-14460

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88605H - WIRE, AIR CONDITIONER, NO.3
88605-14490

CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX

W/*AAC

 1
88605-14550

AT141,TT142

 1
88605-14540

TT142..GTT

W/*AAC

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
95411-10460

AT141,ST140,TT142..EXS,GT,GTT

*H,L=600,ﾏｰｸ=#4

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
90445-08206

TT142..GTT

 1
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-14760

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-14780

AT141,TT142..GT,GTT

W/*AAC

 1
88690-14670

CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX

W/*AAC

 1
Common parts
88569-14020
88688-14570
90099-00145
90413-04005
90463-15067
90464-00074
90464-00082
90464-00087
93319-14006
93319-14016
93385-16016

(8201-9111)CT14#,TT142

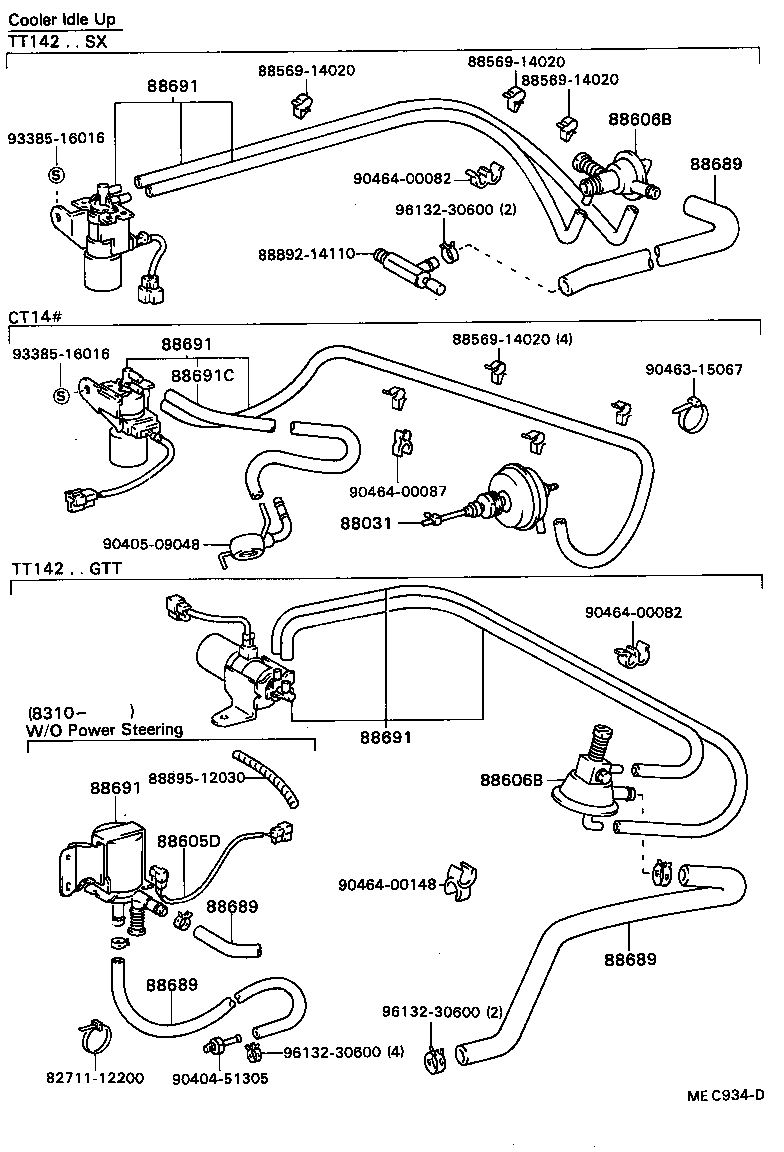

Click highlighted areas on diagram

diagram 8271112200 88031 8856914020 8856914020 8856914020 8856914020 88605D 88606B 88606B 88689 88689 88689 88689 88691 88691 88691 88691 88691C 8889214110 8889512030 9040451305 9040509048 9046315067 9046400082 9046400082 9046400087 9046400148 9338516016 9338516016 9613230600 9613230600 9613230600
Part # Description Qty Price
88605D - WIRE, AIR CONDITIONER
88605-14680

TT142

 1
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-14060

TT142..GTT

 1
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-14060

TT142..GTT

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-14090

TT142

W/PS

 1
88689-14090

TT142..GTT

 1
88689-14120

TT142

L=400,W/O PS

 1
88689-14130

TT142

L=650,W/O PS

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-14090

TT142

W/PS

 1
88689-14090

TT142..GTT

 1
88689-14120

TT142

L=400,W/O PS

 1
88689-14130

TT142

L=650,W/O PS

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-14090

TT142

W/PS

 1
88689-14090

TT142..GTT

 1
88689-14120

TT142

L=400,W/O PS

 1
88689-14130

TT142

L=650,W/O PS

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-14090

TT142

W/PS

 1
88689-14090

TT142..GTT

 1
88689-14120

TT142

L=400,W/O PS

 1
88689-14130

TT142

L=650,W/O PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14770

TT142

W/PS

 1
88690-14770

TT142..GTT

 1
88690-14790

TT142

W/O PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14770

TT142

W/PS

 1
88690-14770

TT142..GTT

 1
88690-14790

TT142

W/O PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14770

TT142

W/PS

 1
88690-14770

TT142..GTT

 1
88690-14790

TT142

W/O PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14770

TT142

W/PS

 1
88690-14770

TT142..GTT

 1
88690-14790

TT142

W/O PS

 1
Common parts
82711-12200
88569-14020
88892-14110
88895-12030
90404-51305
90405-09048
90463-15067
90464-00082
90464-00087
90464-00148
93385-16016
96132-30600
