TT142-TEMQZ (1982)
Toyota Corona
ILLUST NO. 2 OF 6(8201-9111)AT14#,CT140,141,RT141,ST140,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20150 |
AT141,TT142..SED W/*PW & *DM,*RC |
1 | ||
| 82151-20010 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT) W/*PW |
1 | ||
| 82151-20140 |
AT141,TT142..SED W/*PW |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20170 |
AT141,TT142..SED W/*PW |
1 | ||
| 82152-20010 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT) W/*PW |
1 | ||
| 82152-20140 |
AT141,TT142..SED W/*PW & *DM,*RC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20010 |
AT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT) W/*PW |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20010 |
AT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT) W/*PW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-20030 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GX,GXA,SX) W/*PW,*SH OR BACK SONAR |
1 | ||
| 82161-20020 |
CT140,RT141,ST140,TT142..SED..(EXS,GT,GTT,SX) |
1 | ||
| 82161-20021 |
AT141,TT142..SED |
1 | ||
| 82161-20031 |
AT141,TT142..SED W/*PW |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-14011 |
RT141,TT142 |
1 | ||
| 82164-14011 |
TT142..SED |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20010 |
CT140..GX;AT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,STD,SX) |
1 | ||
| 82171-20030 |
CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX) W/SUN ROOF |
1 | ||
| 82171-14011 |
TT142..SED..GTT |
1 | ||
| 82171-20150 |
AT141,TT142 W/SUN ROOF |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20100 |
TT142..SED |
1 | ||
| 82181-20020 |
CT140..EXS,GX;AT140,RT141,ST140,TT142..SED |
1 | ||
| 82181-20101 |
AT141,TT142..SED |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20020 |
AT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX) W/RR DEFOGGER & WINDOW ANTENNA |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

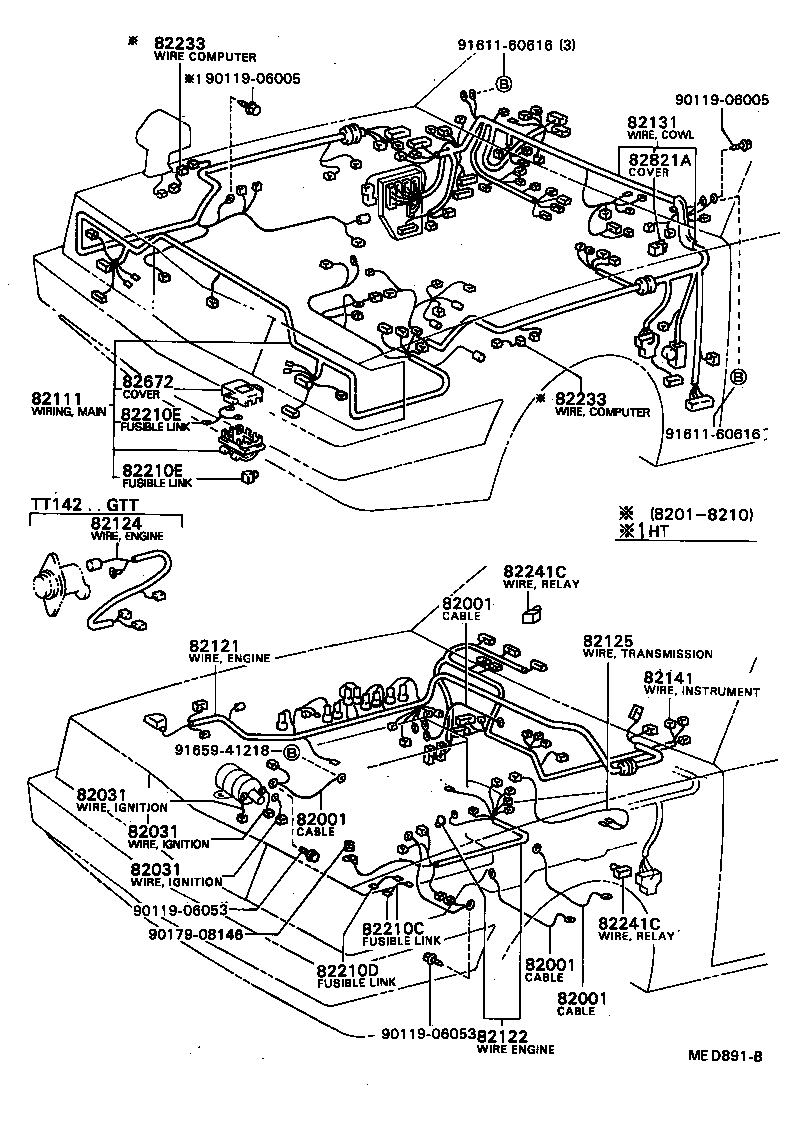

ILLUST NO. 1 OF 6(8201-8508)AT141,RT141,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AT14#,RT141,ST140,TT14#,YT140 L=350,ENGINE-DASH PANEL |
1 | ||
| 90980-07196 |
AT141,ST140,TT14#,YT140 L=350 & 100,FR SIDE MEMBER |
1 | ||
| 90980-07148 |
AT140,RT141,ST140,TT14# L=260,TRANSMISSION-FLOOR |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AT14#,RT141,ST140,TT14#,YT140 L=350,ENGINE-DASH PANEL |
1 | ||
| 90980-07196 |
AT141,ST140,TT14#,YT140 L=350 & 100,FR SIDE MEMBER |
1 | ||
| 90980-07148 |
AT140,RT141,ST140,TT14# L=260,TRANSMISSION-FLOOR |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AT14#,RT141,ST140,TT14#,YT140 L=350,ENGINE-DASH PANEL |
1 | ||
| 90980-07196 |
AT141,ST140,TT14#,YT140 L=350 & 100,FR SIDE MEMBER |
1 | ||
| 90980-07148 |
AT140,RT141,ST140,TT14# L=260,TRANSMISSION-FLOOR |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AT14#,RT141,ST140,TT14#,YT140 L=350,ENGINE-DASH PANEL |
1 | ||
| 90980-07196 |
AT141,ST140,TT14#,YT140 L=350 & 100,FR SIDE MEMBER |
1 | ||
| 90980-07148 |
AT140,RT141,ST140,TT14# L=260,TRANSMISSION-FLOOR |
2 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
AT140,RT141,TT142 (+)TERMINAL |
2 | ||
| 82031-14040 |
RT141,TT142 (-)TERMINAL |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
AT140,RT141,TT142 (+)TERMINAL |
2 | ||
| 82031-14040 |
RT141,TT142 (-)TERMINAL |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
AT140,RT141,TT142 (+)TERMINAL |
2 | ||
| 82031-14040 |
RT141,TT142 (-)TERMINAL |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20060 |
RT141,TT142..SED..(GT,SX) |
1 | ||
| 82111-20170 |
TT142..SED..GTT |
1 | ||
| 82111-20171 |
TT142..SED |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-14100 |
TT142..GTT |
1 | ||
| 82121-14320 |
TT142 |
1 | ||
| 82121-14321 |
TT142 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-14120 |
TT142..GTT |
1 | ||
| 82122-14330 |
TT142..GTT COLD SPEC |
1 | ||
| 82122-14130 |
TT142..GTT COLD SPEC |
1 | ||
| 82122-14320 |
TT142..GTT |
1 | ||
| 82122-14330 |
TT142 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-14020 |
TT142..GTT |
1 | ||
| 82124-14030 |
TT142 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-14021 |
TT142..5F..GTT |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-20440 |
TT142..SED..GTT |
1 | ||
| 82131-20450 |
TT142..SED..GTT W/*PW OR *CC |
1 | ||
| 82131-20451 |
TT142..SED W/*PW |
1 | ||
| 82131-20441 |
TT142..SED |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-20190 |
TT142..SED..GTT |
1 | ||
| 82141-20200 |
TT142..SED..GTT GT-TR PACKAGE OR *DS |
1 | ||
| 82141-20191 |
TT142..SED |
1 | ||
| 82141-20201 |
TT142..SED W/*DS |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08125 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 1.0ｲｴﾛｰ,長さ=110,L=110,1.0Y |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08157 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 FL 0.3 ﾋﾟﾝｸ,L=100,0.3P |
1 | ||
| 82210E - FUSIBLE LINK | ||||
| 90982-08214 |
TT142..GTT L=100,1.0Y |
1 | ||
| 90982-08215 |
TT142..GTT L=100,0.3P |
1 | ||
| 82210E - FUSIBLE LINK | ||||
| 90982-08214 |
TT142..GTT L=100,1.0Y |
1 | ||
| 90982-08215 |
TT142..GTT L=100,0.3P |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-20150 |
TT142..SED W/O RHEOSTAT CONTROL |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-20150 |
TT142..SED W/O RHEOSTAT CONTROL |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12120 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 FR SPEAKER |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
| 91611-60616 | ||||
| 91659-41218 | ||||
