TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)RT141,TT142..GT,SX

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47318F 47319F 47321 47321D 47322 47324B 47324B 47324B 47325 47325 47326 47326 47327 47327 47328 47328 9046106041 9046108565 9095901019 9161140614 9161140614 9165140614 9165140614 9165160640 9165160640 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14050

AT141,TT142

 1
47159-14030

RT141,TT142

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14270

TT142..GTT

 1
47311-14300

TT142

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

TT142..GTT

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14150

TT142..GTT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14180

TT142..GTT

 1
47313-14200

TT142

 1
47313-14201

TT142

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96940-32105

AT141,RT141,TT142..GT,GTT

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96940-32105

AT141,RT141,TT142..GT,GTT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14160

AT141,TT142

 1
47321-14090

AT140,RT141,ST140,TT14#,YT140

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10109

AT141,RT141,TT142

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14101

AT141,RT141,TT142

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-14030

AT141,RT141,TT142

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-14030

AT141,RT141,TT142

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14030

AT141,RT141,TT142

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14030

AT141,RT141,TT142

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22090

AT141,TT142

 1
47327-22020

TT142..GTT

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22090

AT141,TT142

 1
47327-22020

TT142..GTT

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22020

TT142..GTT

 1
47328-22090

AT141,TT142

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22020

TT142..GTT

 1
47328-22090

AT141,TT142

 1
Common parts
90461-06041
90461-08565
90959-01019
91611-40614
91651-40614
91651-60640
96160-01200
96991-10080

(8210-8508)GT,GTT

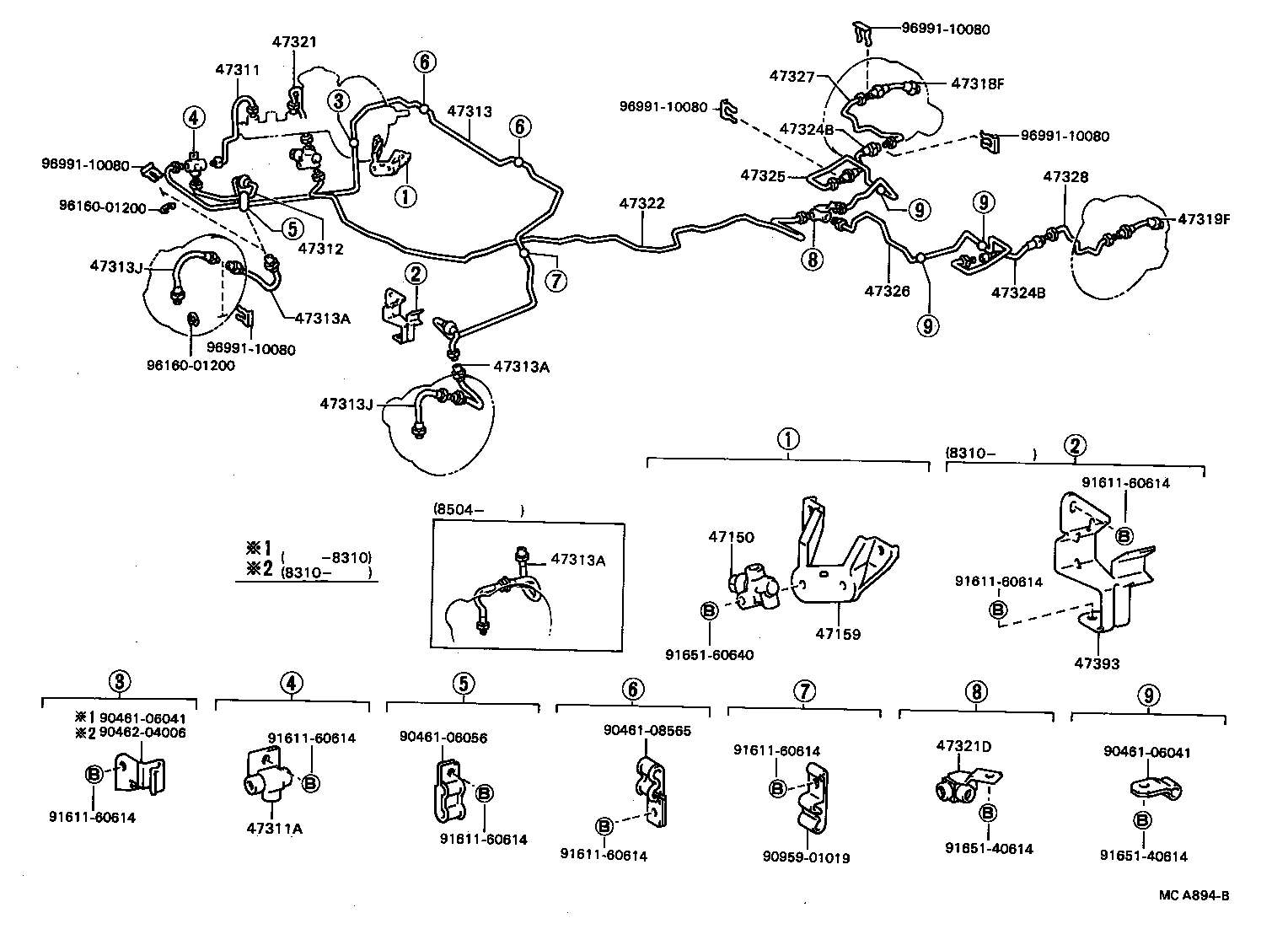

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47318F 47319F 47321 47321D 47322 47324B 47324B 47325 47326 47327 47328 47393 9046106041 9046106041 9046106056 9046108565 9046204006 9095901019 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9165140614 9165140614 9165160640 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14050

AT141,TT142

 1
47159-14030

RT141,TT142

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14270

TT142..GTT

 1
47311-14300

TT142

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

TT142..GTT

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14150

TT142..GTT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14180

TT142..GTT

 1
47313-14200

TT142

 1
47313-14201

TT142

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96940-32105

AT141,RT141,TT142..GT,GTT

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96940-32105

AT141,RT141,TT142..GT,GTT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14160

AT141,TT142

 1
47321-14090

AT140,RT141,ST140,TT14#,YT140

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10109

AT141,RT141,TT142

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14101

AT141,RT141,TT142

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AT141,RT141,TT142

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-14030

AT141,RT141,TT142

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-14030

AT141,RT141,TT142

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22090

AT141,TT142

 1
47327-22020

TT142..GTT

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22020

TT142..GTT

 1
47328-22090

AT141,TT142

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-14020

TT142

 1
Common parts
90461-06041
90461-06056
90461-08565
90462-04006
90959-01019
91611-60614
91651-40614
91651-60640
96160-01200
96991-10080
