TT142-TEMQZ (1982)
Toyota Corona
Production
Oct 1982
-
Aug 1985
Engine
3TGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

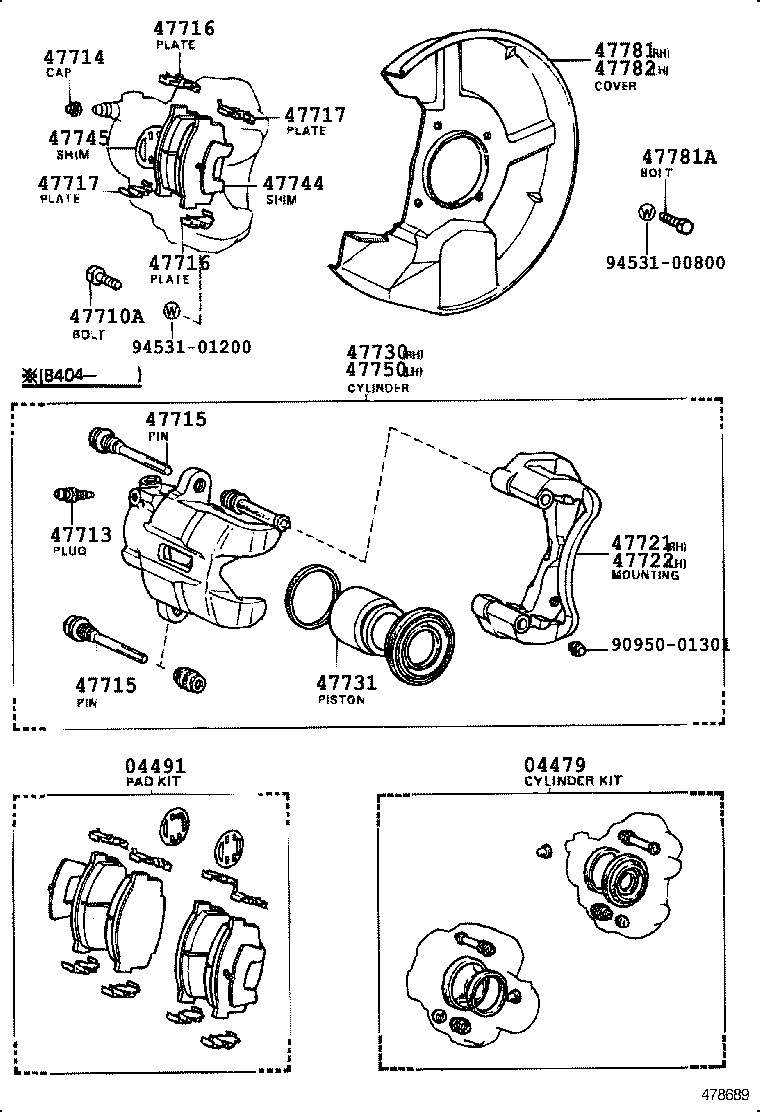

ILLUST NO. 1 OF 2(8201-8508)AT141,RT141,TT142
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-22010 |
AT141,RT141,TT142 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-24010 |
RT141,TT142 |
1 | ||
| 04491-22161 |
AT141,TT142 |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12066 |
AT141,RT141,TT142 *12−1.25PX32.5−20.5 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12040 |
AT141,RT141,TT142 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
AT141,RT141,TT142 |
4 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
AT141,RT141,TT142 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20040 |
AT141,RT141,TT142 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20040 |
AT141,RT141,TT142 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
AT141,RT141,TT142 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
AT141,RT141,TT142 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-24010 |
AT141,RT141,TT142 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-24010 |
AT141,RT141,TT142 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-24010 |
AT141,RT141,TT142 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30050 |
AT141,RT141,TT142 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-22040 |
AT141,RT141,TT142 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47744-22050 |
AT141,TT142 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-24010 |
AT141,RT141,TT142 |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-14070 |
AT141,RT141,TT142 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08341 |
AT141,RT141,TT142 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-14060 |
AT141,RT141,TT142 |
1 | ||
| Common parts | ||||
| 90950-01301 | ||||
| 94531-00800 | ||||
| 94531-01200 | ||||
