TT142-TEMQZ (1982)
Toyota Corona

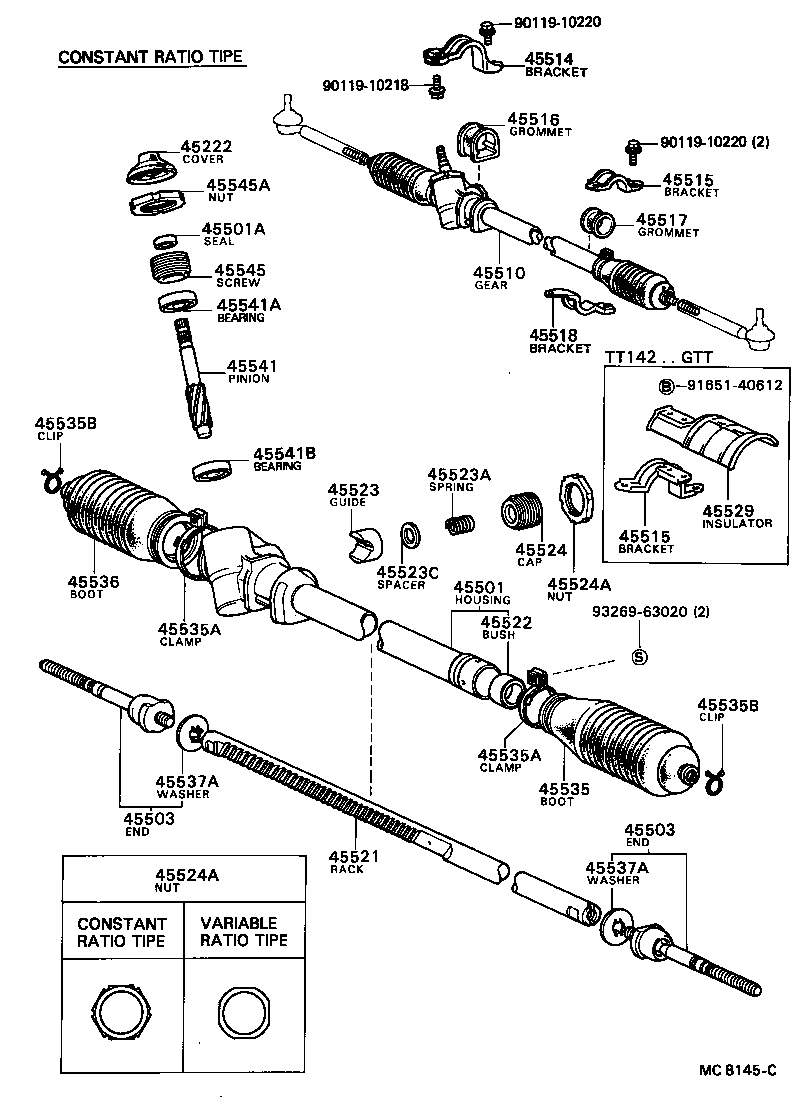

ILLUST NO. 2 OF 3(8201-8310)CT140,TT142..GX,SX ; (8310-8508)AT141,TT142
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14020 |
CT140,TT142..GTT,GX,SX |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AT14#,CT140,ST140,TT142 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14060 |
TT142..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TT142..GTT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14060 |
TT142..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TT142..GTT |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-14010 |
TT142..GTT |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
AT141,TT142 CONSTANT RATIO |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||

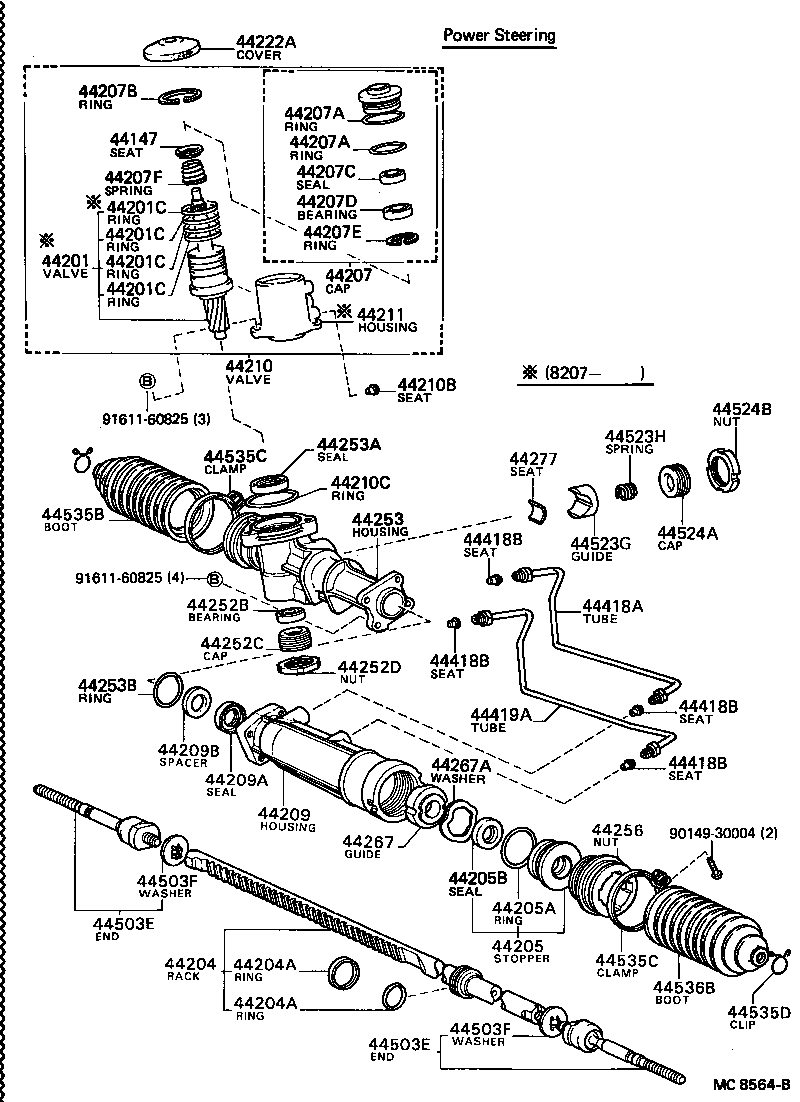

ILLUST NO. 2 OF 3(8201-8508)AT141,RT141,TT142
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
AT141,RT141,TT142 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-14010 |
AT141,RT141,TT142 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT141,RT141,TT142 INNER |
1 | ||
| 90562-37001 |
AT141,RT141,TT142 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT141,RT141,TT142 INNER |
1 | ||
| 90562-37001 |
AT141,RT141,TT142 OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
AT141,RT141,TT142 |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
AT141,RT141,TT142 |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
AT141,RT141,TT142 |
1 | ||
| 44207 - CAP SUB-ASSY, VALVE | ||||
| 44207-24010 |
AT141,RT141,TT142 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
AT141,RT141,TT142 OD=45 |
1 | ||
| 90301-37001 |
AT141,RT141,TT142 OD=42.6 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
AT141,RT141,TT142 OD=45 |
1 | ||
| 90301-37001 |
AT141,RT141,TT142 OD=42.6 |
1 | ||
| 44207B - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-04500 |
AT141,RT141,TT142 |
1 | ||
| 44207C - SEAL, OIL(FOR VALVE CAP SUB-ASSY) | ||||
| 90311-19006 |
AT141,RT141,TT142 |
1 | ||
| 44207D - BEARING(FOR VALVE CAP SUB-ASSY) | ||||
| 90363-19002 |
AT141,RT141,TT142 |
1 | ||
| 44207E - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-03500 |
AT141,RT141,TT142 |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
AT141,RT141,TT142 |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-14010 |
AT141,RT141,TT142 |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
AT141,RT141,TT142 |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
AT141,RT141,TT142 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14041 |
RT141,TT142 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
AT141,RT141,TT142 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
AT141,RT141,TT142 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
AT141,RT141,TT142 |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
AT141,RT141,TT142 |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
AT141,RT141,TT142 |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
AT141,RT141,TT142 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-14011 |
RT141,TT142 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30002 |
RT141,TT142 OD=43.3 |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
AT141,RT141,TT142 |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
AT141,RT141,TT142 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
AT141,RT141,TT142 |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
AT141,RT141,TT142 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
AT141,RT141,TT142 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-14011 |
AT141,RT141,TT142 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
AT141,RT141,TT142 |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
AT141,RT141,TT142 |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
AT141,RT141,TT142 |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
AT141,RT141,TT142 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-14011 |
AT141,RT141,TT142 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX OD=43 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX OD=43 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
AT141,RT141,TT142 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14011 |
AT141,RT141,TT142 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
AT141,RT141,TT142 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
AT141,RT141,TT142 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14011 |
AT141,RT141,TT142 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||

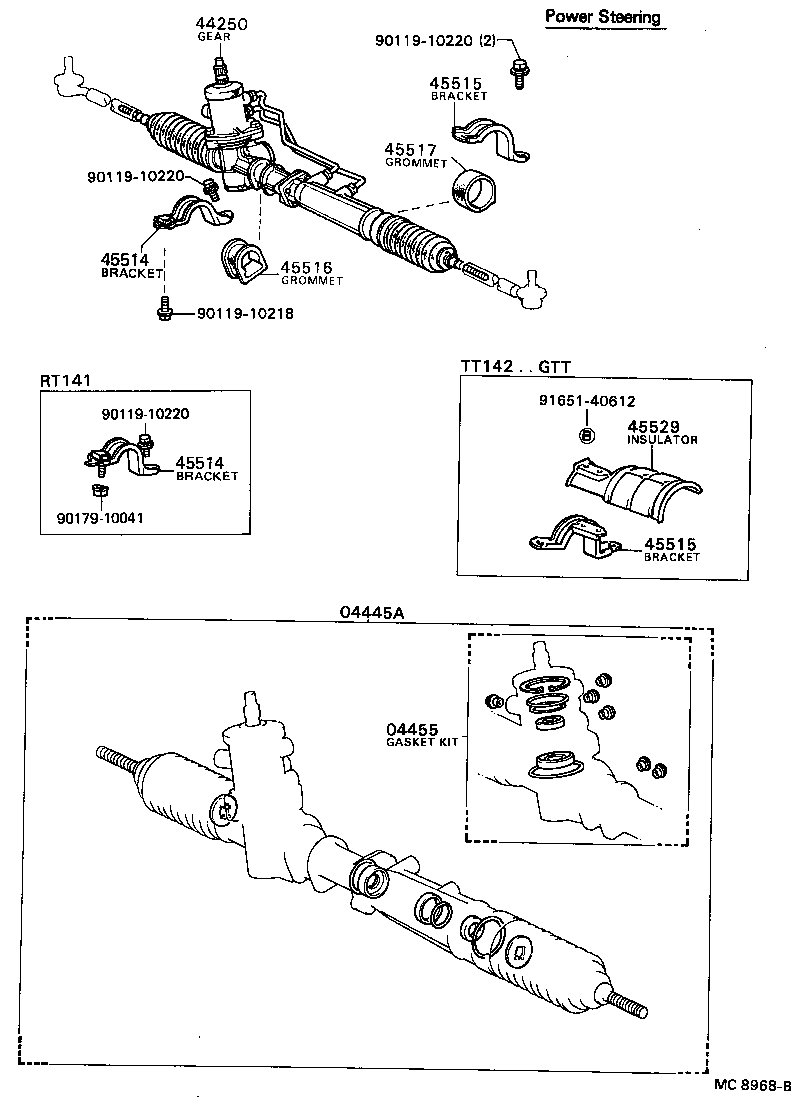

ILLUST NO. 3 OF 3(8201-8508)AT141,RT141,TT142
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-24010 |
RT141,TT142 |
1 | ||
| 04445-24012 |
AT141,TT142 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-24010 |
AT141,RT141,TT142 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14011 |
AT141,RT141,TT142 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AT14#,CT140,ST140,TT142 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AT14#,CT140,ST140,TT142 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14060 |
TT142..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TT142..GTT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14060 |
TT142..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TT142..GTT |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-14010 |
TT142..GTT |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
ILLUST NO. 1 OF 3(8201-8712)CT140..EXS,GX ; (8201-8712)AT14#,RT141,ST140,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CT140,141,KT147,TT14#,YT140 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29225 |
CT140,TT142..GTT,GX,SX VARIABLE RATIO STEERING GEAR |
1 | ||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29225 |
CT140,TT142..GTT,GX,SX VARIABLE RATIO STEERING GEAR |
1 | ||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-29225 |
CT140,TT142..GTT,GX,SX VARIABLE RATIO STEERING GEAR |
1 | ||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-29225 |
CT140,TT142..GTT,GX,SX VARIABLE RATIO STEERING GEAR |
1 | ||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14090 |
TT142 |
1 | ||
| 45611-14070 |
AT141,RT141,TT142 W/POWER STEERING |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=34 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=42 |
4 | ||
| 90101-12295 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=35 |
4 | ||
| 90101-12379 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=39 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14090 |
TT142 |
1 | ||
| 45612-14070 |
AT141,RT141,TT142 W/POWER STEERING |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
