TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)GTT

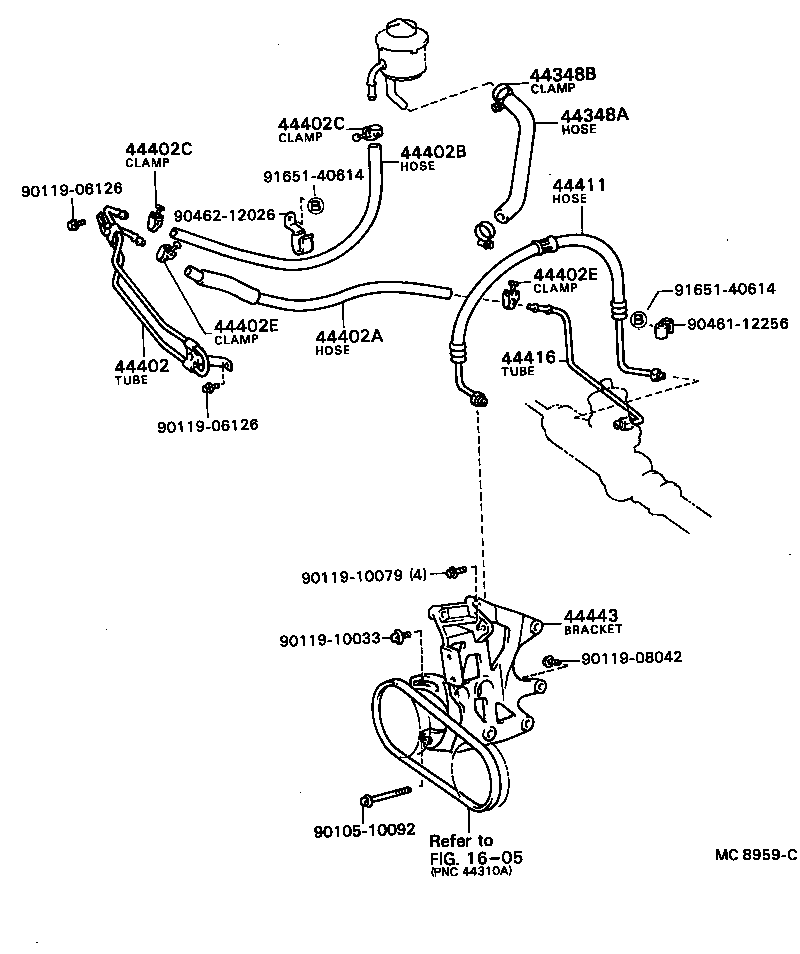

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44443 9010510092 9011906126 9011906126 9011908042 9011910033 9011910079 9046112256 9046212026 9165140614 9165140614
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14050

TT142..GTT

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14080

TT142..SED..GTT

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-14130

TT142..GTT

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-14120

TT142..GTT

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44411 - HOSE, PRESSURE FEED
44411-14130

TT142..GTT

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14140

TT142..GTT

 1
44443 - BRACKET, PUMP
44443-14040

TT142..GTT

 1
Common parts
90105-10092
90119-06126
90119-08042
90119-10033
90119-10079
90461-12256
90462-12026
91651-40614
Linked diagrams
1605
